Main Unit, Navigation

Main Unit, Navigation (4D)

NOTE: Save all data on the Flash card before replacing the main unit.

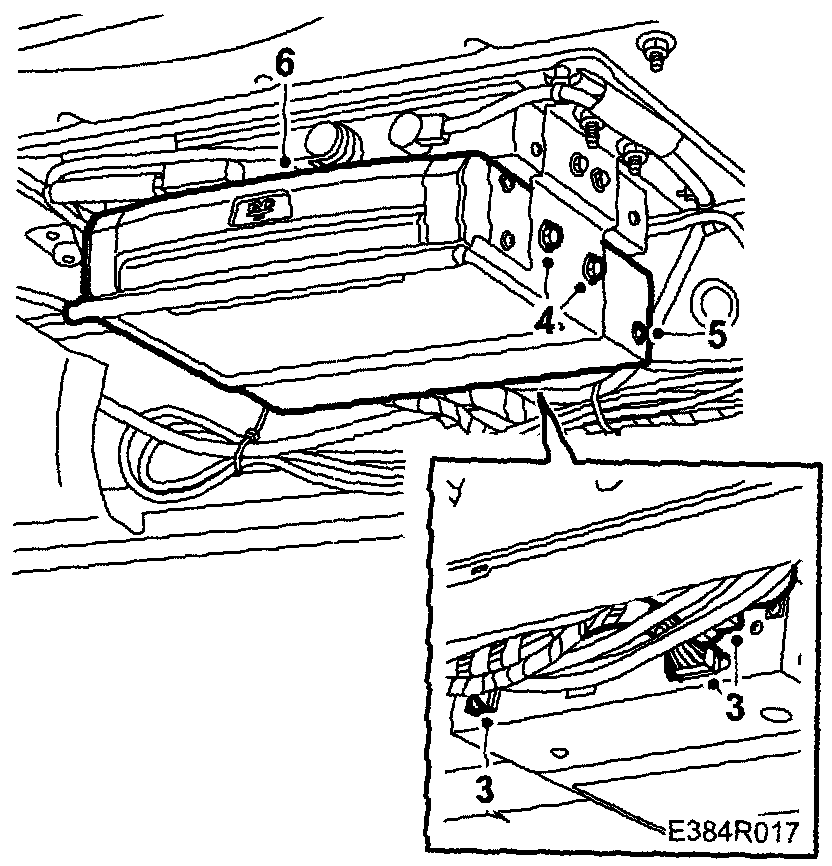

To remove
1. Open the boot lid.
2. Lower the rear seat backrests.
3. Unplug the connectors.







4. Remove the screws from the bracket.
5. Remove the rear side screws in the main unit.
6. Remove the main unit.

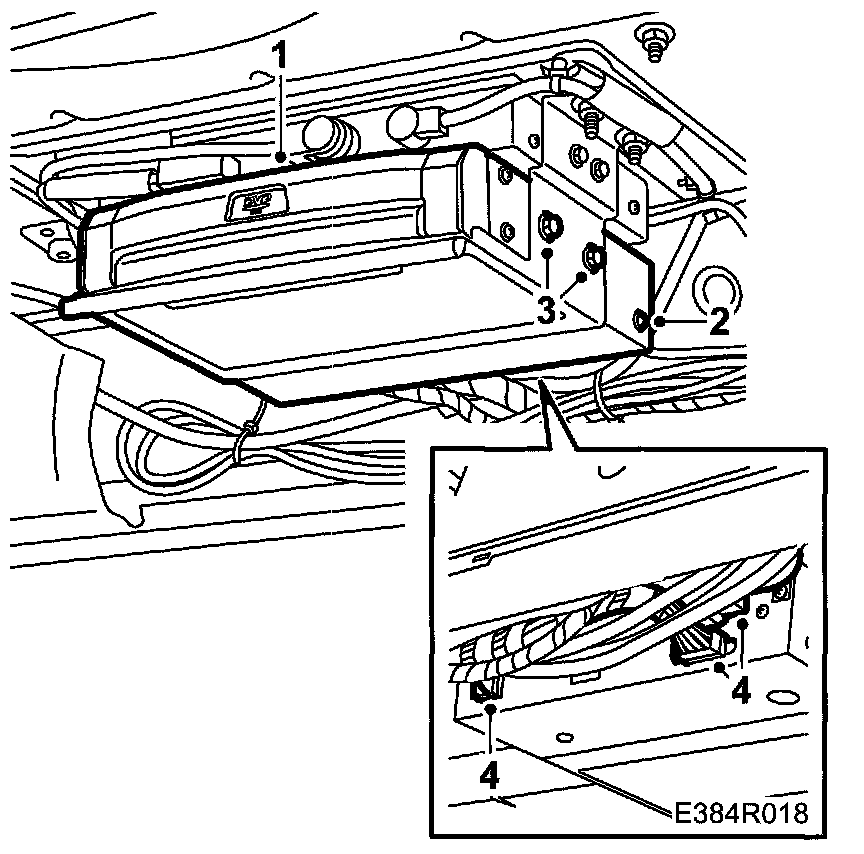

To fit
1. Fit the main unit.







2. Fit the rear side screws in the main unit.
3. Fit the screws in the bracket.
4. Plug in the connectors.
5. Raise the backrests to the upright position.
6. Close the boot lid.
