Immobilization

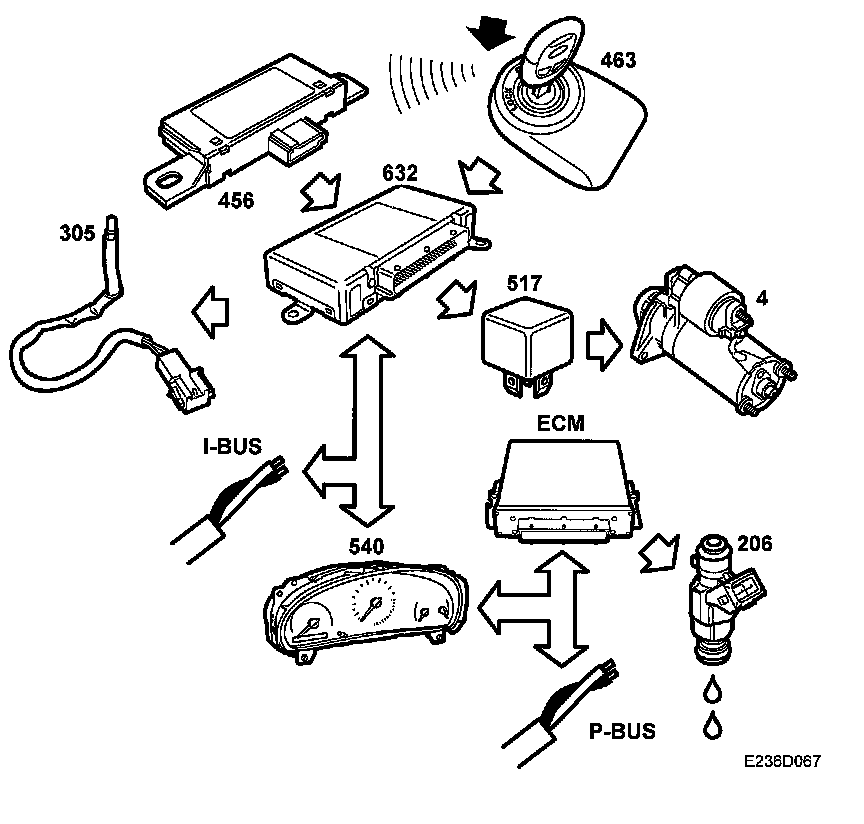

System Overview, Immobilization -
Control module, TWICE (632)
-
Car key
-
Antenna unit, immobilizer (463)
-
Antenna, remote control, central locking system (456)
-
LED, anti-theft alarm (305)
-
Main instrument panel (540)
-
Engine control module (ECM)
-
Injectors (206)
-
Relay,
starter relay (517)
-
Starter motor (4)
