A/C Function (Cars With ACC)

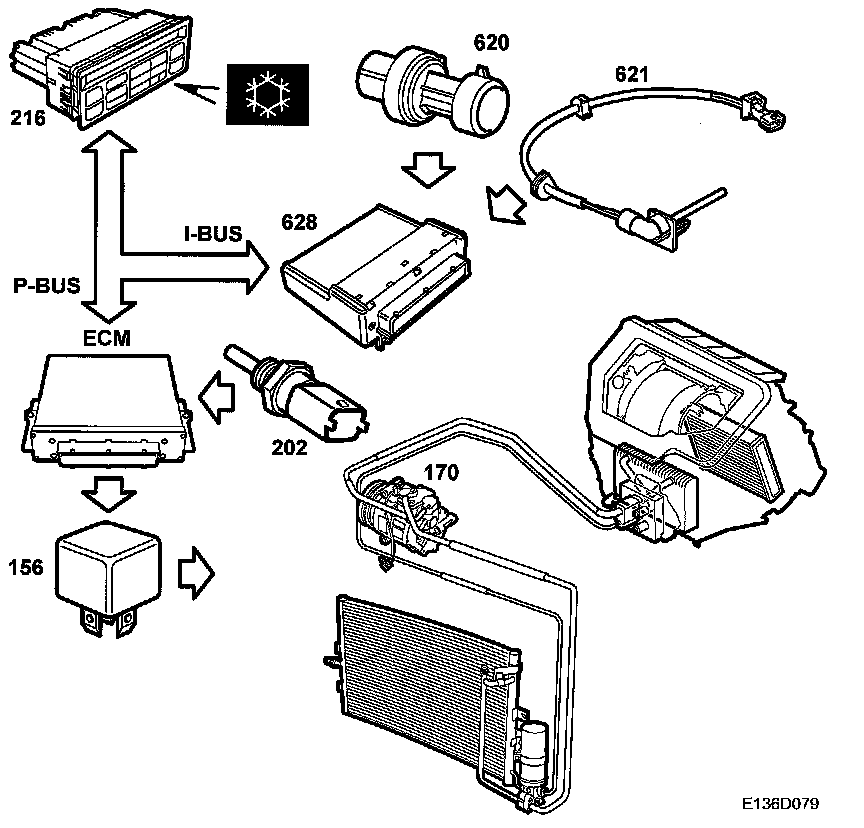

System Overview, A/C Function (Cars With ACC)







- Control module, DICE (628)
- Control module, ACC (216)
- Evaporator temperature sensor, A/C (621)
- Pressure sensor, A/C (620)
- Relay, A/C compressor (156)
- A/C compressor (170)
- Engine management system (430, 589, 595, 600, 608, 655)
- Engine coolant temperature sensor, engine management system (202)
