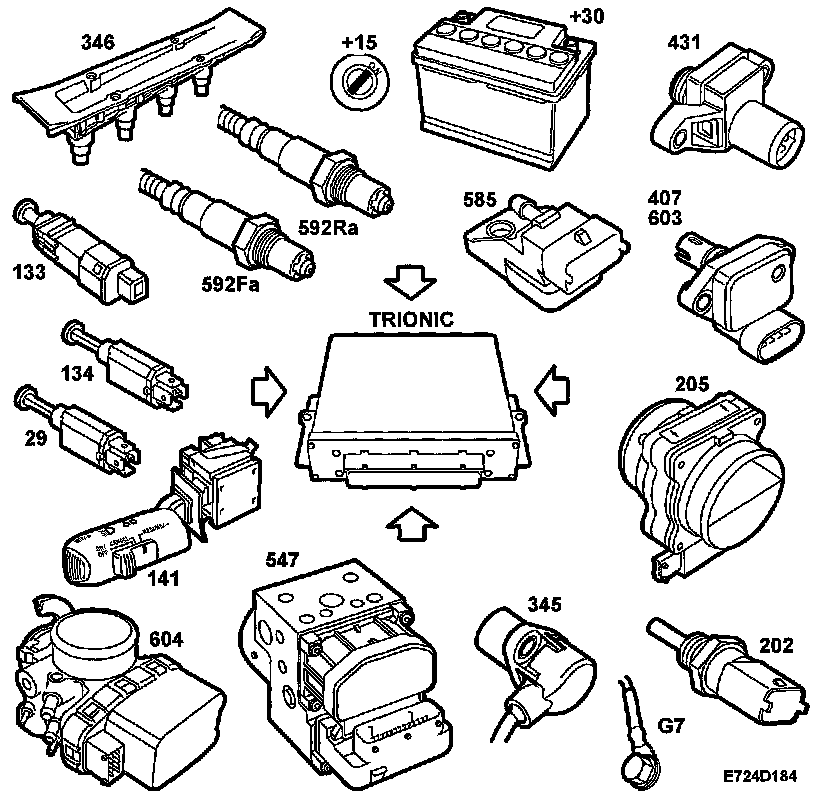

Control Module Inputs



Control Module Inputs







- Power supply +30
- Power supply +15
- Power ground
- Mass air flow sensor (205)
- Manifold absolute pressure sensor (431)
- Charge air absolute pressure sensor (603)
- Intake air temperature sensor (407)
- Tank differential pressure sensor (585)
- Temperature sensor, coolant (202)
- Speed, wire from ABS (547)
- Pedal position sensor
- Cruise control switch
- Pedal switches
- Throttle position sensor
- Oxygen sensor 1 (592Fa)
- Oxygen sensor 2 (592Ra)
- Ignition discharge module (346)
