Anti-Theft Alarm

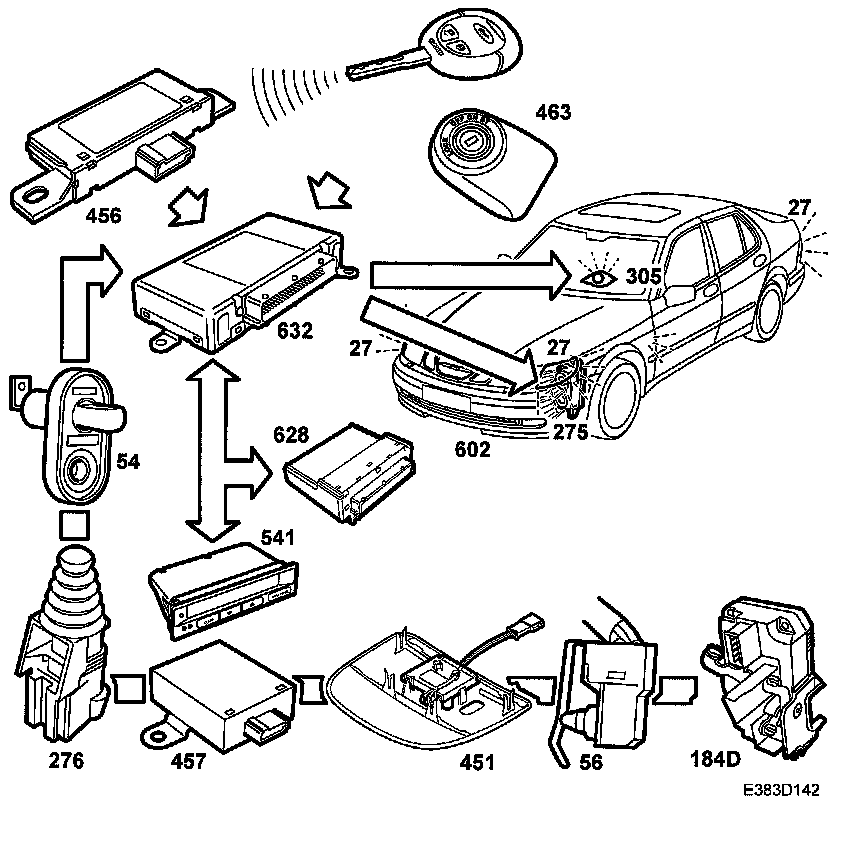

System Overview, Anti-theft Alarm (4D)







- Control module, TWICE (632)
- Car key
- Antenna, remote control (456)
- Door switches (54D, P, RL, RR)
- Switch, luggage compartment lighting (56)
- Bonnet switch, anti-theft alarm (276)
- Glass breakage sensor (451)
- Tilt sensor (457)
- Key switch in driver's door (184D)
- Antenna unit, immobiliser (463)
- LED, anti-theft alarm (305)
- Siren, anti-theft alarm (275)
- Lamps, direction indicators (27)
- Control module, DICE (628)
- SID (541)
