Interior Lighting

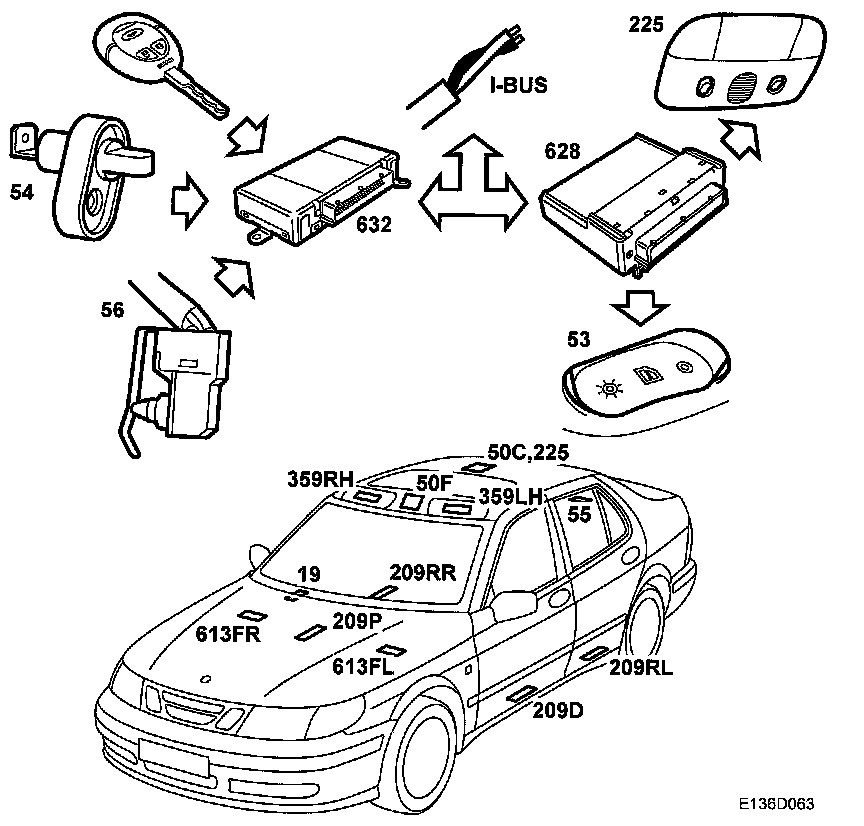

System Overview, Interior Lighting







- Control module, DICE (628)
- Cabin lighting switch (53)
- Dome lamps (50)
- Front/rear reading lamps (225)
- Vanity mirror lamp (359)
- Glove box lamp (19)
- Front floor lighting, lamps (613)
- Courtesy lighting, lamps (209)
- Luggage compartment lighting switch (56)
- Luggage compartment lamp (55)
- Control module, TWICE (632)
- Door switches (54)
- Car key
