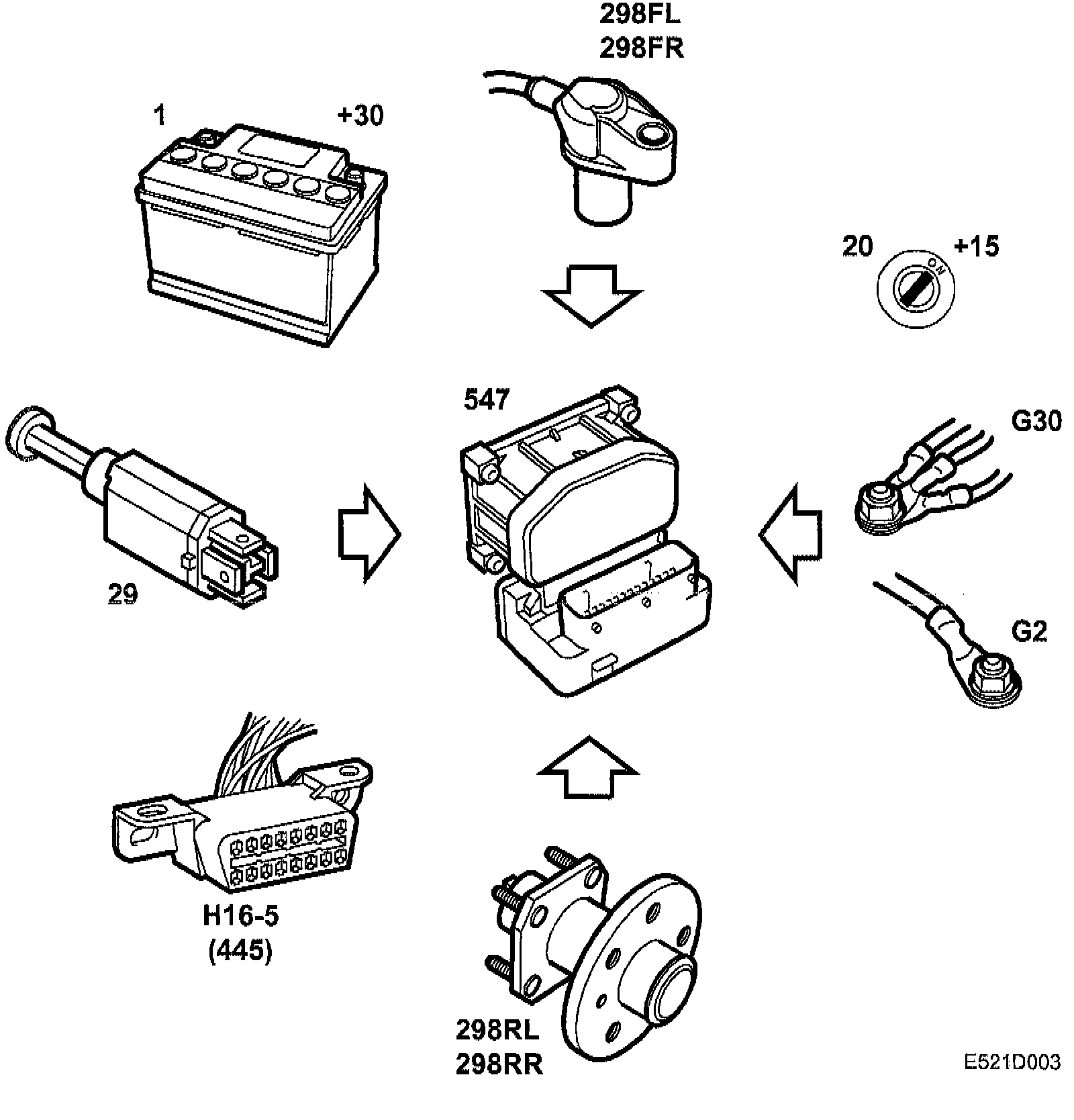

Control Module Inputs



Control Module Inputs






- Voltage (+30 circuit) (1).
- Voltage (+15 circuit) (20).
- Ground (G30, G2).
- Front-wheel sensors (298).
- Rear-wheel sensors (298).
- Brake-light switch (29).
- Data link (445).
