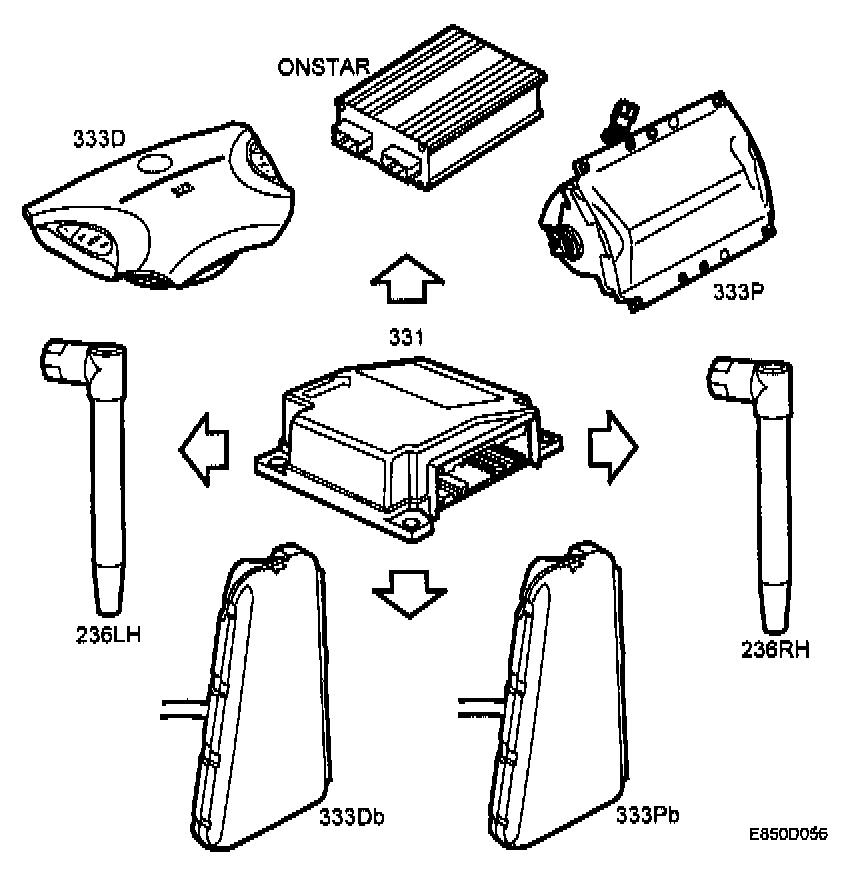

Control Module Outputs




Control Module Outputs







- Driver airbag, 333D
- Passenger airbag, 333P
- Seat-belt tensioner, left, 236LH
- Seat-belt tensioner, right, 232RH
- Side airbag, driver, 333Db
- Side airbag, passenger, 333Pb
- Activated detonator (also bus information, Control module bus inputs)
