System Relay: Service and Repair

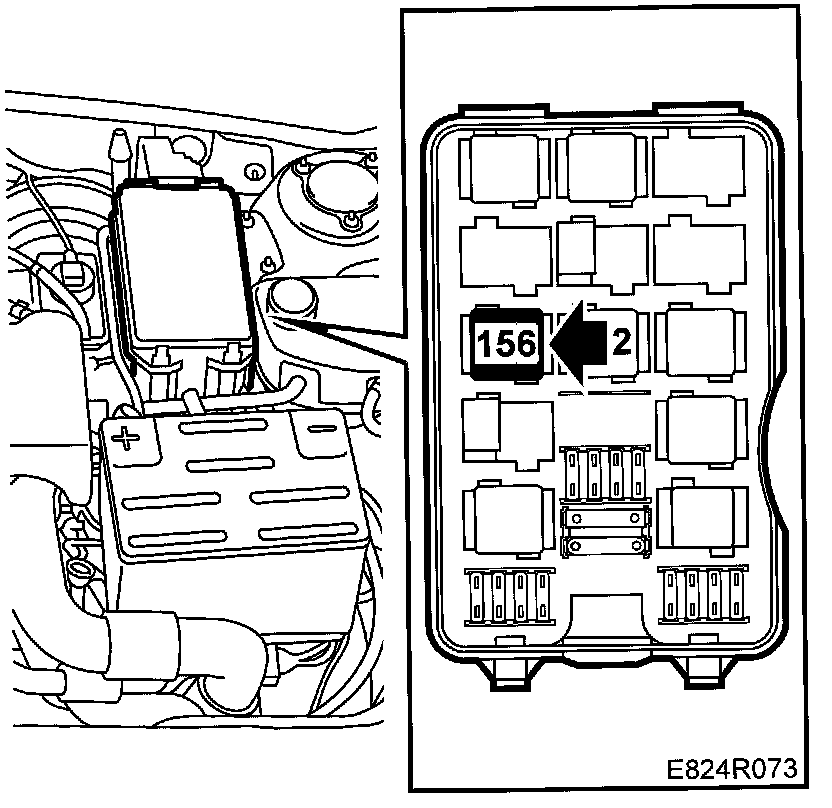

Relay, A/CTo remove 1.
Take the cover off the box for relays and fuses in the engine bay.
2.
Remove the relay by carefully moving the catch aside and then pulling the relay straight up.

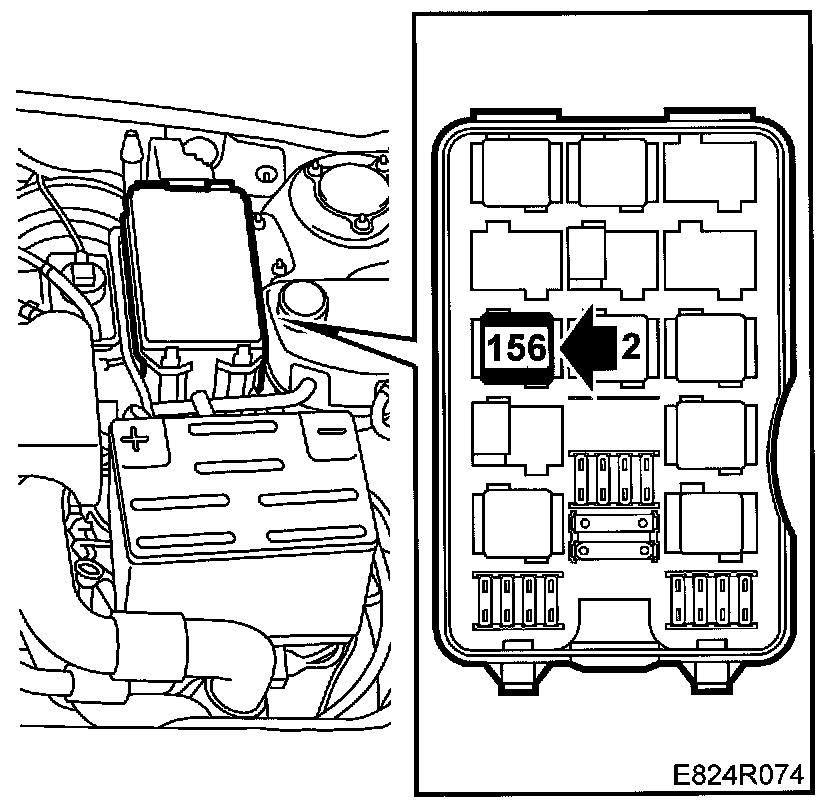

To fit 1.
Spray the contacts in the relay holder with Kontakt 61 contact cleaner (part no. 30 04 520).
2.
Fit the relay.
3.
Put the cover back on.
