Air Flow Meter/Sensor: Service and Repair

Mass Air Flow Sensor, V6

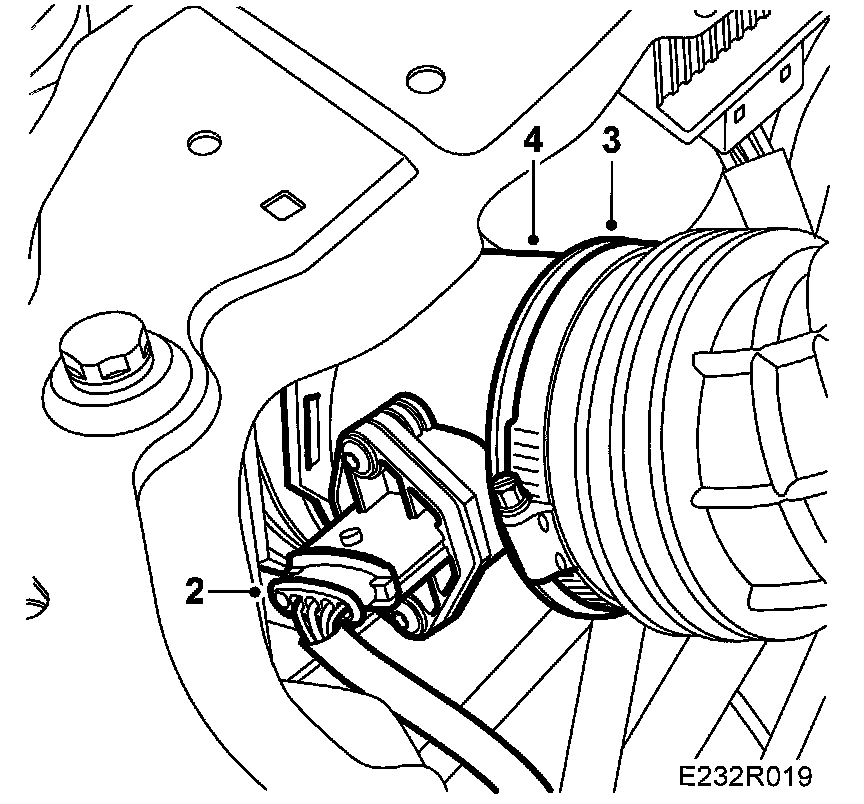

To remove
1. Unplug the mass air flow sensor.

2. Loosen the hose clips on the connecting hoses.
3. Remove the mass air flow sensor.

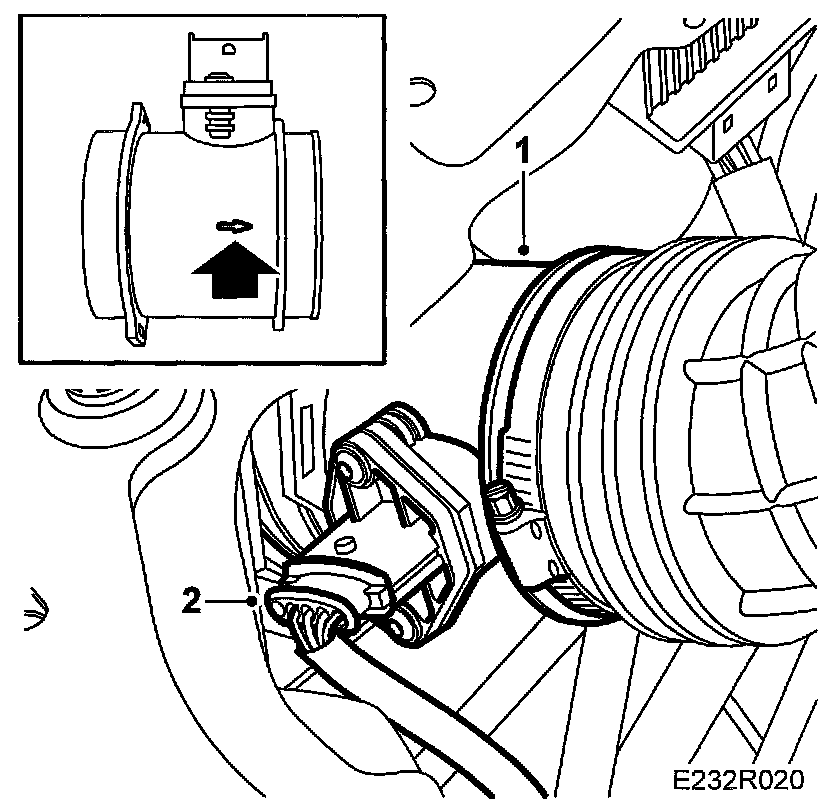

To fit

IMPORTANT: The mass air flow sensor must be fitted in the intake air pipe with the arrows in the direction of flow.

1. Attach the mass air flow sensor and tighten the hose clips on the connecting hoses.

2. Plug in the mass air flow sensor.
