Main Components

Main Components

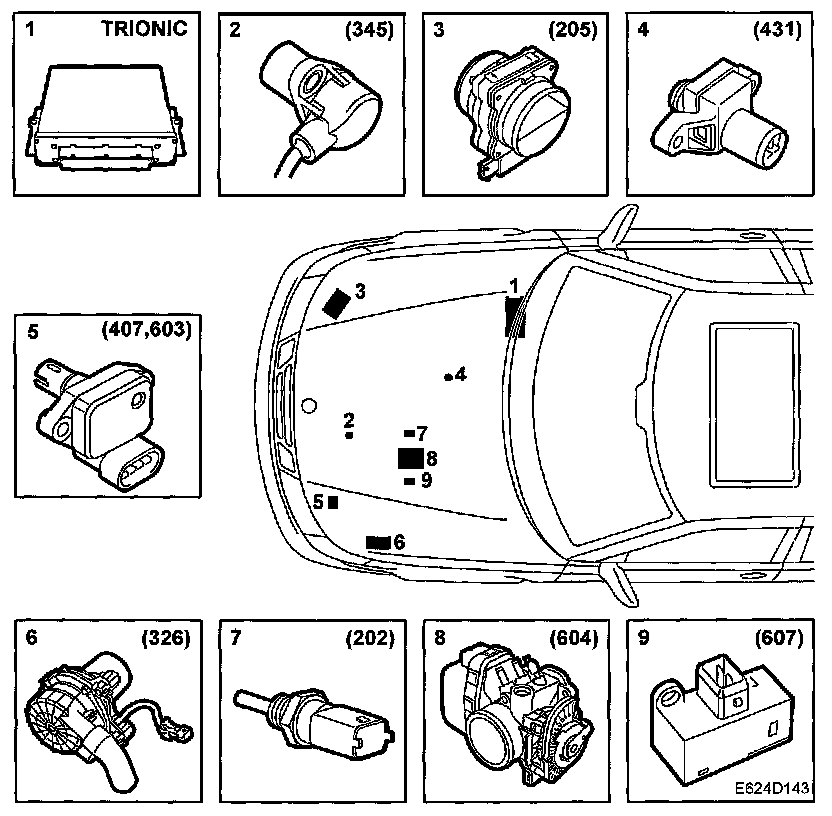

1. Control module (608)
2. Crankshaft position sensor (345)
3. Mass air flow sensor (205)
4. Manifold absolute pressure sensor (431)
5. Charge air absolute pressure sensor (603
Intake air temperature sensor (407)
6. Secondary air injection pump, SAI (326
7. Temperature sensor, coolant (202)
8. Throttle body (604)
9. Limp-home solenoid (607)
10. Switch, cruise control (141)

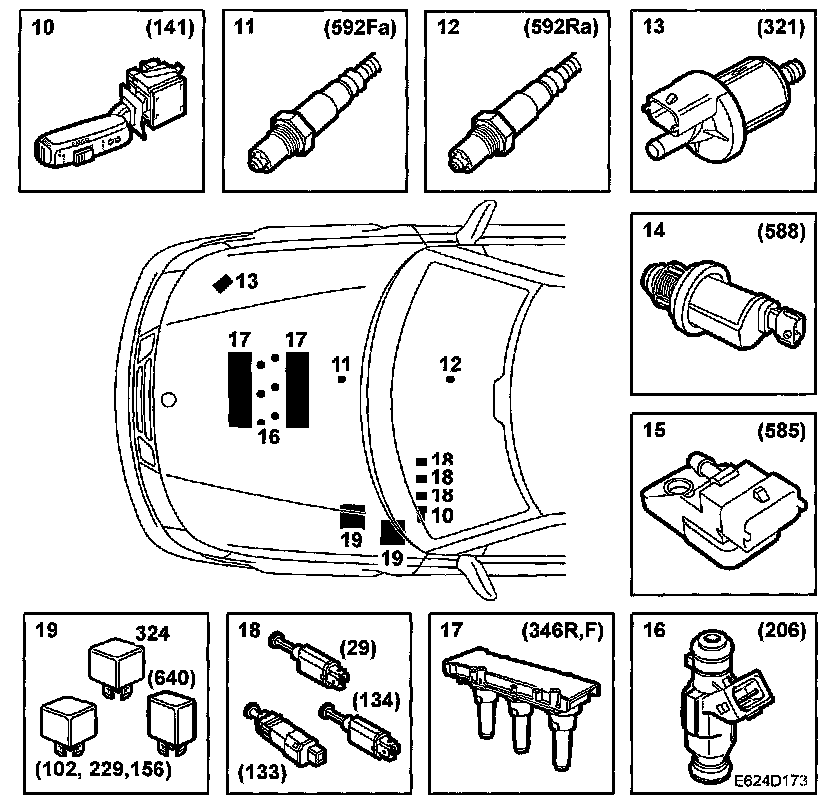

11. Oxygen sensor 1 (592Fa)
12. Oxygen sensor 2 (592Ra)
13. EVAP canister purge valve (321)
14. EVAP shut-off control valve (588)
15. EVAP pressure sensor (585)
16. Injectors (206)
17. Ignition discharge modules (346 F/R)
18. Clutch pedal switch (133)
Brake pedal switch (134)
Brake light switch (29)
19. Main relay (229)
Fuel pump relay (102)
Relay, limp-home solenoid (640)
SAI relay (324)
A/C relay (156)
(The A/C relay is mounted on the main relay board under the bonnet)
