Ignition Discharge Module (346R)

Ignition Discharge Module, Rear

IMPORTANT: Before replacing the ignition discharge module, carry out Extended ignition discharge module diagnose for Trionic 7.

To remove







1. Remove the engine cover.

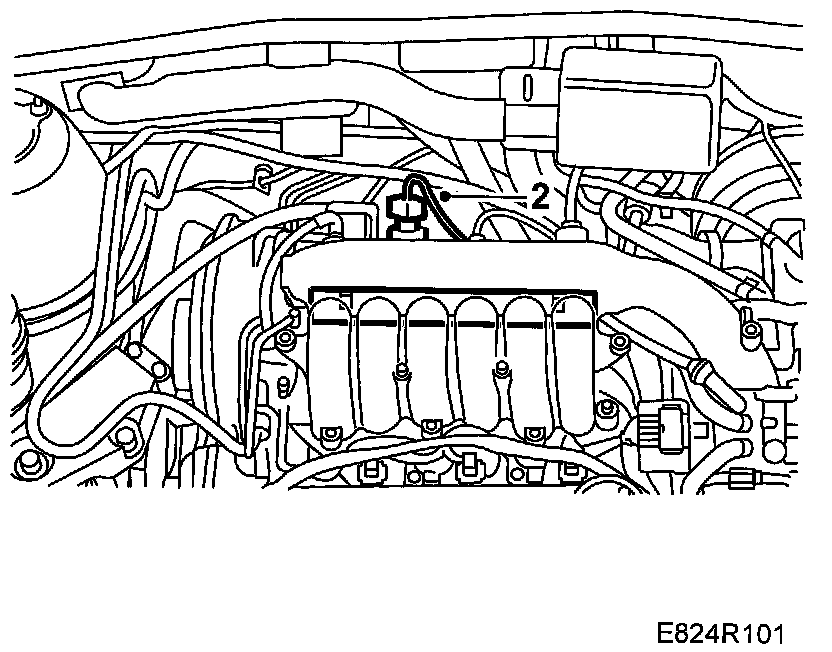

2. Unplug the connector to the pressure sensor on the intake manifold.

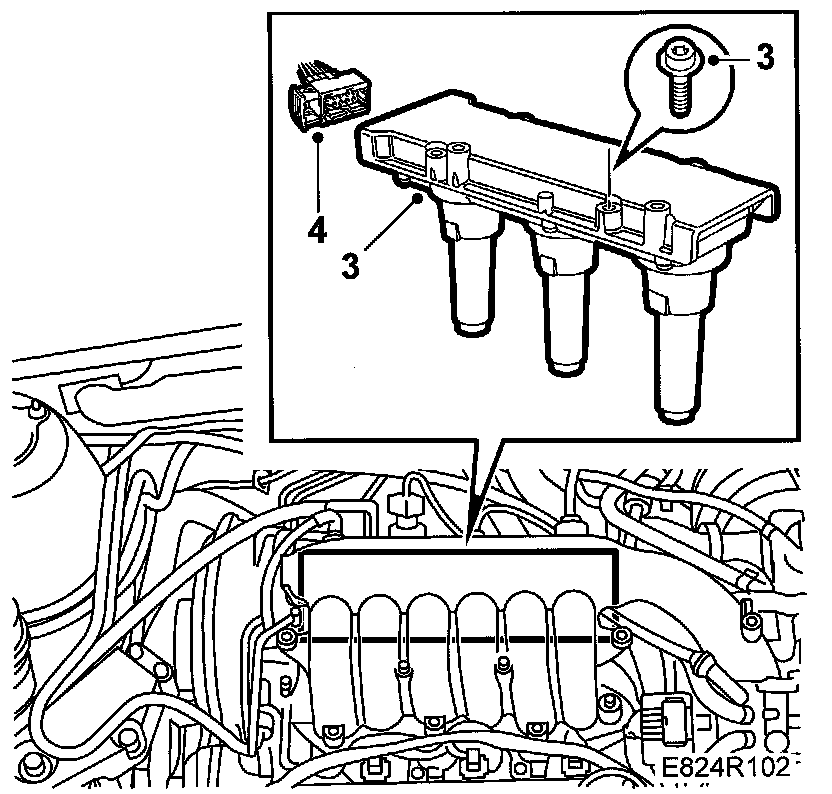

3. Remove the ignition discharge module.







4. Unplug the ignition discharge module connector.

To fit







1. Coat the rubber seals with Krytox (part No. 30 19 312).
2. Spray the connectors with Kontakt 61 (part no. 30 04 520). Plug the connectors into the ignition discharge module.
3. Fit the ignition discharge module.

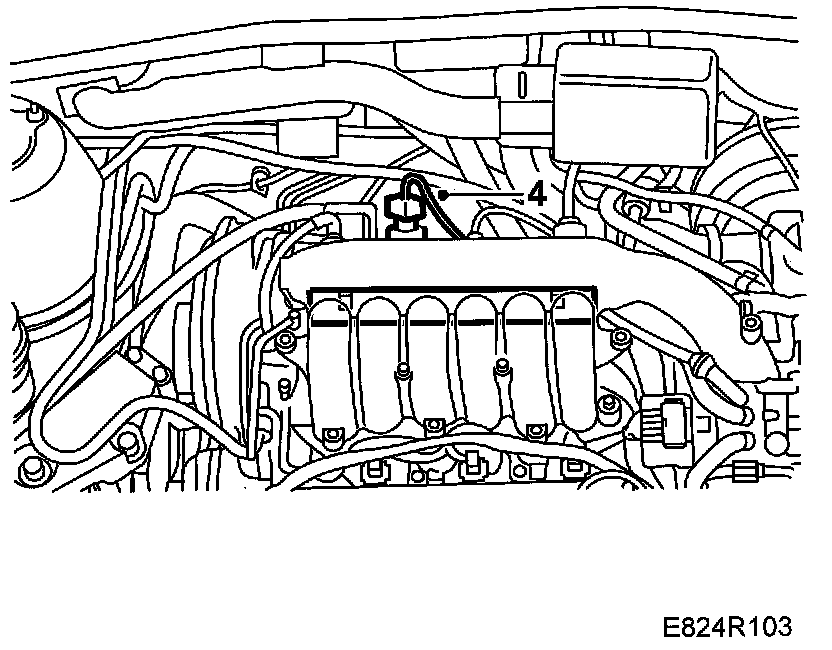

4. Plug in the connector to the pressure sensor on the intake manifold.







5. Fit the cover.
