Spark Plug: Service and Repair
Spark PlugsTo remove 1.
Remove the ignition discharge modules as directed in Ignition discharge module, front and Ignition discharge module, rear.

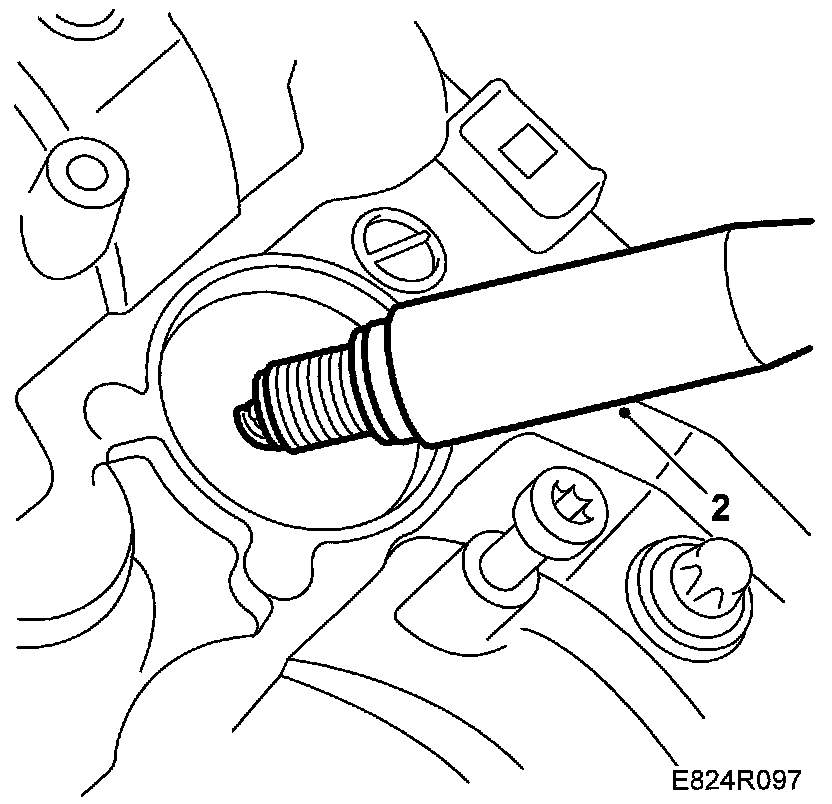

2.
Remove the
spark plugs.

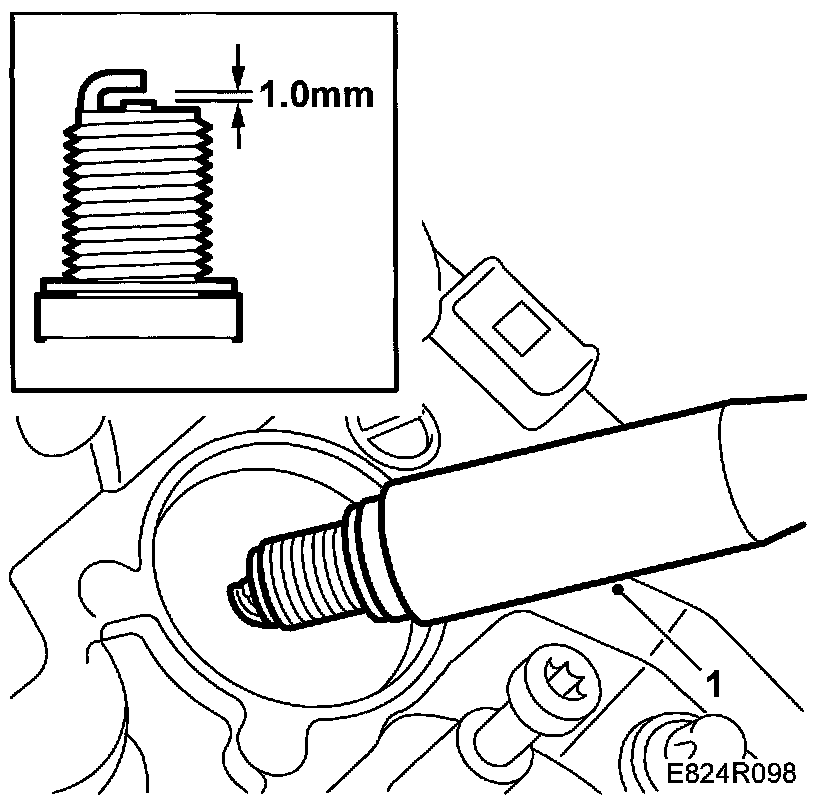

To fit 1.
Check that the
spark plug gap is
1.0-1.1 mm.
Apply Molykote 1000 (part no. 30 20 971) or equivalent to the
spark plug threads.
Fit the
spark plugs.
Tightening torques Spark plug 27 Nm (20 lbf ft)
