Brake Light Switch: Testing and Inspection

Inspection

If the stop light switch does not operate properly (or if it does not stop at the specified position), replace with a new one.

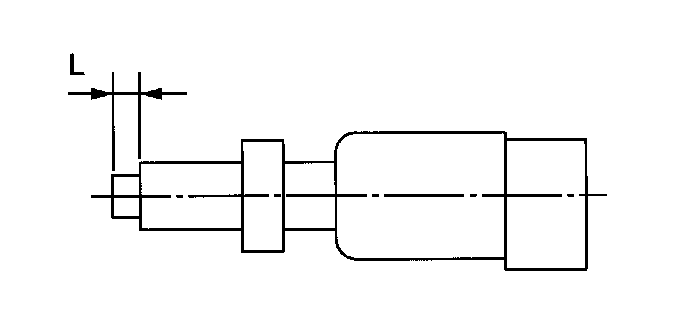

Specified position L: 2 mm (0.079 inch)

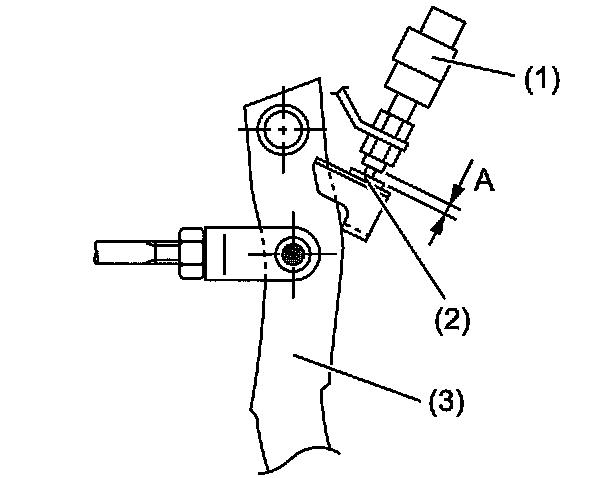

Measure the clearance between threaded end of stop light switch and stopper.

Important: Be careful not to rotate stop light switch.

Stop light switch clearance A: 0.3 mm (0.012 inch)





(1) Stop light switch
(2) Stopper
(3) Brake pedal

If it is not within specified value, adjust it by adjusting position of stop light switch.

Important: Be careful not to rotate the stop light switch.
