Oil Charge Pipe

Oil Charge
REMOVAL
Remove the air intake chamber. (Saab 9-2X 2.5i Linear)
Remove intercooler. (Saab 9-2X 2.0T Aero)
Remove the oil charge pipe, and remove the O-ring from the flange face.

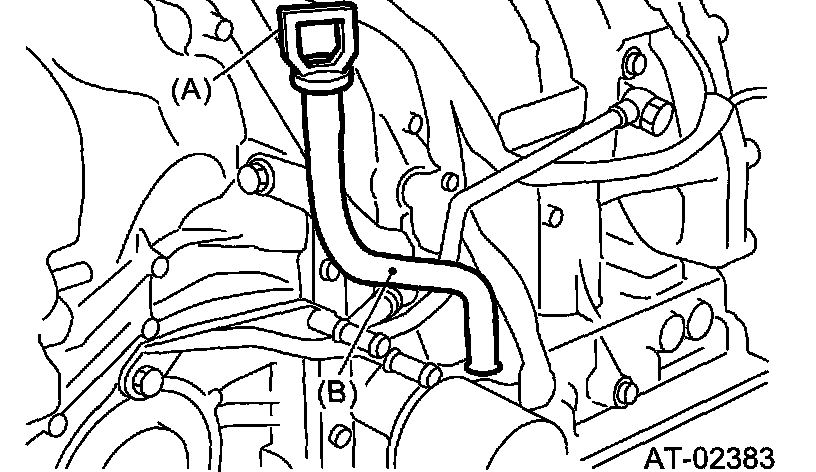

(A) Oil level gauge
(B) Oil charge pipe

INSTALLATION
Install the oil charge pipe with new O-ring.
Tightening torque: 41 Nm (4.2 kgf-m, 30.4 ft. lbs.)

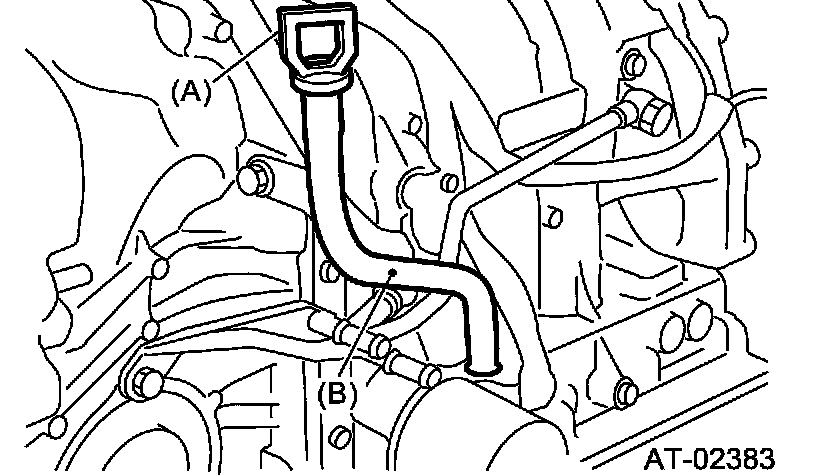

(A) Oil level gauge
(B) Oil charge pipe
Install the air intake chamber. (Saab 9-2X 2.5i Linear)
Install intercooler. (Saab 9-2X 2.0T Aero)
