Main Unit Inputs

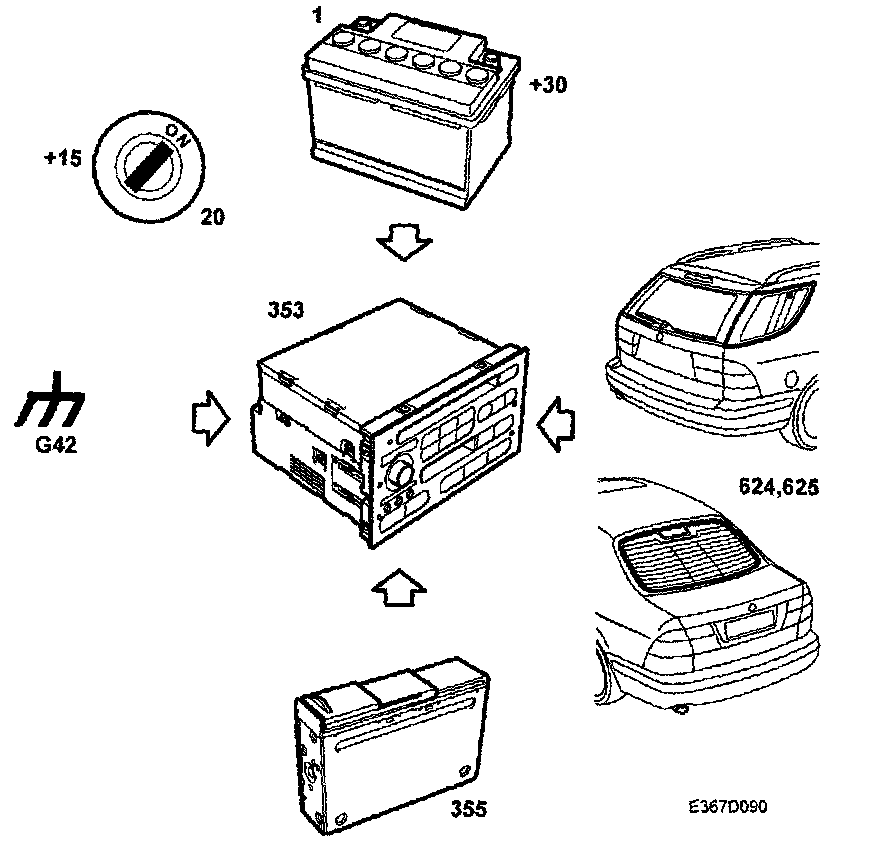

Main Unit Inputs






^ Power supply +15(20)
^ Power supply +30(1)
^ Ground (G42)
^ Antenna signal, HF (624, 625)
^ CD changer,line input right-hand channel (+/-) (355)
^ CD changer,line input left-hand channel (+/-) (355)
