P1570

DTC P1570 ANTENNA

DTC DETECTING CONDITION:
Faulty antenna

Wiring Diagram:

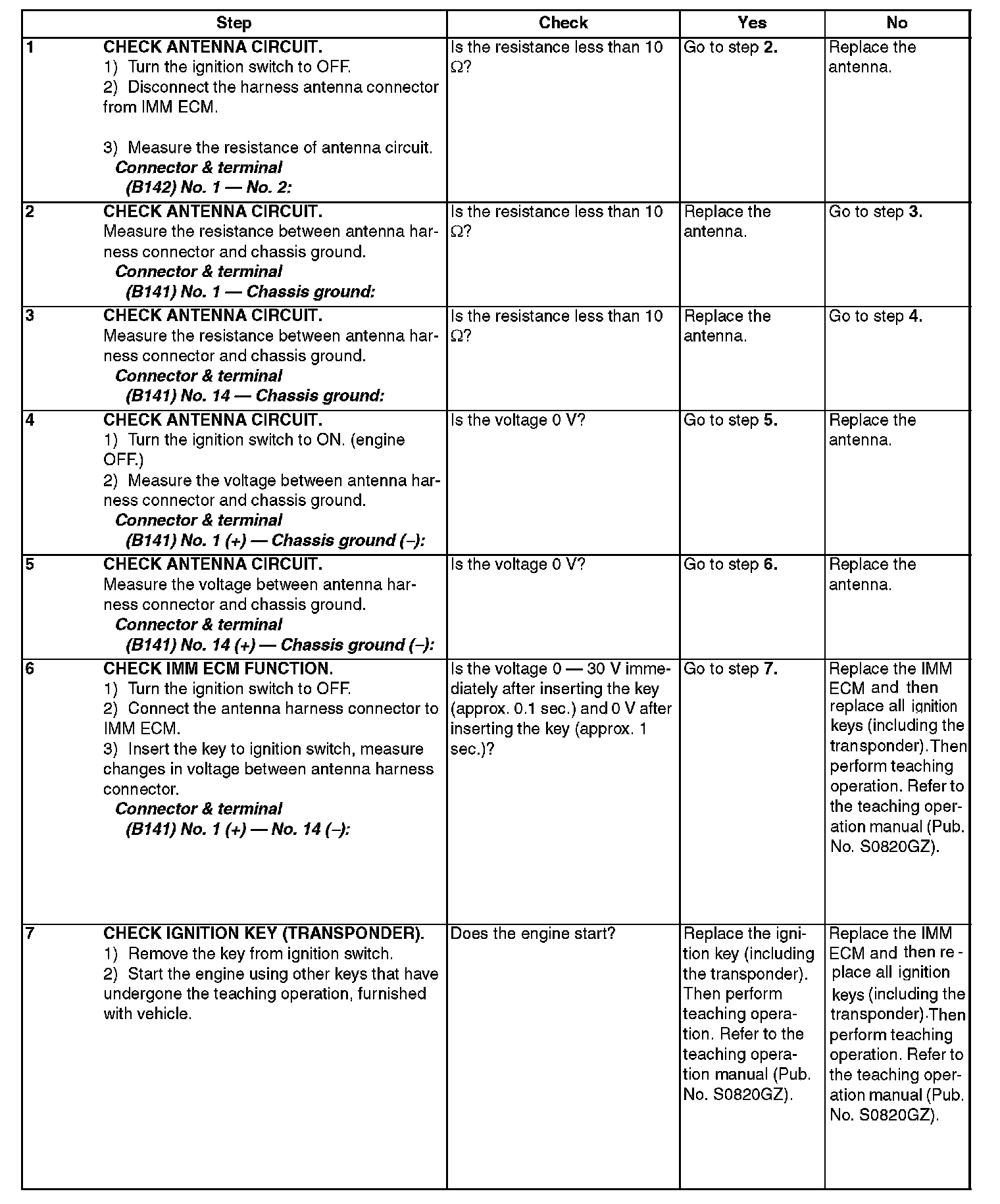

Step 1 - 7:

NOTE: When performing repairs on the Subaru Anti-Theft Systems, reference is made to the "teaching operation manual". This reference manual is only available in the support documentation made available with the two individual scan tools for Subaru vehicles. The Subaru Select Monitor III and the HDS(Hitachi Diagnostic System), which is the generic industry tool. This information is not supplied or available separately.
