P1572
DTC P1572 EGI IMMOBILIZER COMMUNICATION (EXCEPT ANTENNA CIRCUIT)DTC DETECTING CONDITION:Communication failure between IMM ECM and ECM

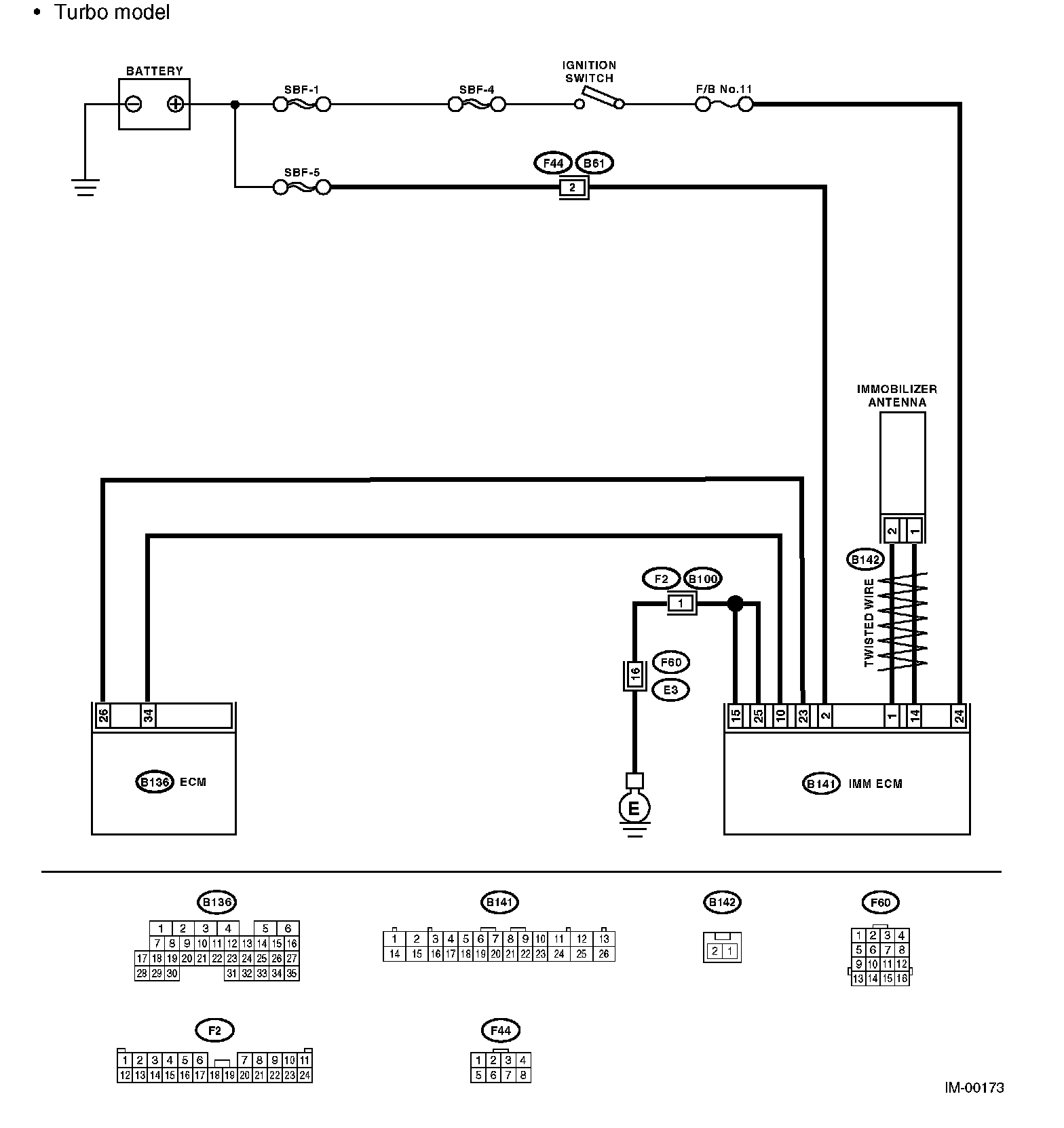

Wiring Diagram - Turbo Model:
Wiring Diagram - STI Model:

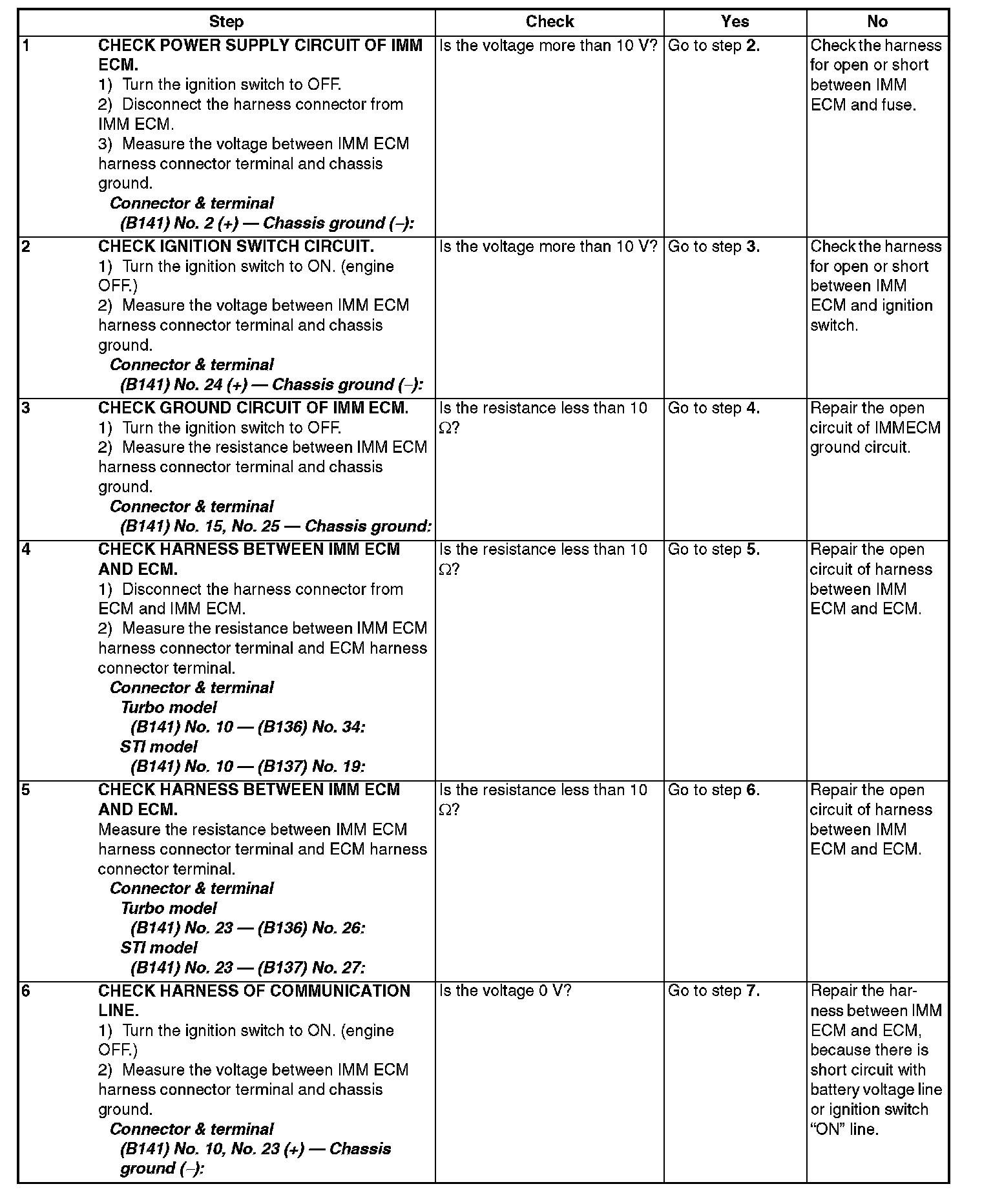

Step 1 - 6:

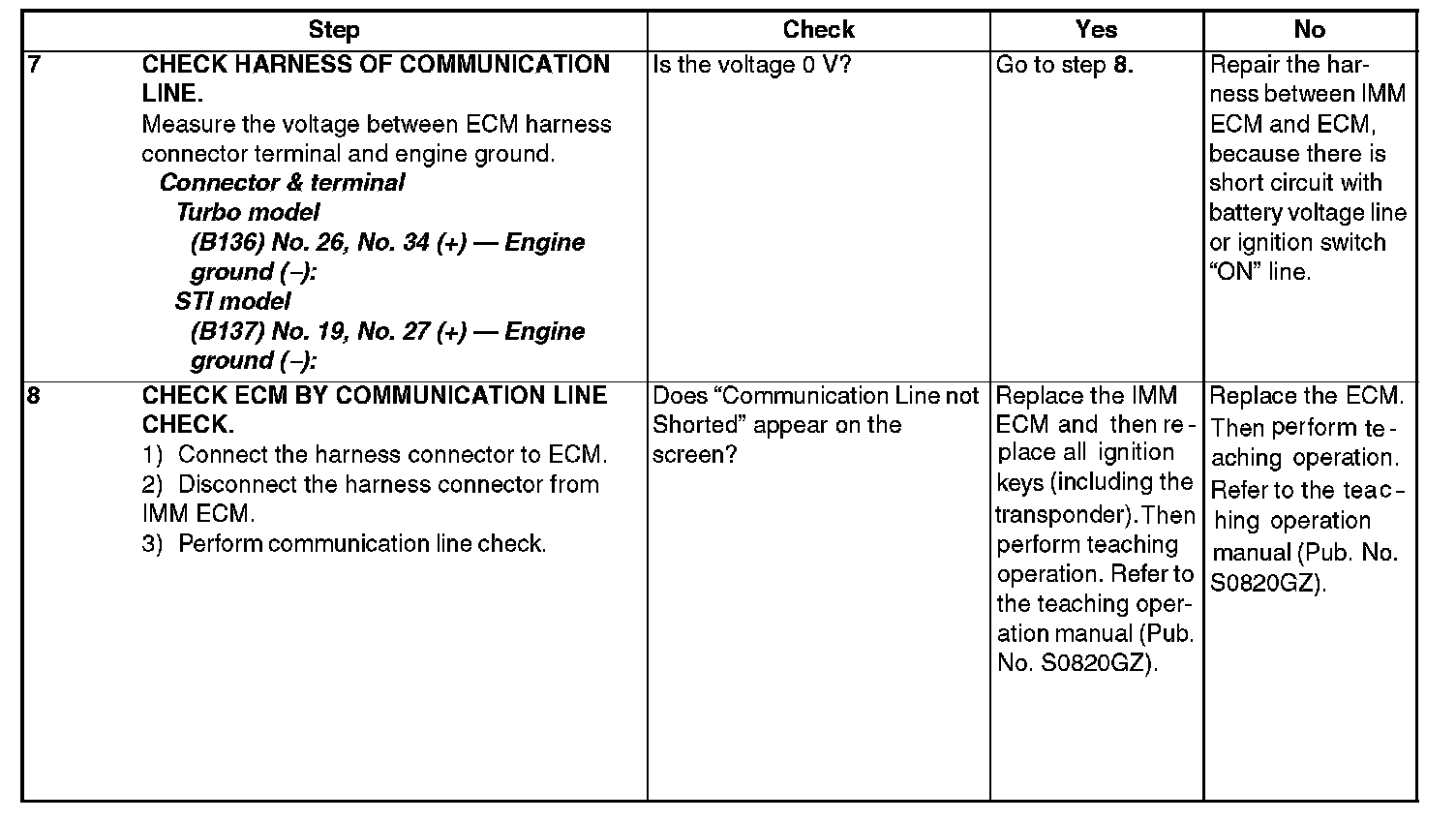

Step 7 - 8:
