Air Injection Control Valve: Service and Repair

Secondary Air Combi Valve

REMOVAL

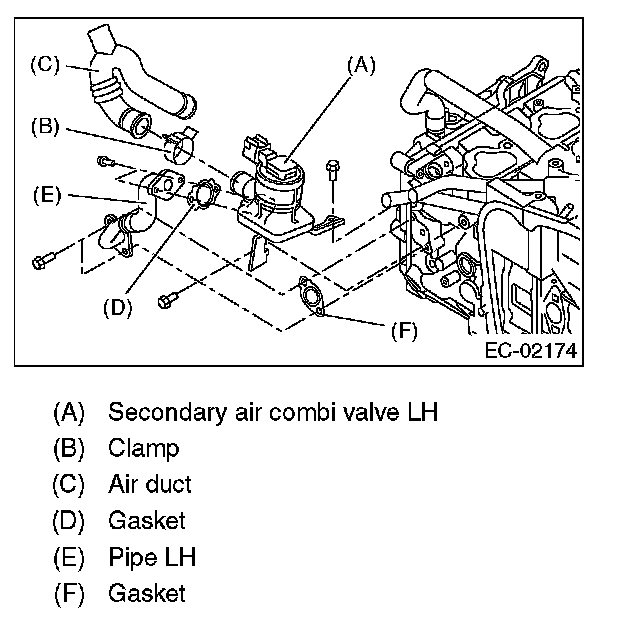

SECONDARY AIR COMBI VALVE LH
1. Disconnect the ground cable from battery.
2. Remove the intercooler.
3. Disconnect the connector from secondary air combi valve LH.
4. Disconnect the air duct.
5. Disconnect the pipe LH.




6. Remove the secondary air combi valve LH.

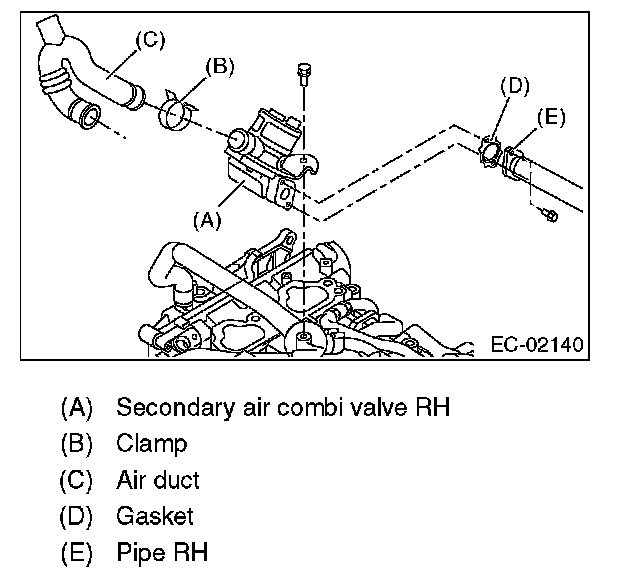

SECONDARY AIR COMBI VALVE RH
1. Disconnect the ground cable from battery.
2. Remove the intercooler.
3. Remove the secondary air combi valve LH.
4. Remove the intake manifold.
5. Disconnect the connector from secondary air combi valve RH.
6. Disconnect the pipe RH.




7. Remove the secondary air combi valve RH.

INSTALLATION

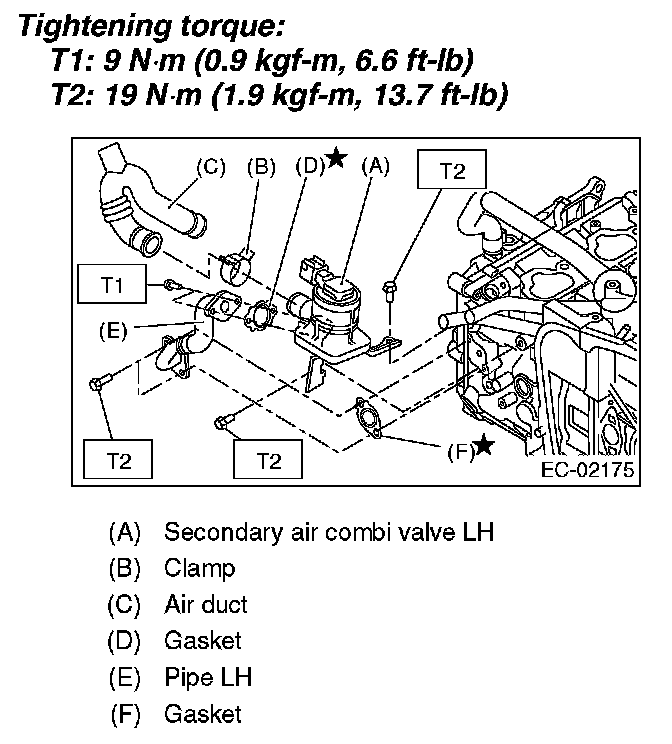

SECONDARY AIR COMBI VALVE LH
Install in the reverse order of removal.

NOTE: Use a new gasket.

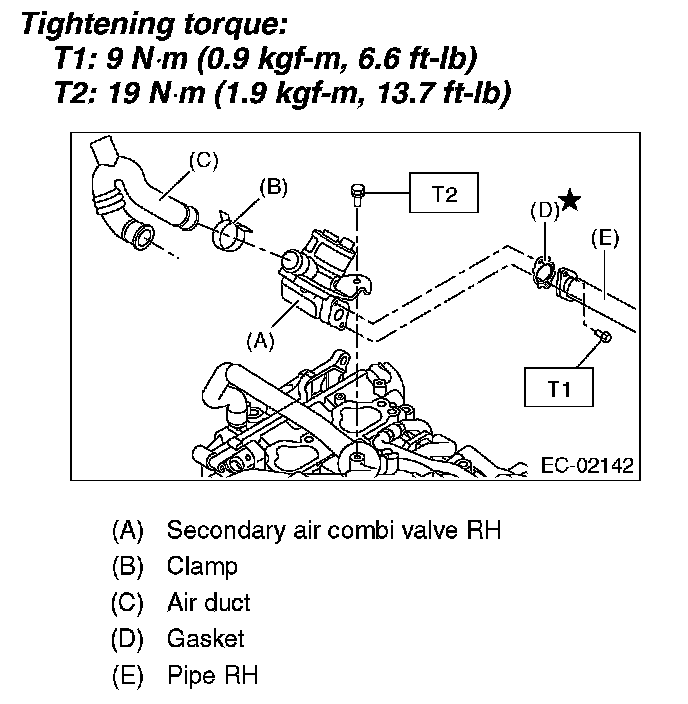

SECONDARY AIR COMBI VALVE RH
Install in the reverse order of removal.

NOTE: Use a new gasket.
