Evaporative Check Valve: Service and Repair
Vent ValveREMOVALWARNING:
^ Place"NO FIR" signs near the working area.
^ Be careful not to spill fuel. 1.
Remove the
fuel tank.
2.

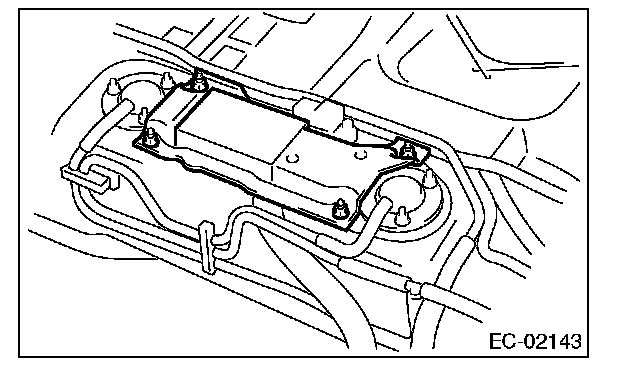

Remove the protector cover.
3.

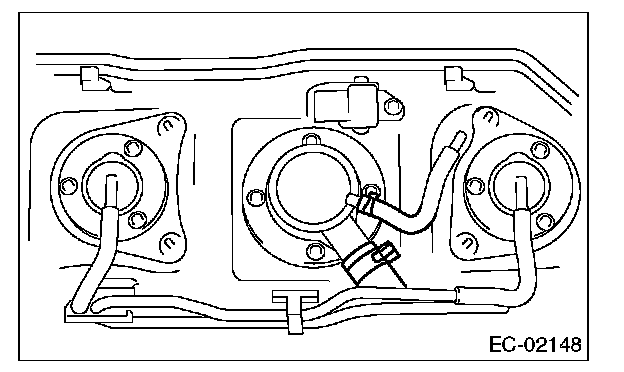

Remove the clips, and disconnect the hoses from vent valve.
4.

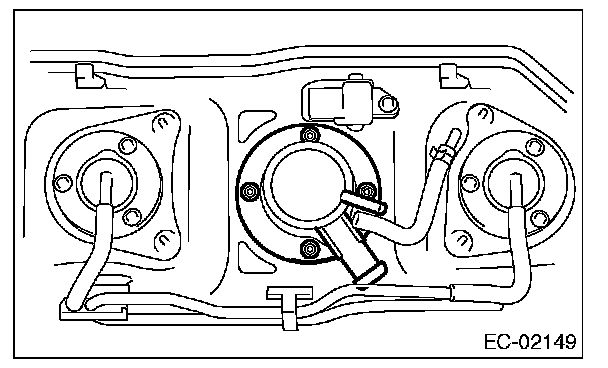

Remove the nuts and then remove the vent valve.

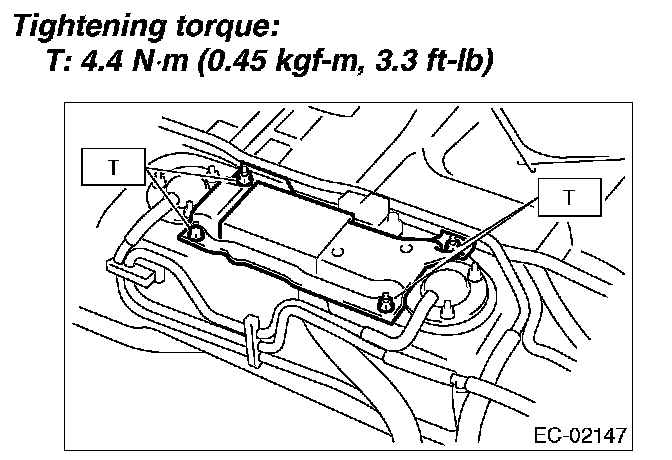

INSTALLATIONInstall in the reverse order of removal.

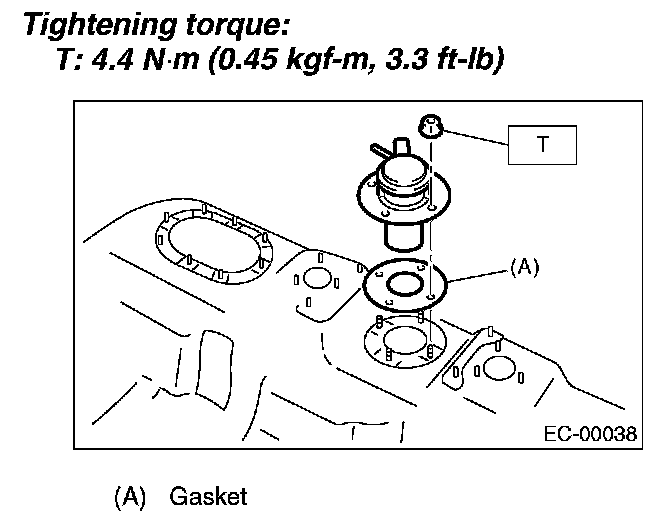

NOTE: Replace the gasket with a new one.
