PCV Valve Hose: Service and Repair
PCV Hose AssemblyREMOVAL
CAUTION:
Removal is not allowed except for the damage of PCV hose, diagnosis connector and PCV valve.
1. Remove the intake manifold.

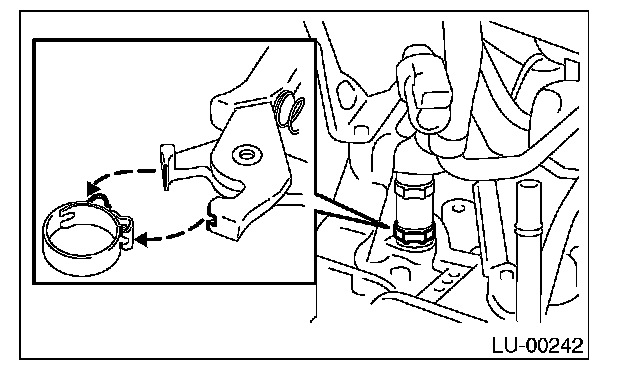

2. Clip the protrusion of clamp after aligning the concave portion of ST with protrusion of clamp, and then unlock the lock.
3. Remove the PCV hose assembly.
ST 18353AA000 CLAMP PLIERS
INSTALLATION
NOTE: Replace the clamp with a new one.
1. Install the PCV hose assembly, and then lock the clamp with protrusion of clamp clipped by pliers.
ST 18353AA000 CLAMP PLIERS
2. Install the intake manifold.
