Air Injection Manifold: Service and Repair
Intake Manifold, Secondary Air InjectionTo Remove 1.
Remove Heat shield between engine and
turbocharger.
2.

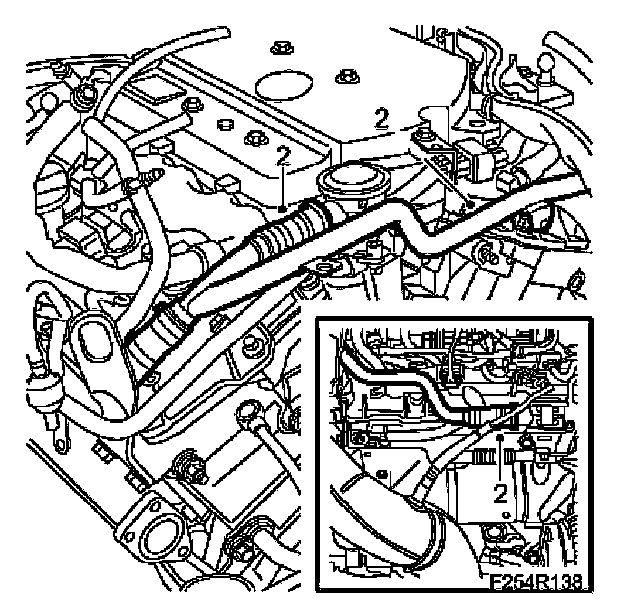

Undo the quick couplings of the secondary air pipe and lift away the intake manifold.
To Fit 1.

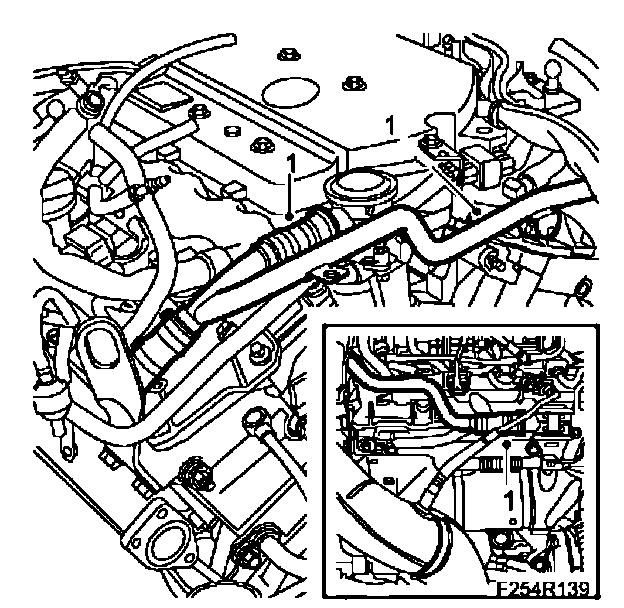

Position the secondary air pipe and make sure the quick couplings engage.
2.
Fit Heat shield between engine and
turbocharger.
