Information Display (SID)



Bus message, Information Display (SID)

For further information on the bus, see System overview, bus and diagnostic communication, petrol.

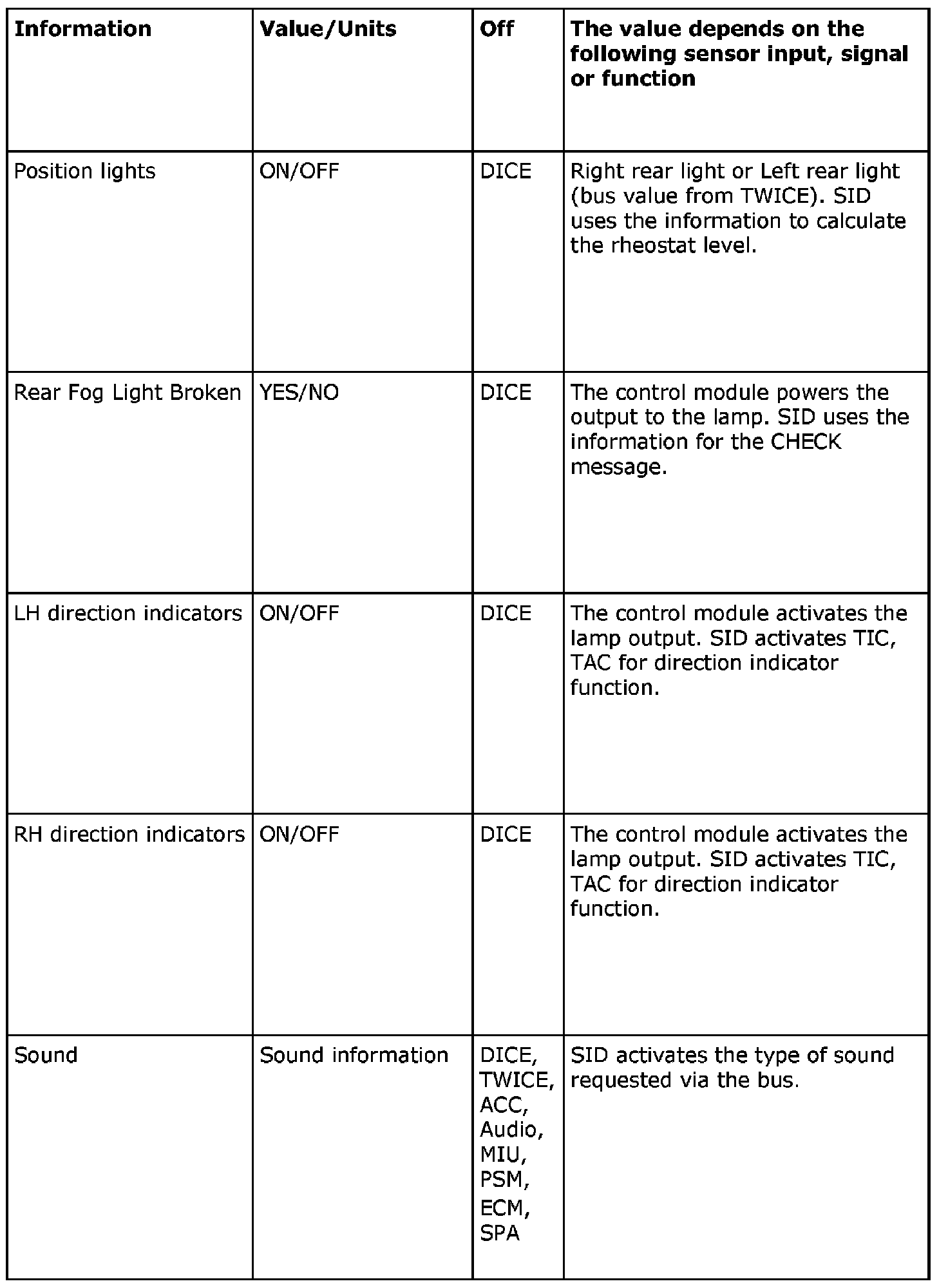

SID uses the following information

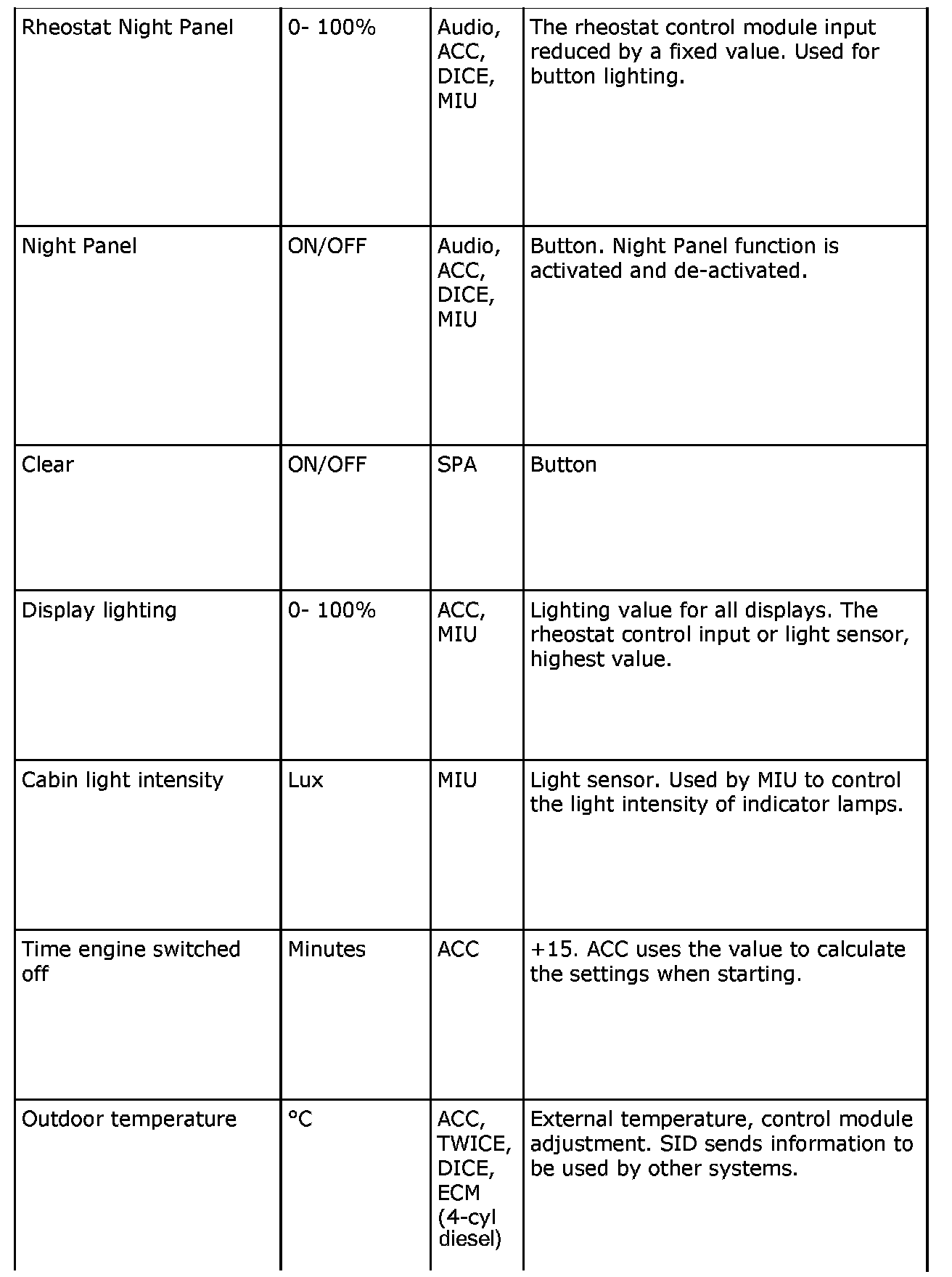

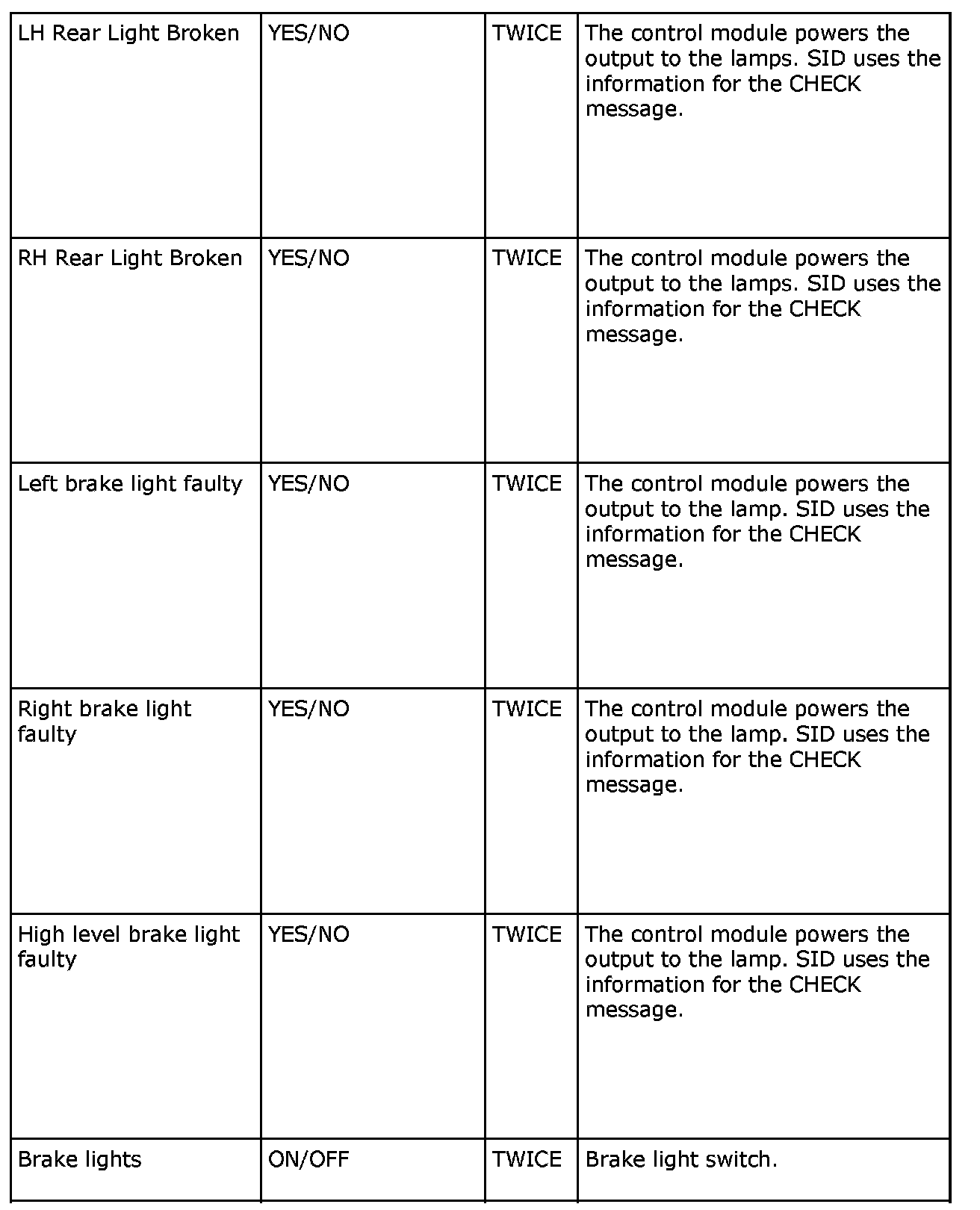

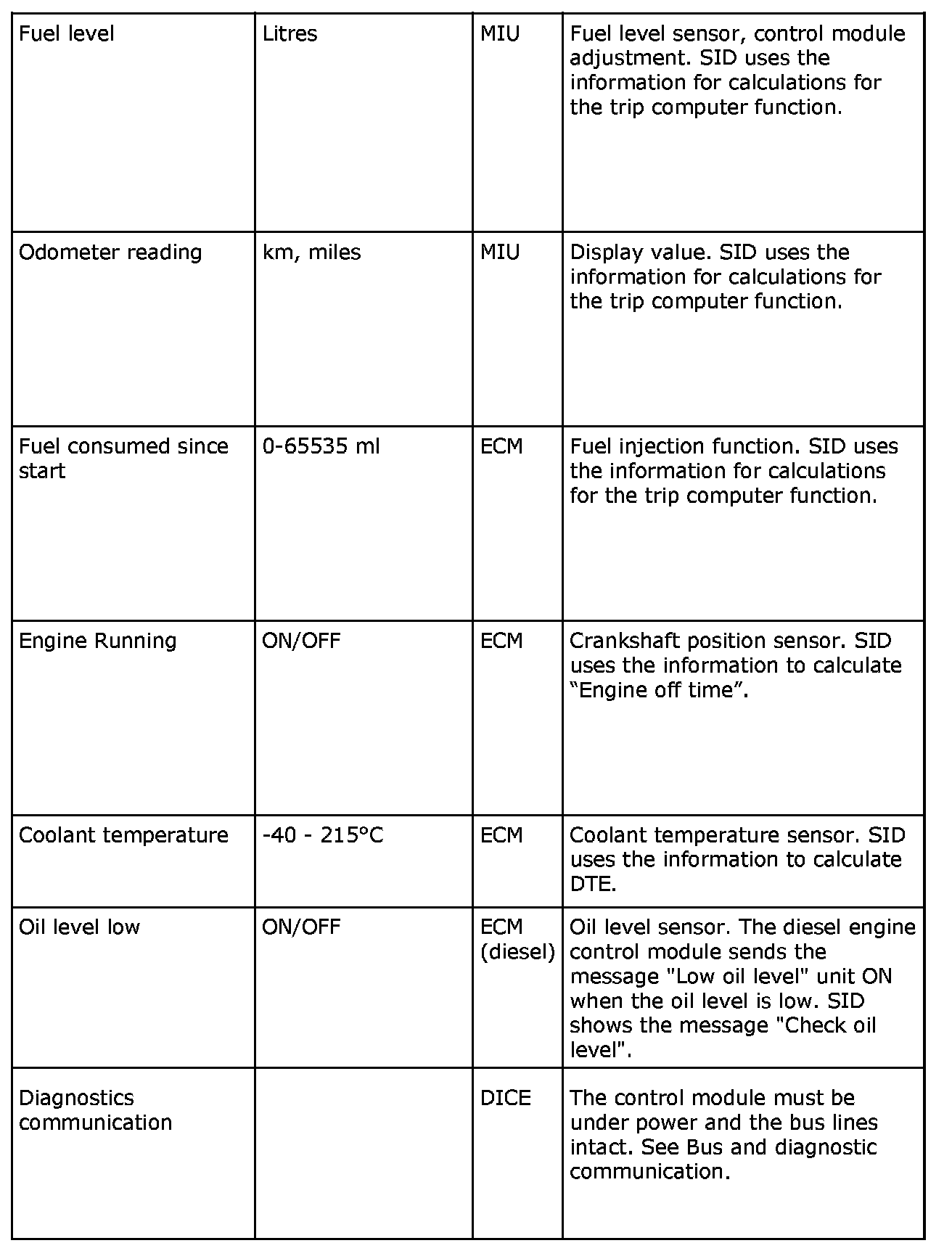

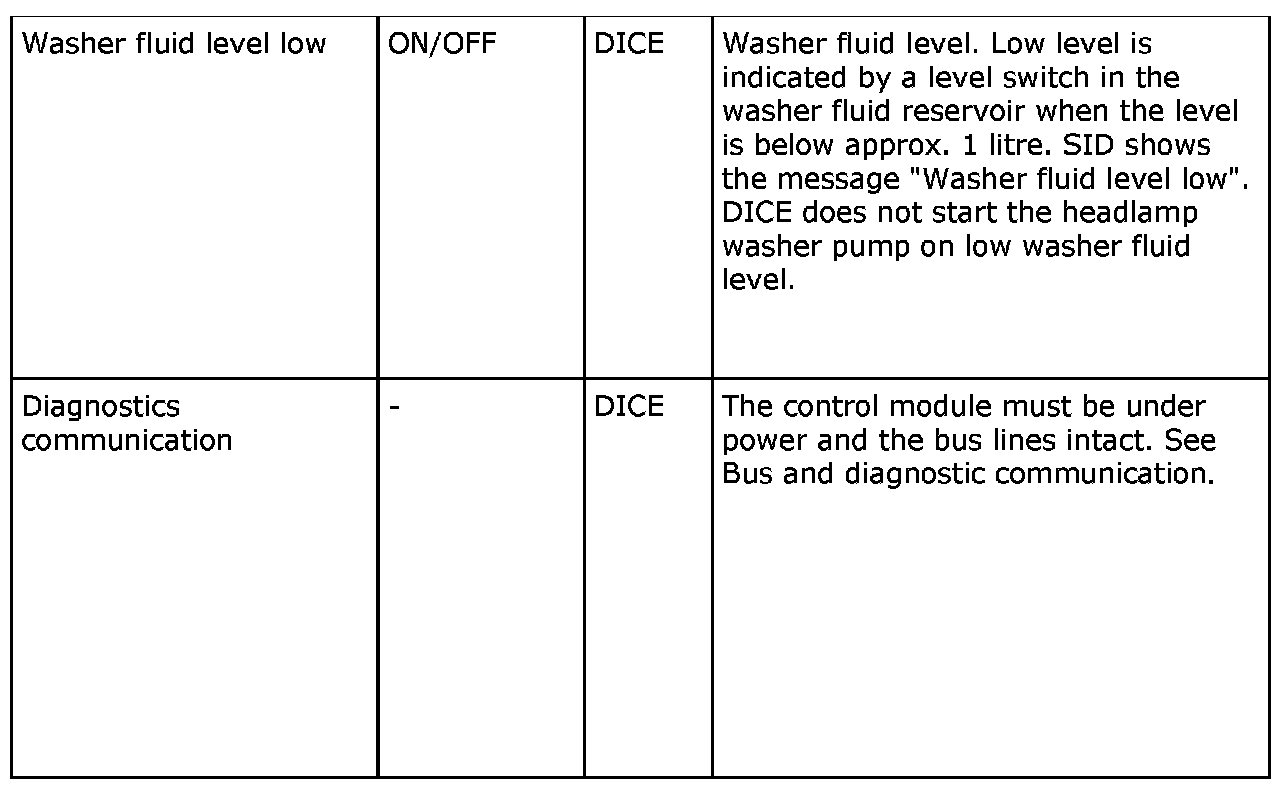

Part 1:




Part 2:




Part 3:




Part 4:

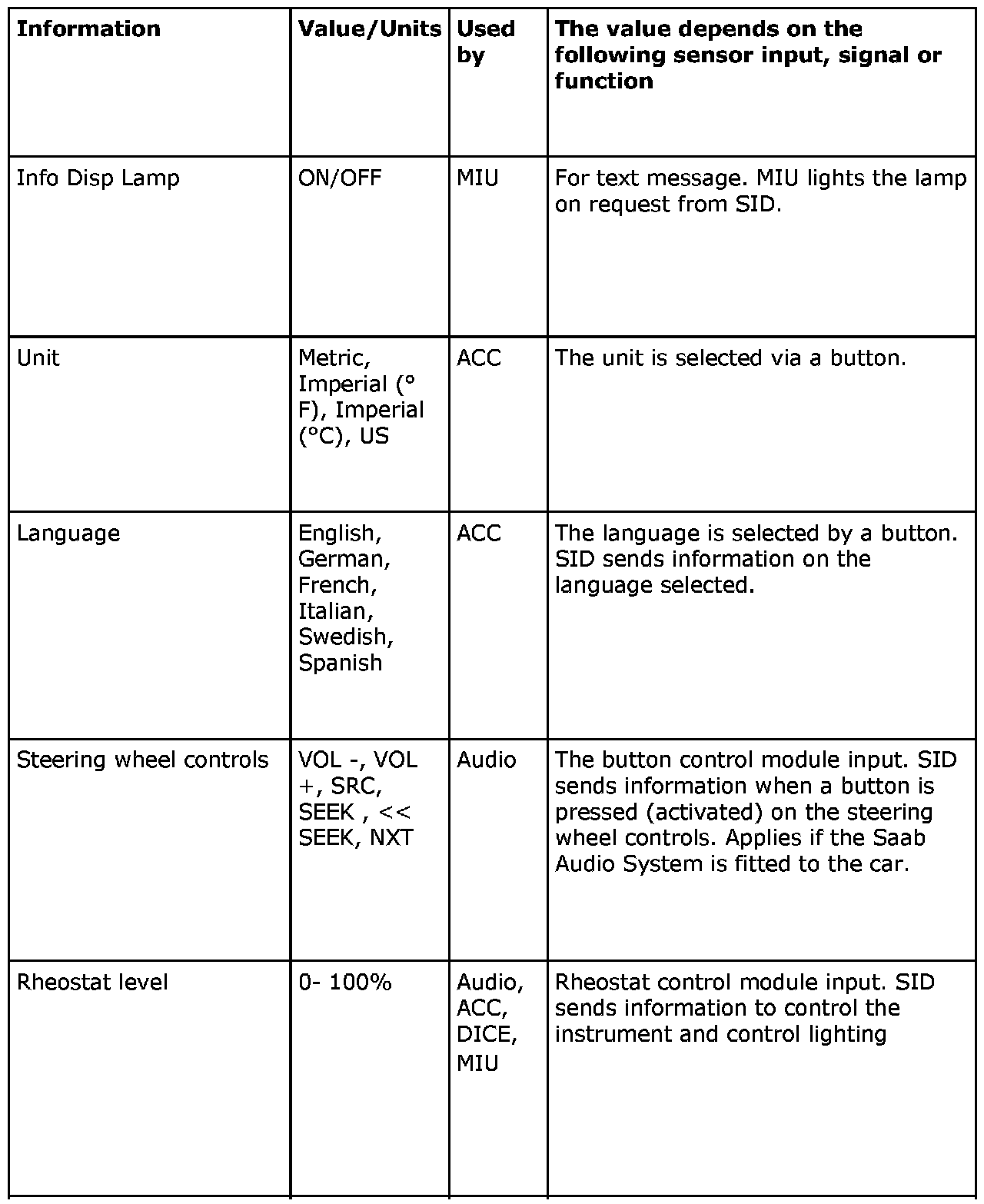

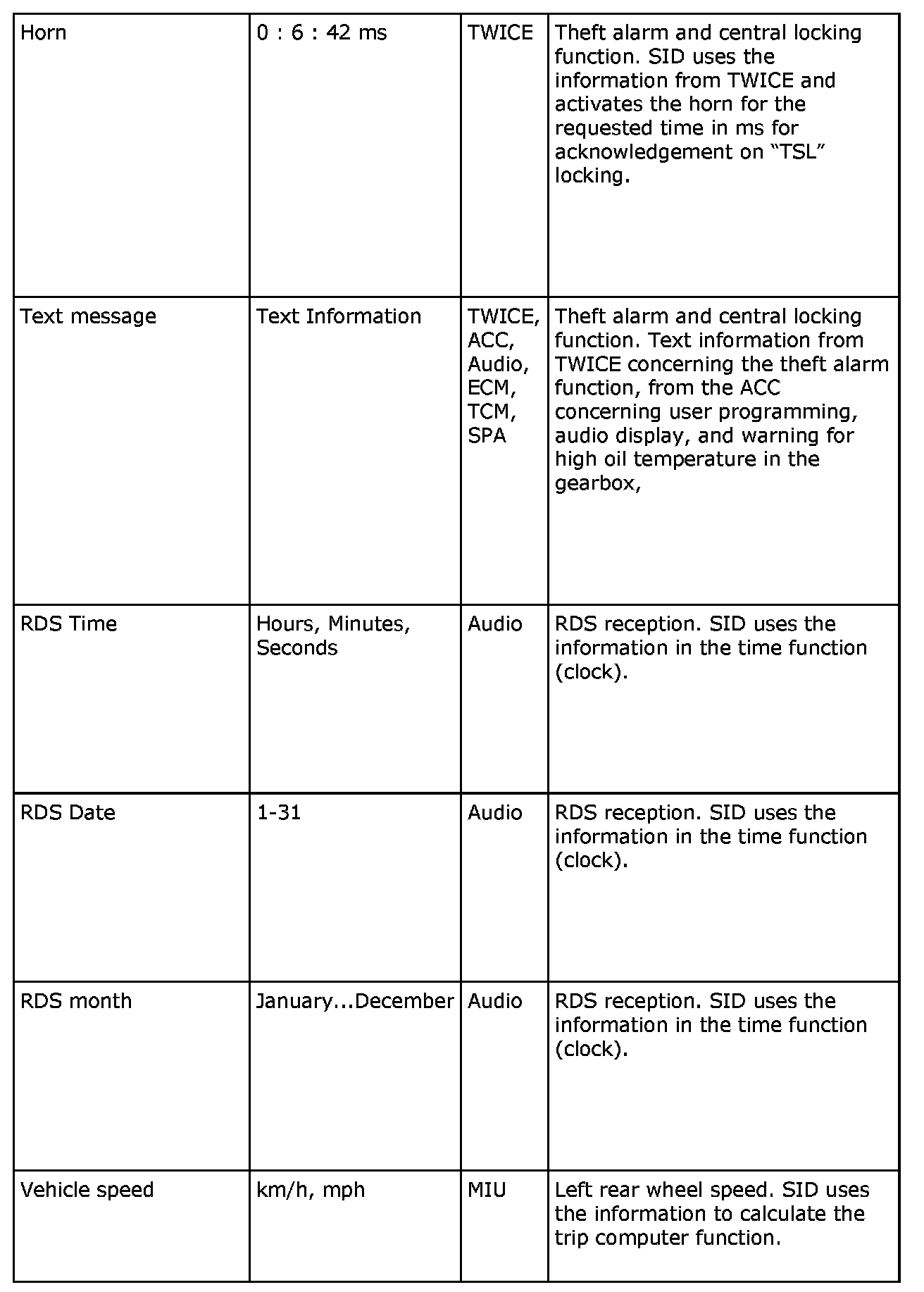

The SID sends out the following information


Part 1:




Part 2:




Part 3:
