SAS (Steering Wheel Angle Sensor)



Bus Messages, SAS

For a further description of the car's bus system, see System overview, bus and diagnostic communication, petrol.

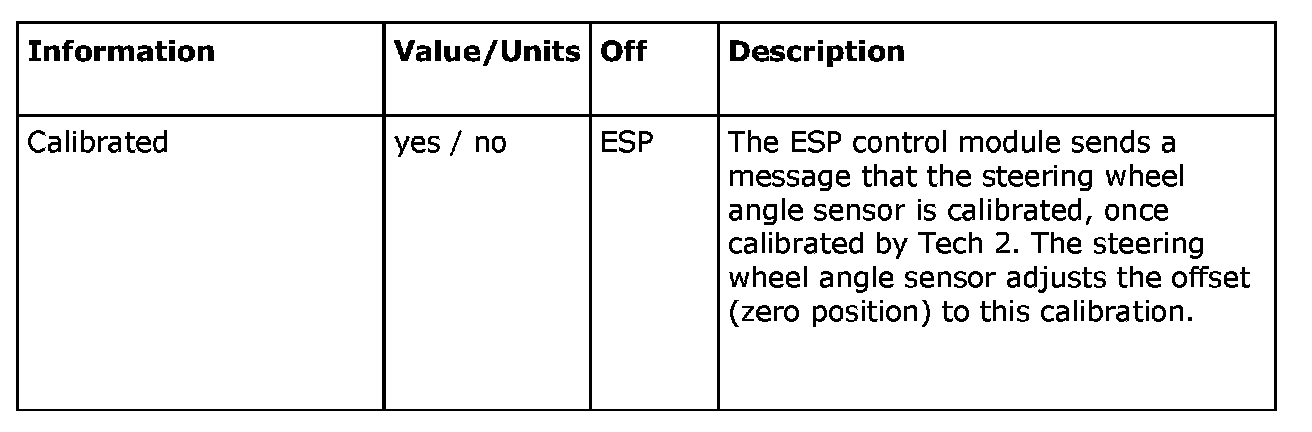

SAS uses the following information:

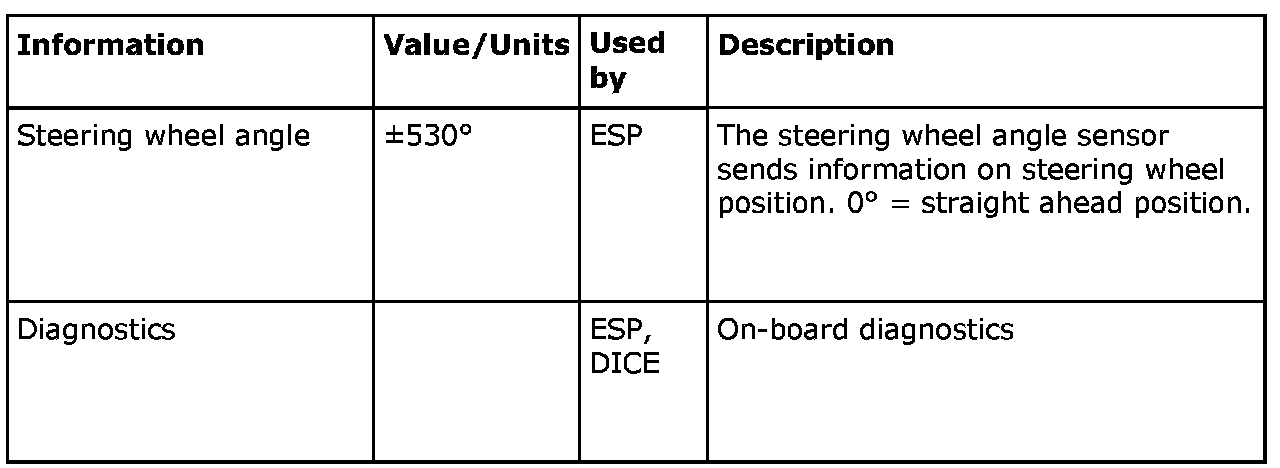

SAS sends the following information:
