Global Positioning System Module: Description and Operation

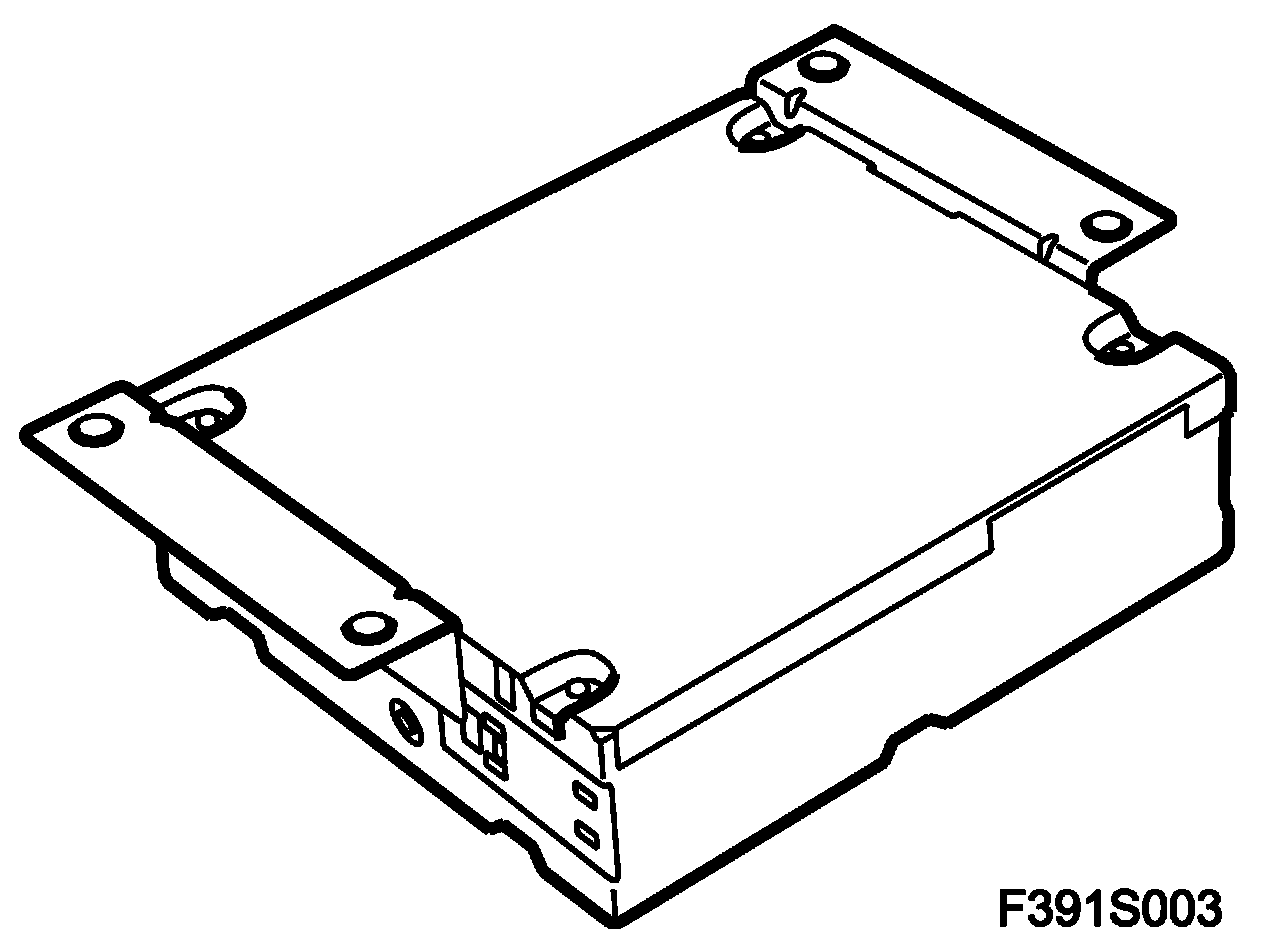

OnStar Control Module (673)

Location

OnStar Control Module (673):

Main task
The unit contains a mobile phone and a GPS receiver. It is connected to the radio, microphone, control panel, GPS/mobile phone antenna and data link connector via the car's wiring harness. The unit is equipped with one 12-pin and two 16-pin connectors as well as an antenna connection.

The unit's main tasks in the system are the following:
^ Voice and data communication via the mobile phone network.
^ Receive data signals from GPS and calculate the car's position, which is transferred over the mobile hone network to the OnStar Call Center via data communication.
^ Send bus messages to activate the car horn and hazard warning lights.
^ Receive bus messages if the airbag has been deployed in order to automatically call for assistance.
^ Reproduce phone calls via the audio system speakers.
^ Disconnect the sound of the audio system during a phone call. This is done by a mute signal being sent from the OnStar unit to the audio unit, which then disconnects the normal sound in the connected speakers and the signal to any external amplifier.
^ Diagnostics communication.

Power supply, ground and bus communication
