Power Seat Switch: Service and Repair

Control, Electrically Adjustable Seat

To remove

1. Remove Side panel, electrically adjustable front seat, 4D, Side panel, electrically adjustable front seat, CV.

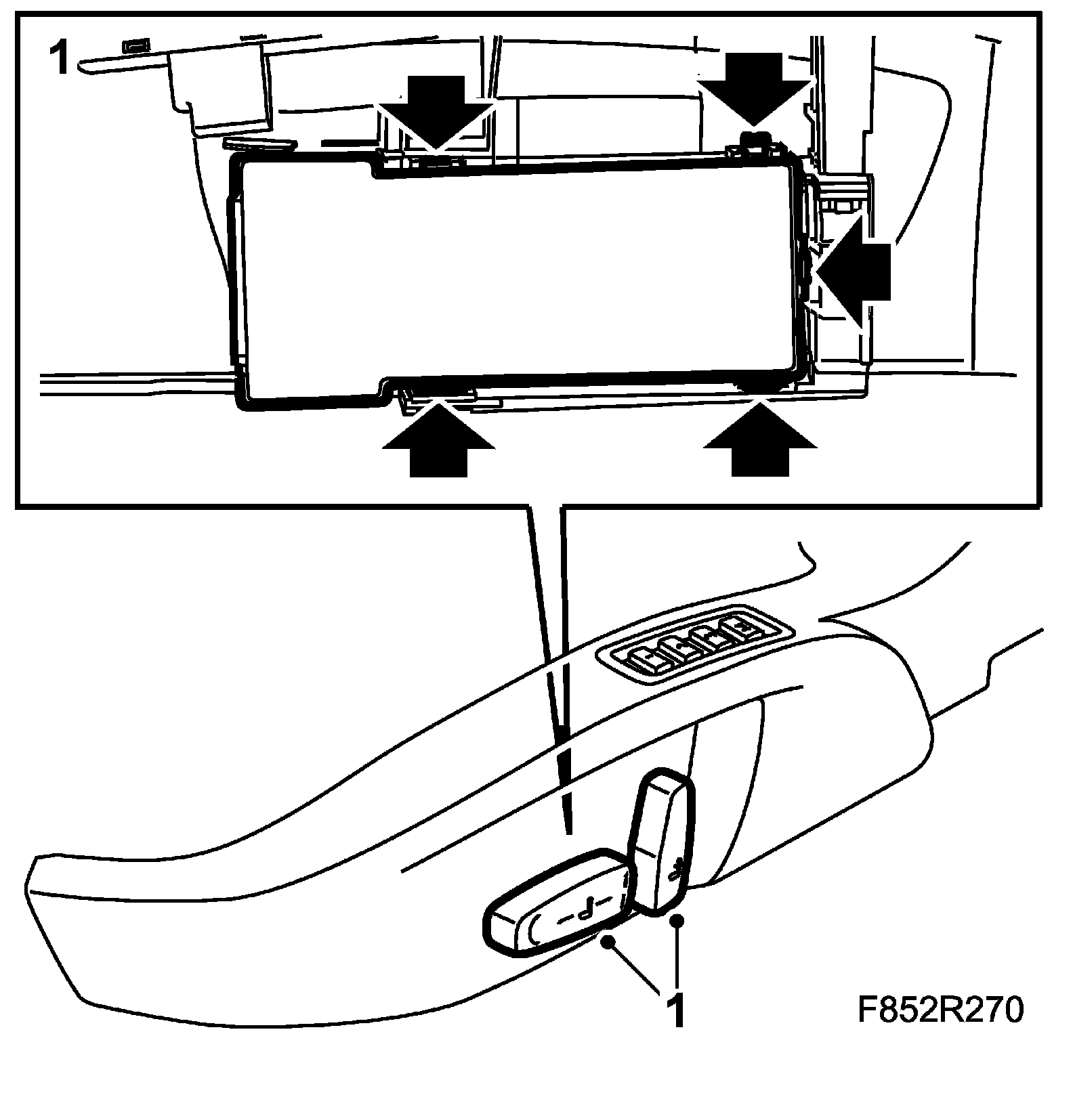

2. Remove the controls using 2 x 82 93 474 Removal tool. Fit the tools onto the sides of the controls and press in the clips. Lift away the controls.







To fit

1. Fit the controls in the side panel.







2. Fit Side panel, electrically adjustable front seat, 4D, Side panel, electrically adjustable front seat, CV.
