Main Components



Main Components

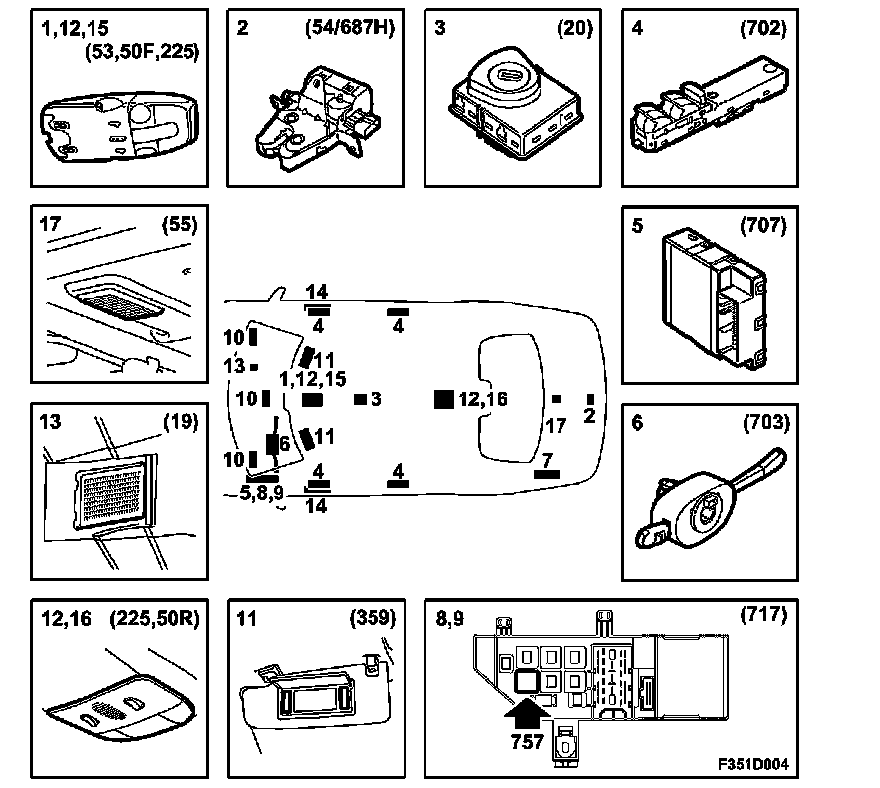

4D





1. Interior lighting switch (53)
2. Door switch, luggage compartment (54/687H)
3. Ignition Switch Module (ISM) (20)
4. Door control module DDM/PDM/RLDM/RRDM (702 D/P/RL/RR)
5. Body Control Module (BCM) (707)
6. Column Integration Module (CIM) (703a)
7. Rear Electrical Center (REC) (701)
8. Relay, interior lighting (717)
9. Relay, +15, IPEC (757C)
10. Lamp, front floor lighting (613F)
11. Lamp, vanity mirror lighting (359)
12. Reading light (225)
13. Lamp, glove box lighting (19)
14. Lamp, courtesy lighting (209)
15. Lamp, front roof lighting (50F)
16. Lamp, rear roof lighting (50R)
17. Lamp, luggage compartment lighting (55)

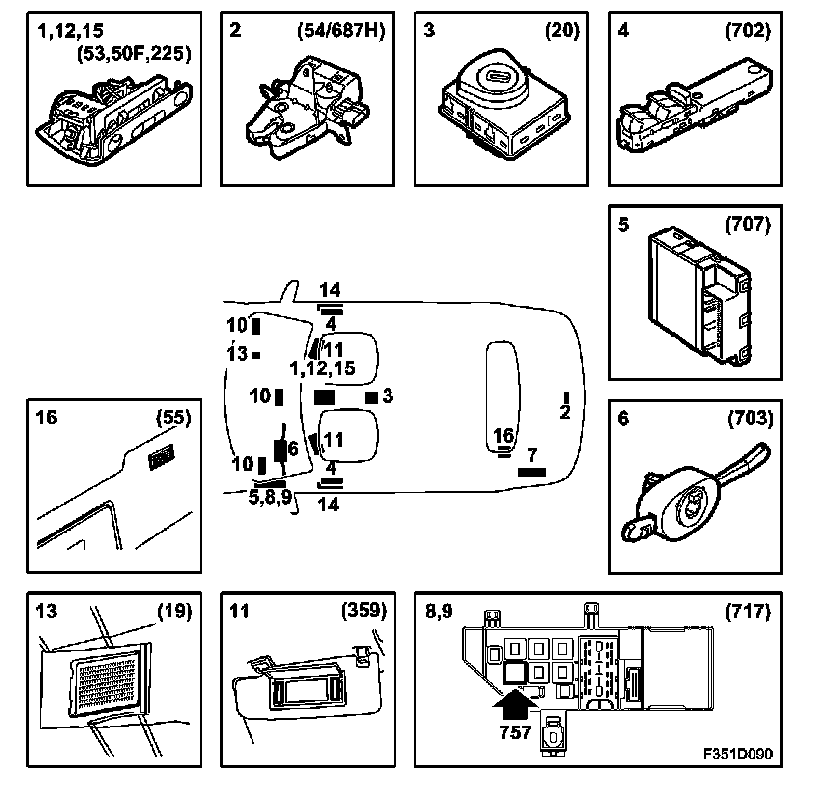

CV





1. Interior lighting switch (53)
2. Door switch, luggage compartment (54/687H)
3. Ignition Switch Module (ISM) (20)
4. Door control module, DDM/PDM (702 D/P)
5. Body Control Module (BCM) (707)
6. Column Integration Module (CIM) (703a)
7. Rear Electrical Center (REC) (701)
8. Relay, interior lighting (717)
9. Relay, +15, IPEC (757C)
10. Lamp, front floor lighting (613F)
11. Lamp, vanity mirror lighting (359)
12. Reading light (225)
13. Lamp, glove box lighting (19)
14. Lamp, courtesy lighting (209)
15. Lamp, front roof lighting (50F)
16. Lamp, luggage compartment lighting (55)
