Pre-Heated Oxygen-Sensor, Front (592)



Pre-Heated Oxygen-Sensor, Front (592)

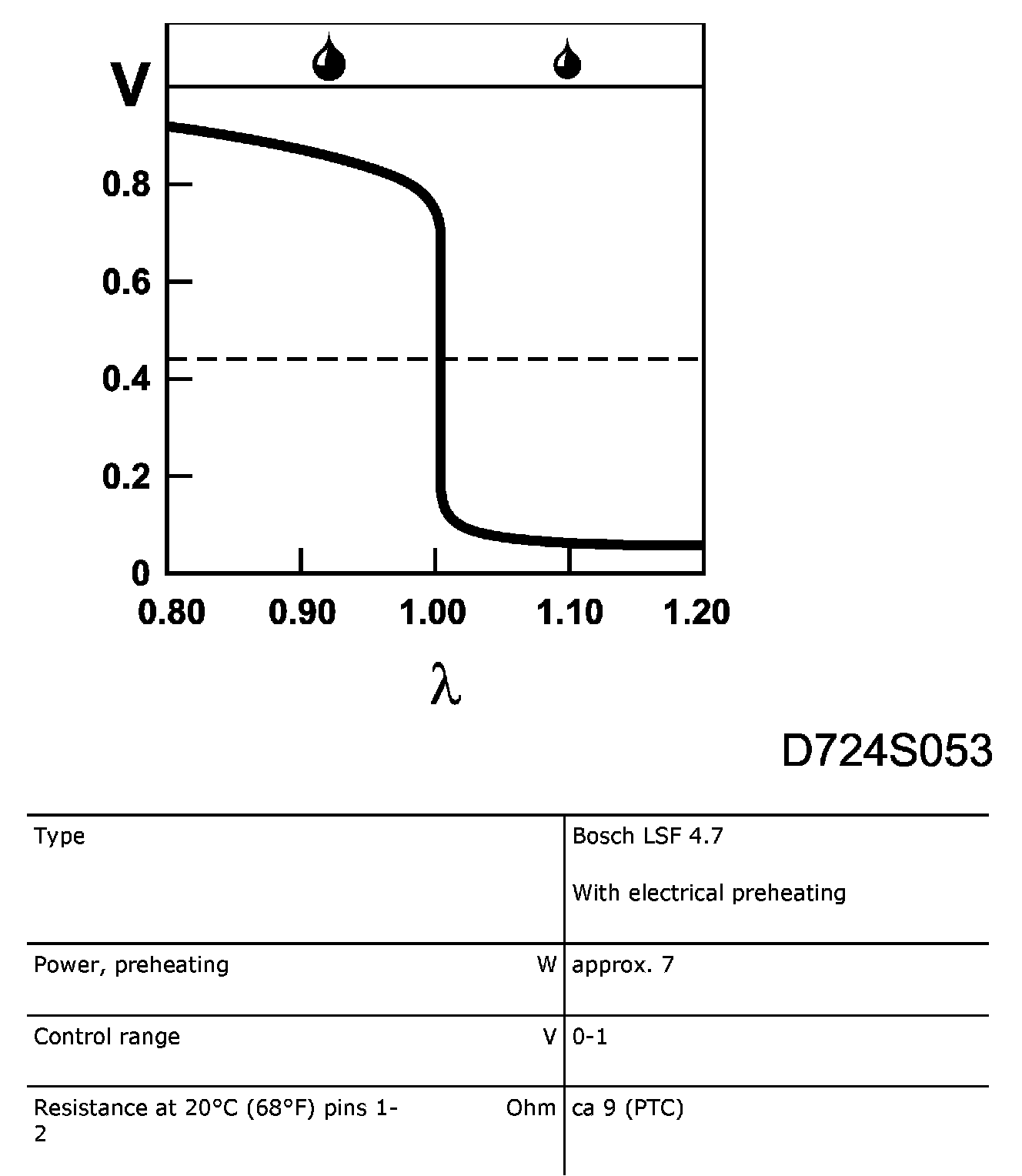

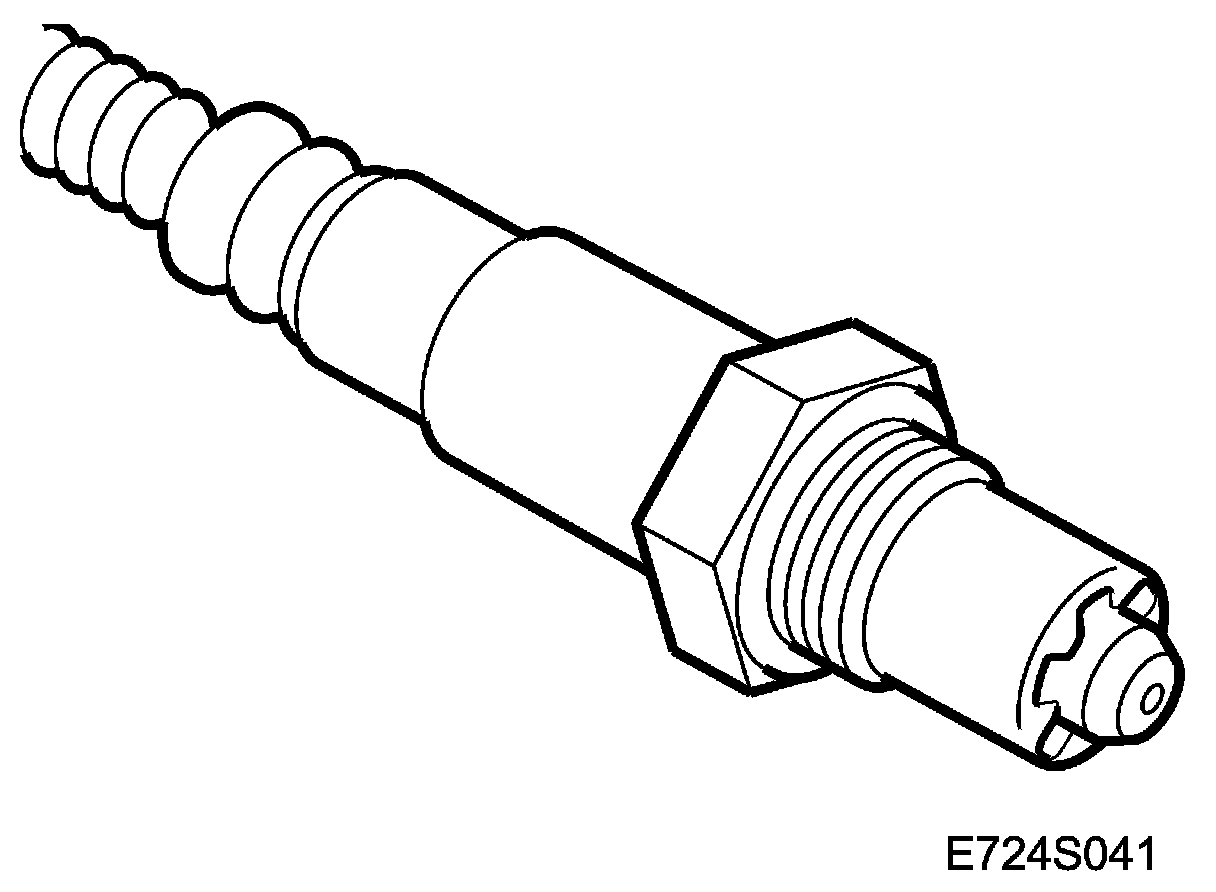

Pre-heated Oxygen-sensor, Front (592):








Pins 3 and 4 are gold plated.

NOTE: The connector must not be treated with any sort of contact cleaner.
