Dashboard / Instrument Panel



Switch Panel (737a)





Main task
Functions in the switch panel:
^ adjust the brightness of the instrument illumination
^ turn on or off TCS or ESP function
^ turn on or off extra equipment (4D)
^ operate the soft top (CV)
^ Night Panel (extinguishes certain parts of instrument illumination)
^ Indicates passenger airbag ON/OFF, used by PPS (Passenger Presence System), certain markets

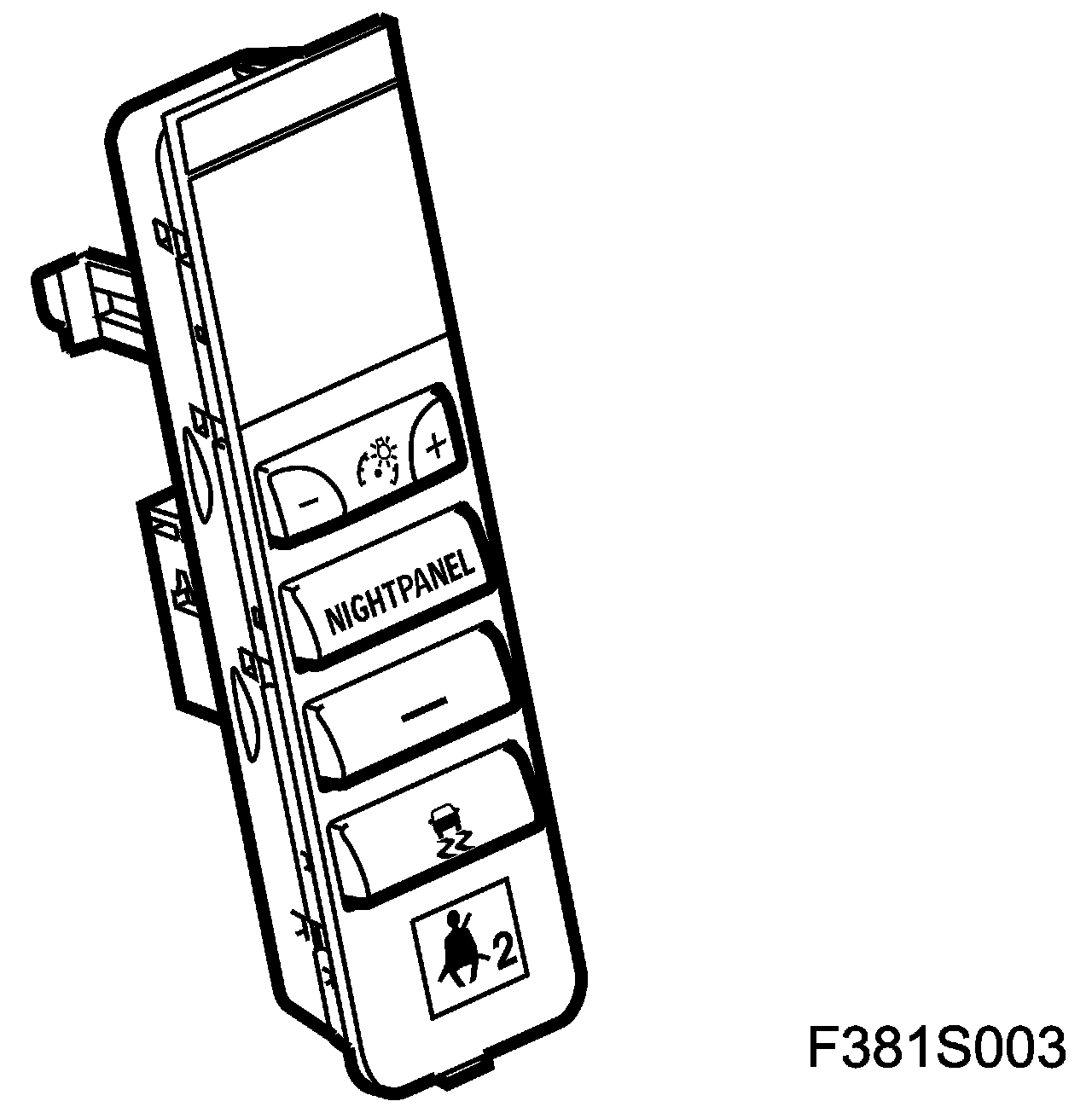

Type
Switch panel appearance is tied to the equipment level of the car.

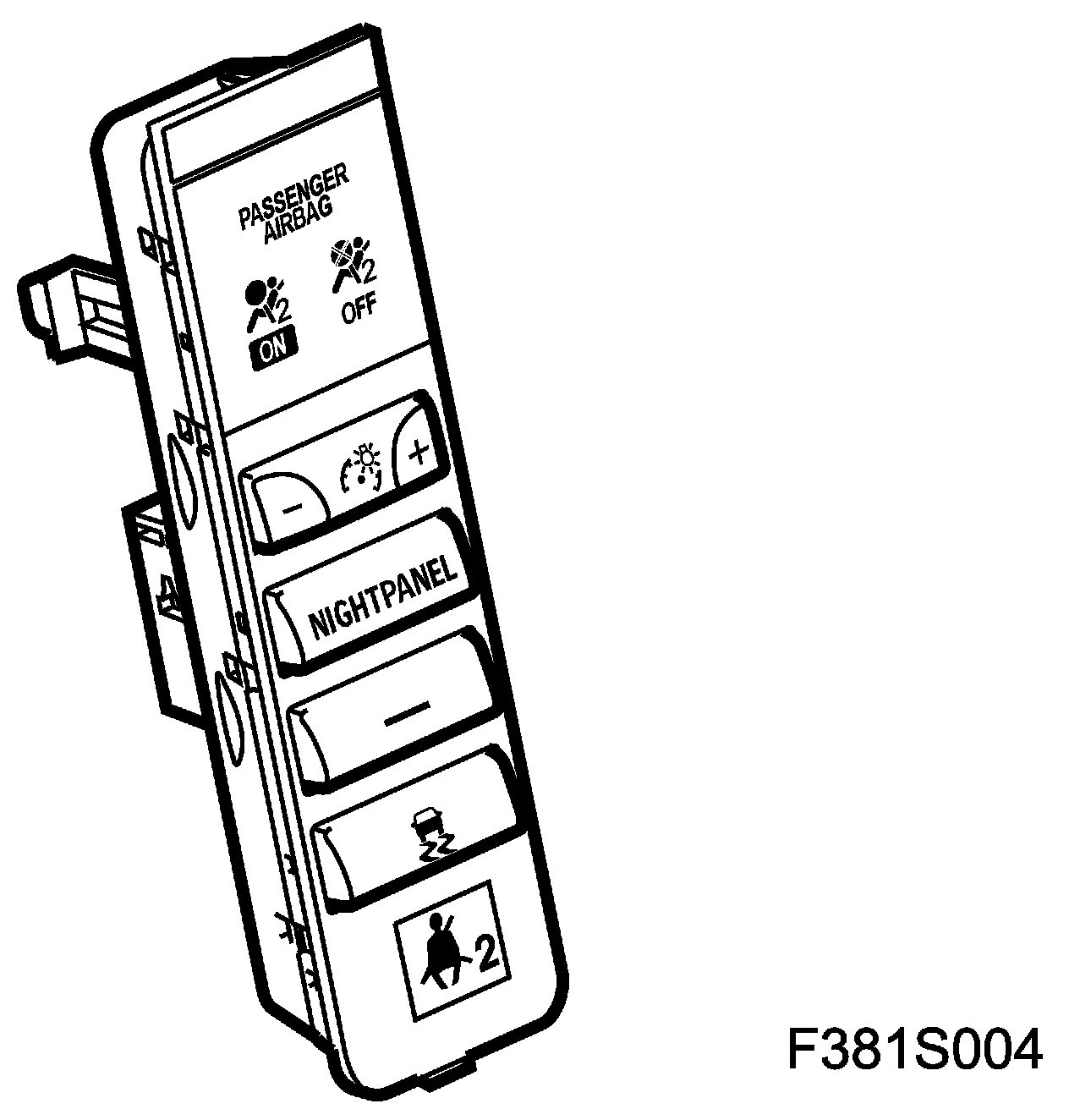

For some markets, the switch panel contains LEDs that are used by the PPS control module to indicate whether the passenger airbag is ON or OFF.

The switch panel has one 12-pin connector.

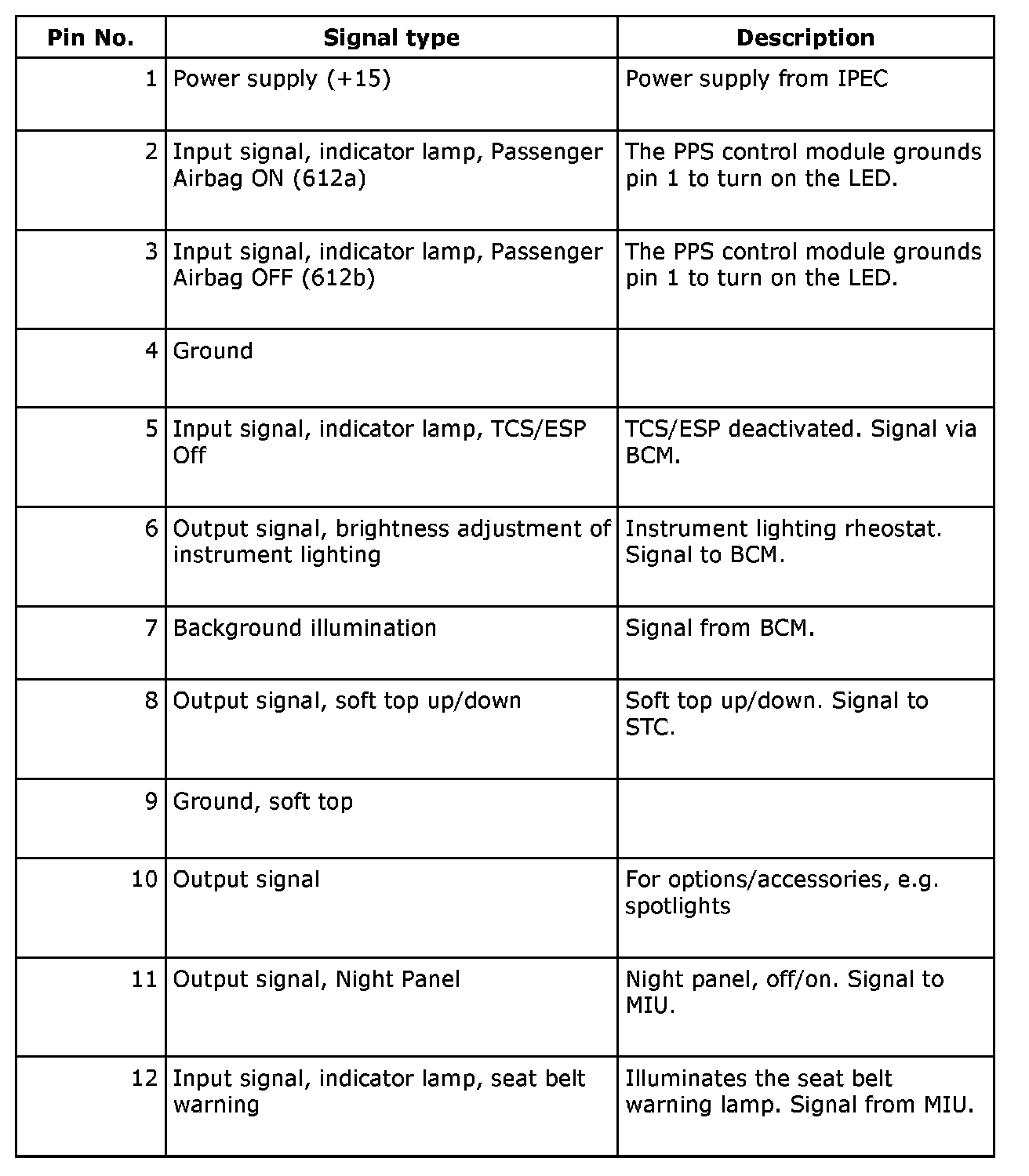

Connection

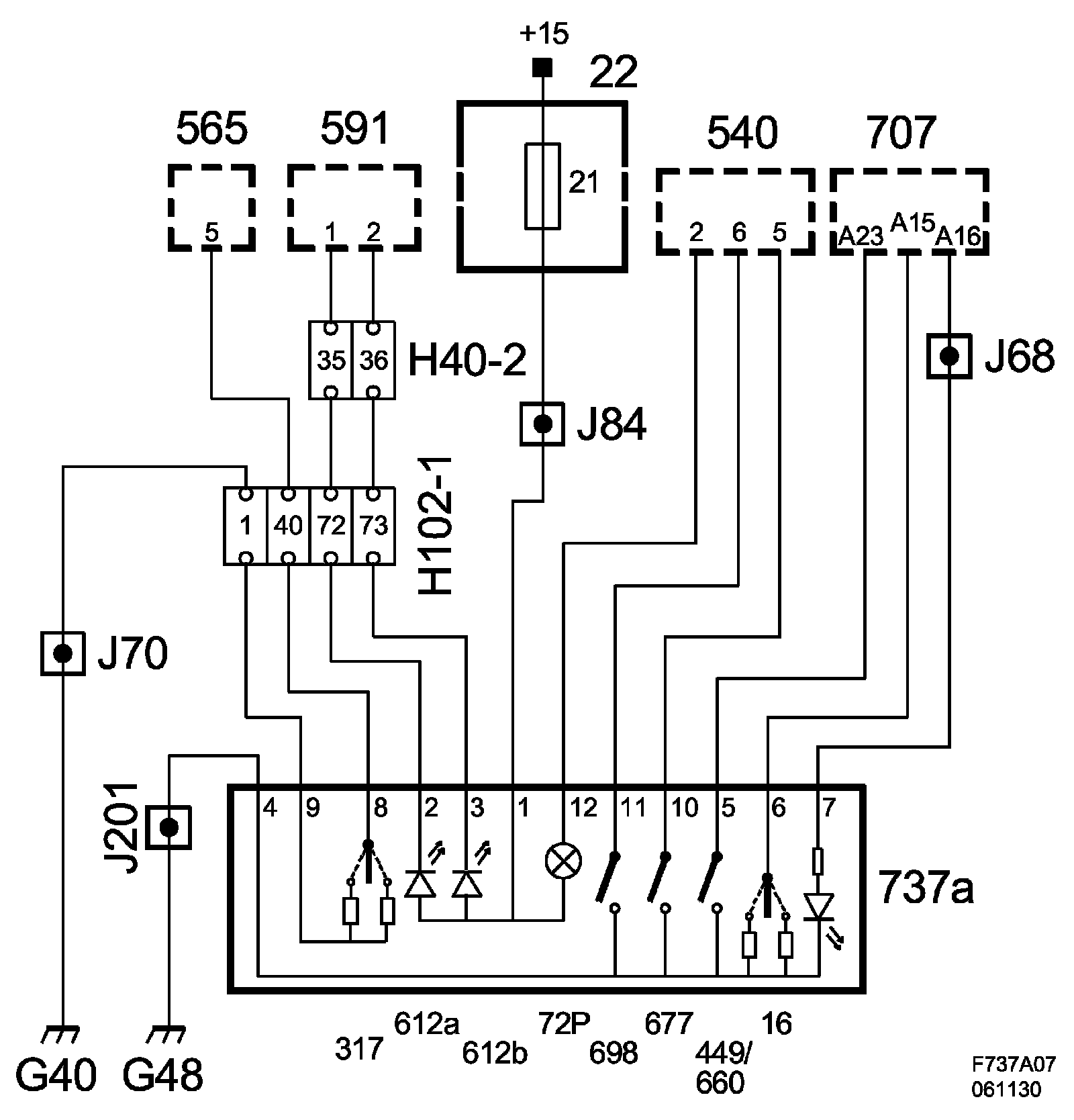

Wiring diagram
