Anti-theft Alarm, Bus

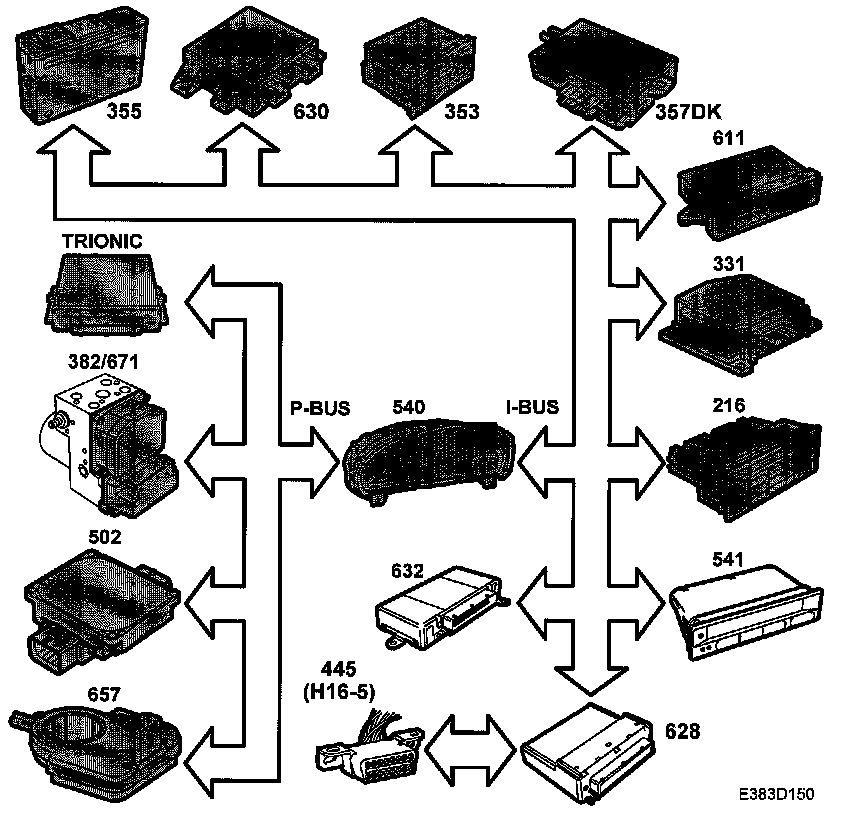

Control Module Outputs For The Anti-Theft Alarm, Bus







^ Text message used by SID (541)
^ Direction indicators (on/off) used by DICE (628)
^ Horn used by SID (541)
^ Diagnostics communication

For a further description of the control module's input information from the bus, see Bus messages.

For a further description of diagnostics, see Bus and diagnostics communication.
