Immobilization

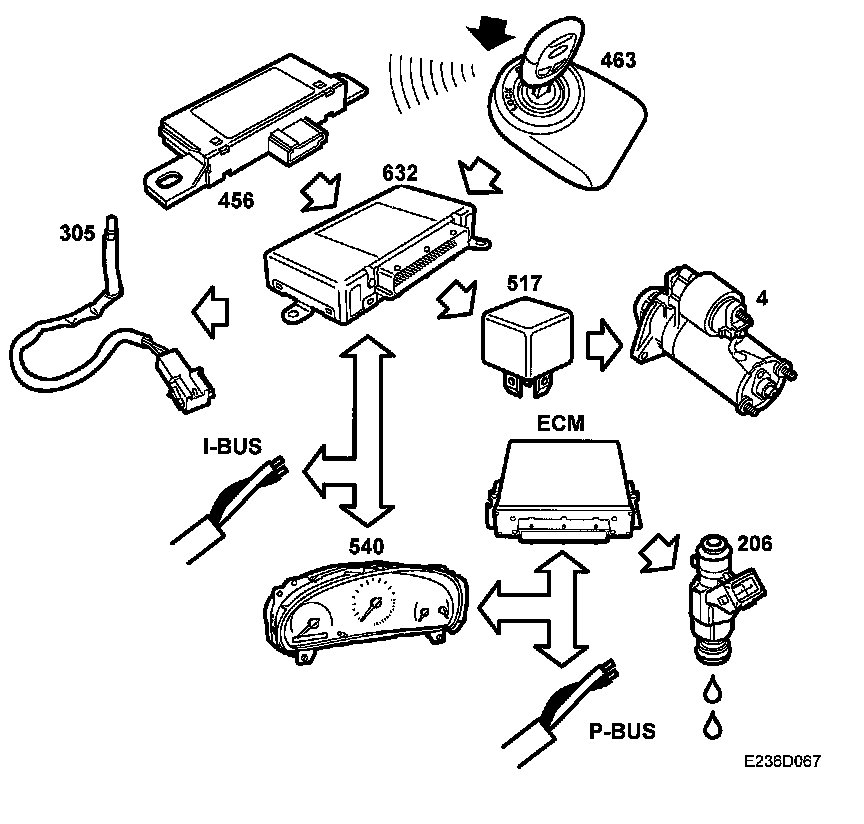

System Overview, Immobilization ^
Control module, TWICE (632)
^
Car key
^
Antenna unit, immobilizer (463)
^
Antenna, remote control, central locking system (456)
^
LED, anti-theft alarm (305)
^
Main instrument panel (540)
^
Engine control module (ECM)
^
Injectors (206)
^
Relay,
starter relay (517)
^
Starter motor (4)
