A/C Function (Cars With ACC)

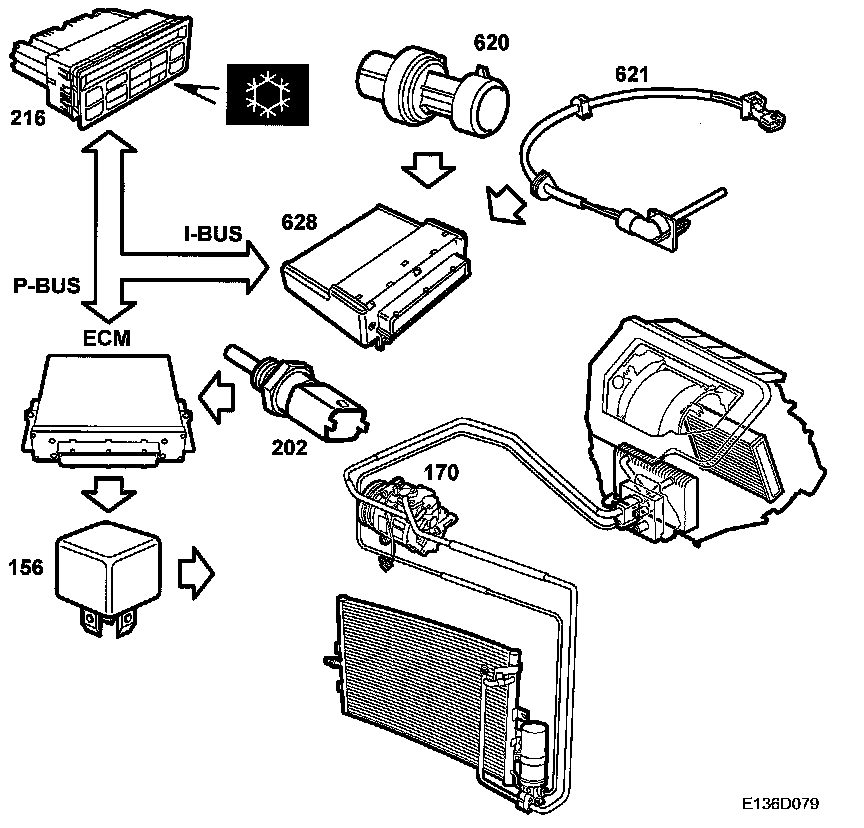

System Overview, A/C Function (Cars With ACC)







^ Control module, DICE (628)
^ Control module, ACC (216)
^ Evaporator temperature sensor, A/C (621)
^ Pressure sensor, A/C (620)
^ Relay, A/C compressor (156)
^ A/C compressor (170)
^ Engine management system (430, 589, 595, 600, 608, 655)
^ Engine coolant temperature sensor, engine management system (202)
