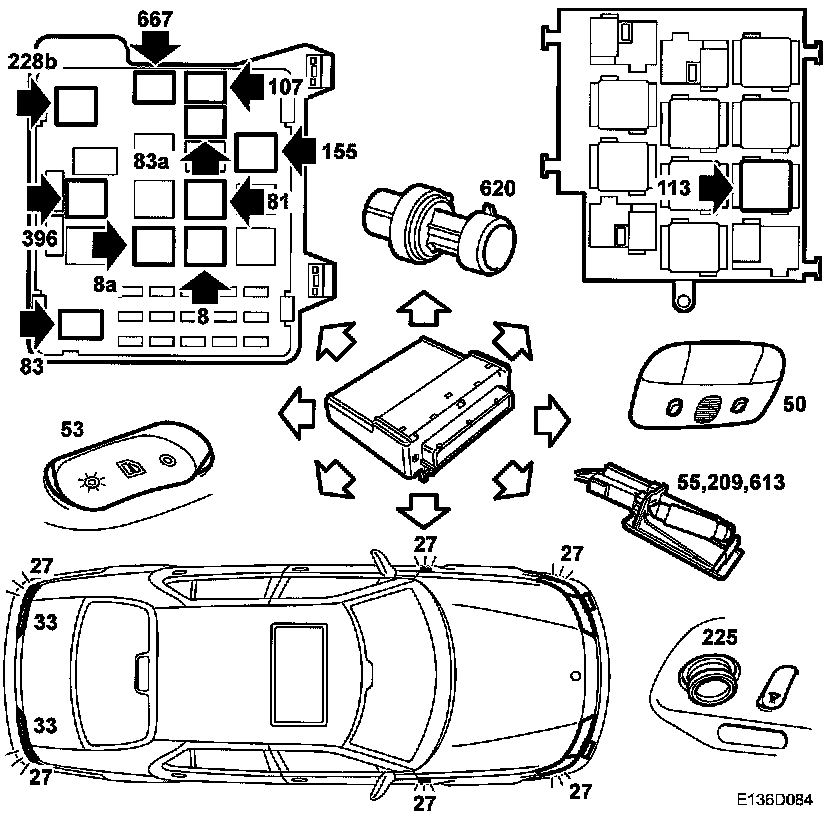

Control Module Outputs

Control Module Outputs







^ Dipped beam relay (8)
^ Main beam relay (8a)
^ Front fog lights, relay (107)
^ Rear fog light, lamp (33)
^ Direction indicators LH lamp (27)
^ Direction indicators RH lamp (27)
^ Interior lighting, light switch (53)
^ Courtesy/floor lighting, lamps (209/613)
^ Reading lamp (225)
^ Luggage compartment lamp (55)
^ Instrument and control lighting, lamps
^ Intermittent wiper relay, windscreen (83)
^ Rear window intermittent wiper, relay (83a)
^ High-pressure cleaning, headlamps, relay (667)
^ Electrically heated rear window and door mirrors, relay (113)
^ Radiator fan, low-speed relay (396)
^ Radiator fan, high-speed relay 1 (155)
^ Radiator fan, high-speed relay 2 (81)
^ A/C pressure sensor, power supply (620)
