A/C Function

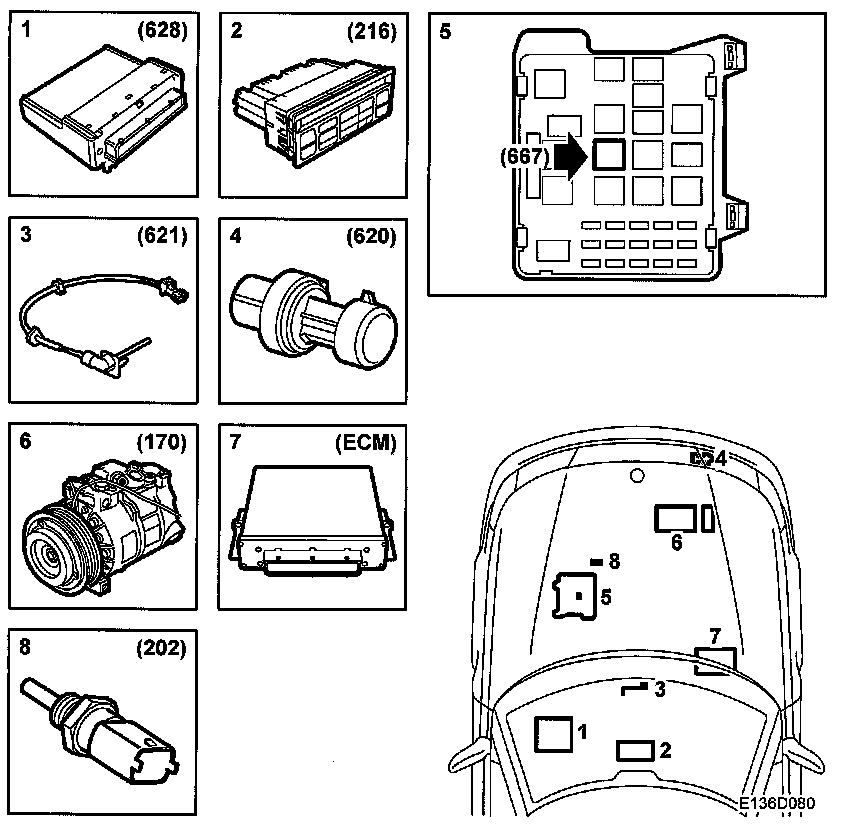

Main Components, A/C Function 1.
Control module, DICE (628)
2.
Control module, ACC (216)
3.
Evaporator temperature sensor, A/C (621)
4.
Pressure sensor, A/C (620)
5.
Relay, A/C compressor (156)
6.
A/C compressor (170)
7.
Engine management system (430, 589, 595, 600, 608, 655)
8.
Engine coolant temperature sensor, engine management system (202)
