Control Module Inputs

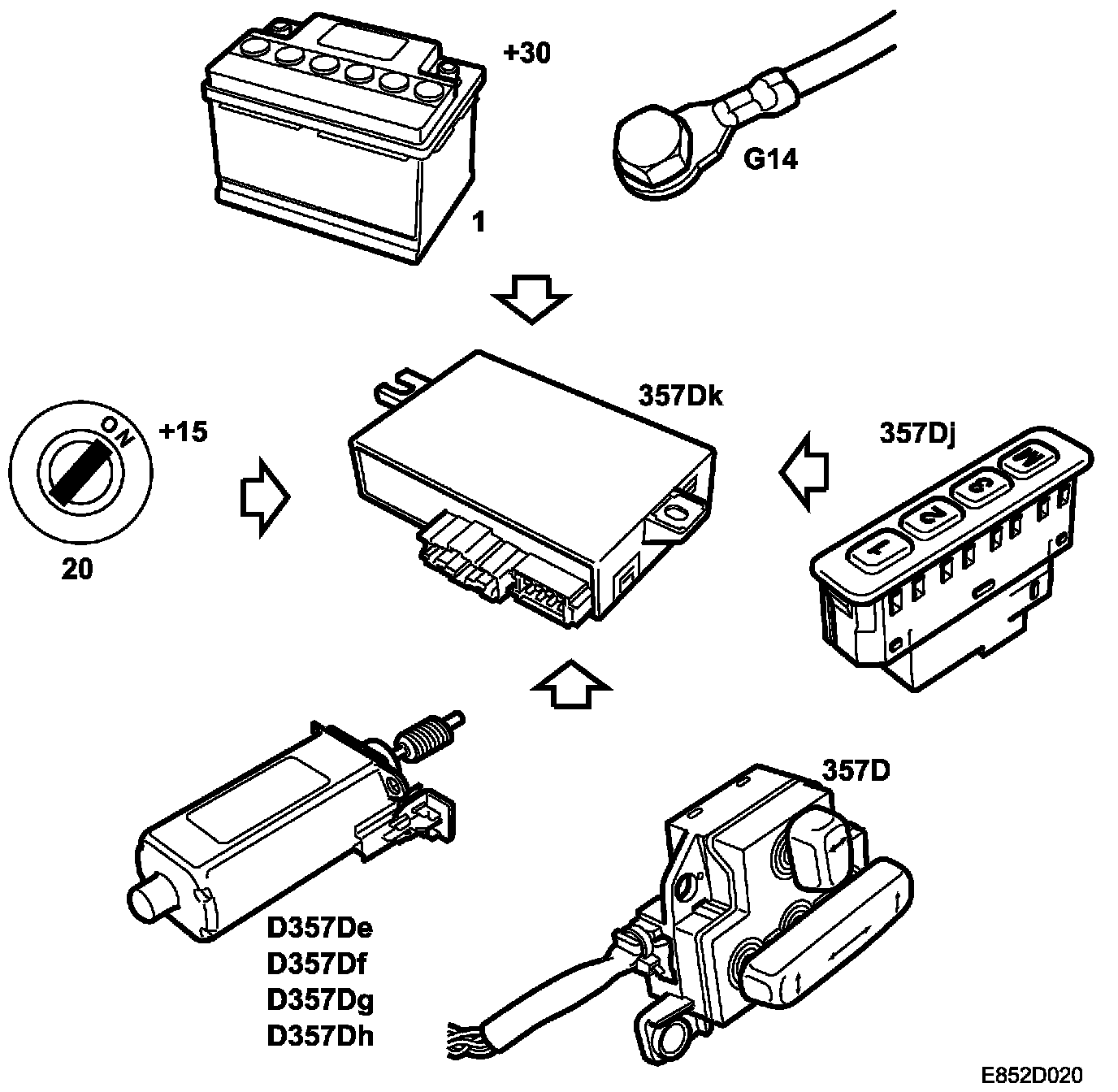

Control Module Inputs







- +15 power supply.
- +30 power supply.
- Ground.
- Memory buttons (357Dj).
- Switch unit (367D), seat adjustment.
- Hall sensor (357De-Dh), seat adjustment.
