Power Supply, Control Module

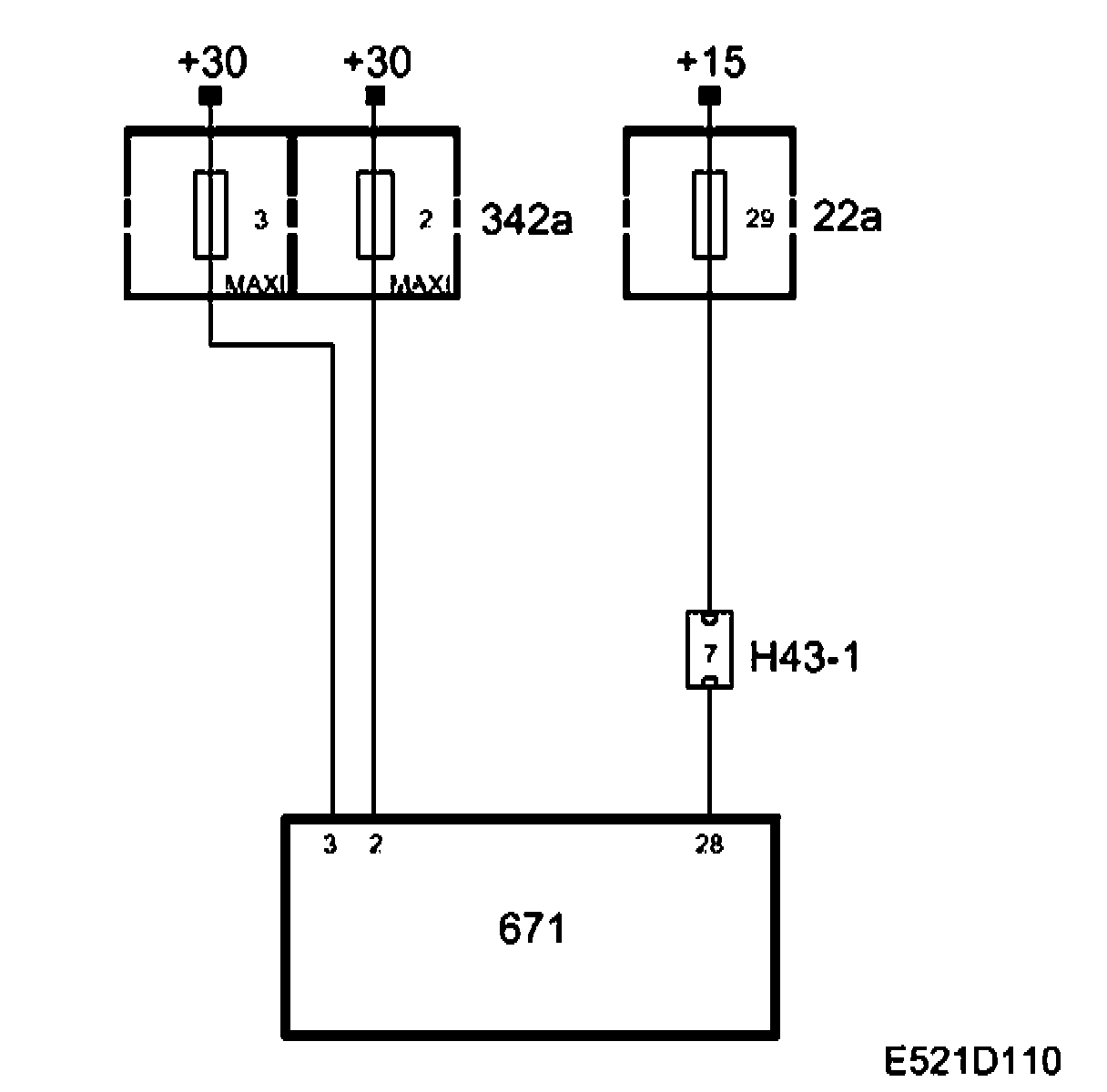

Diagram:

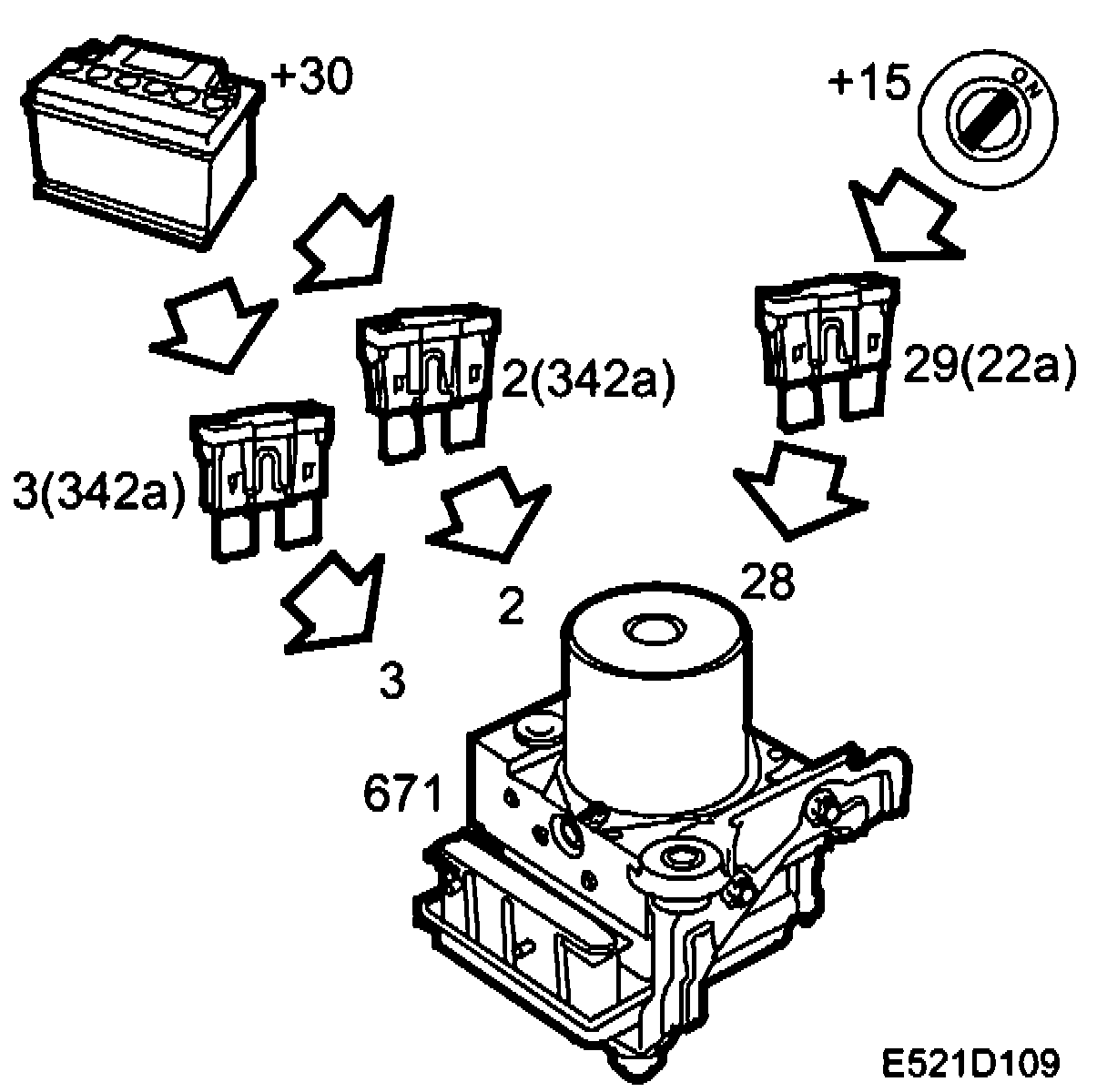

Power Supply Battery voltage (+30 circuit) +30 voltage is supplied via Maxi fuses 2 and 3 (342a) to pins 2 and 3 respectively on the control module.
Battery voltage (+15 circuit) +15 voltage is supplied via fuse 29 (22a) to pin 28 on the control module.
