Air Door: Service and Repair
Link Arm, Recirculation MotorRemoving 1.

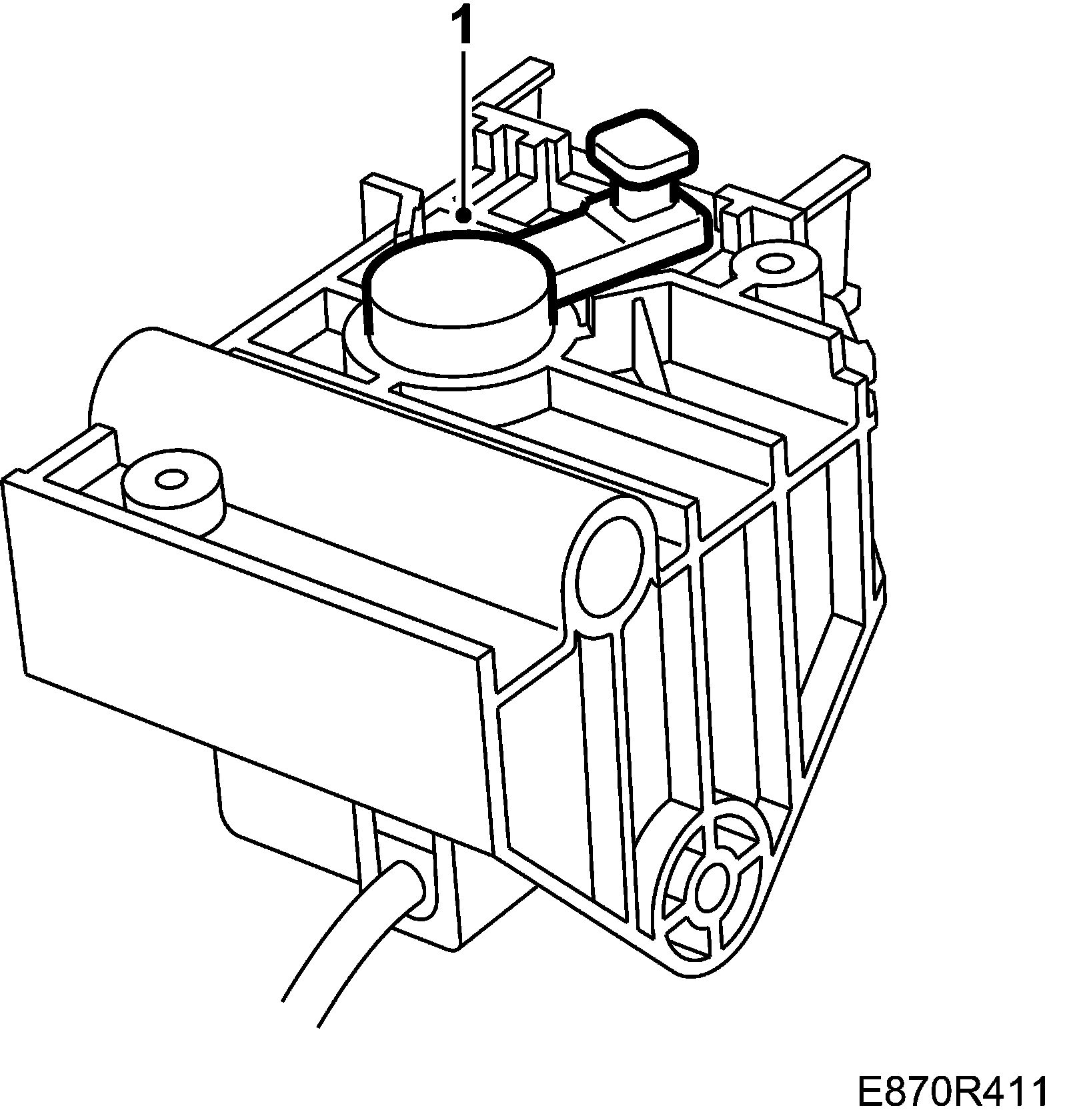

Remove the Recirculation motor.
2.

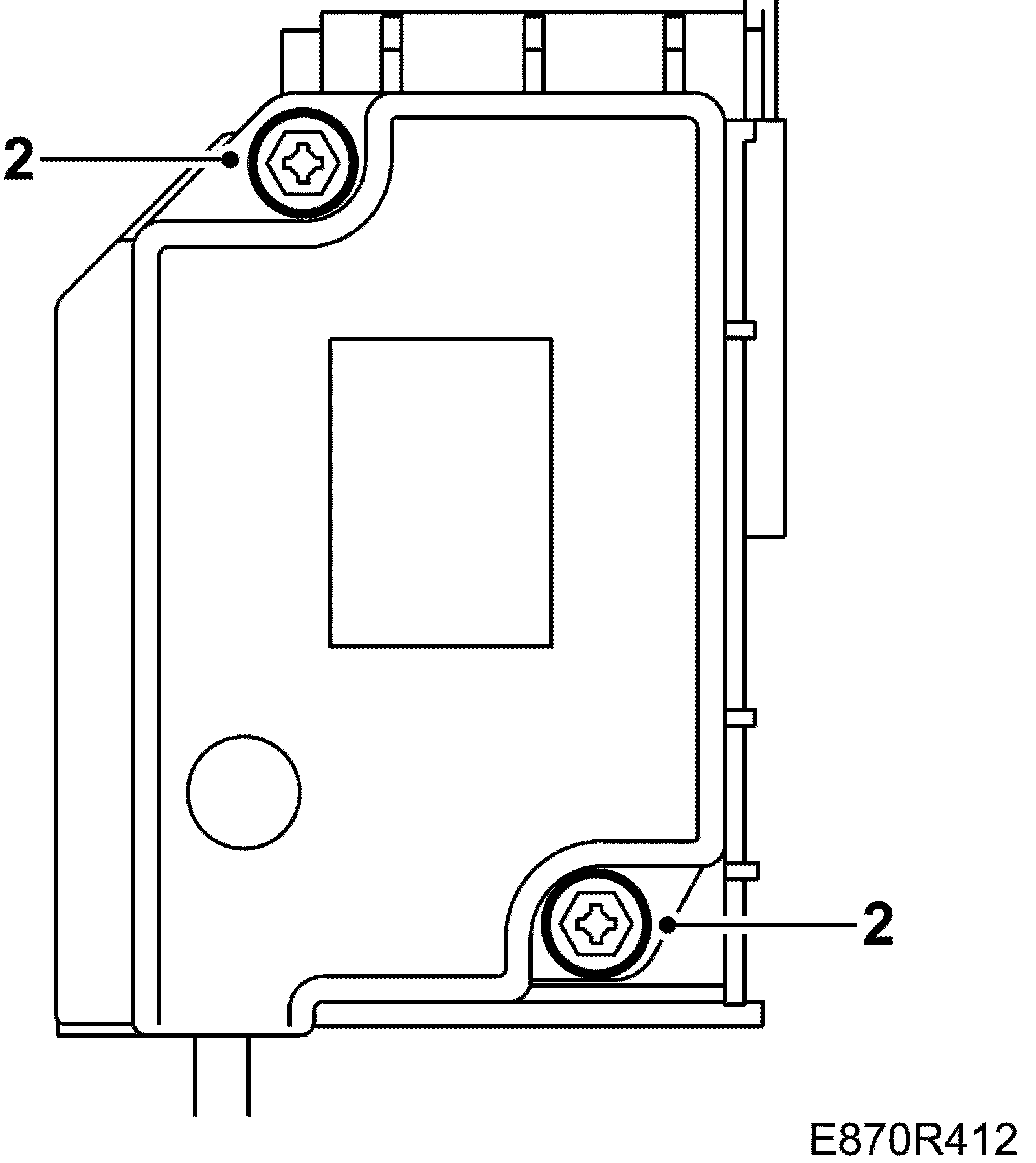

Remove the motor bolts.
3.

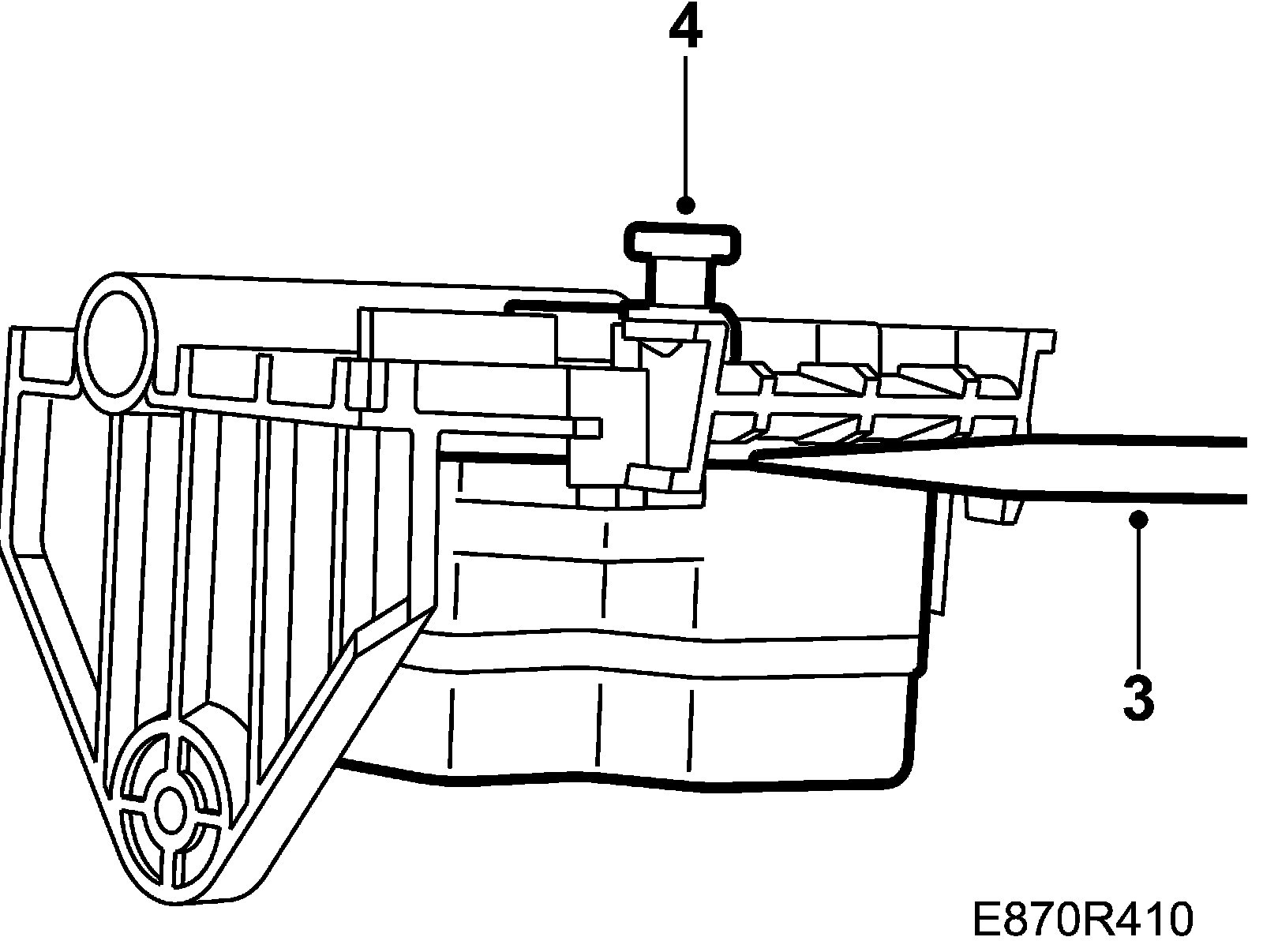

Bend apart the mounting from the motor using a screwdriver.
4.
Lift off the arm.
Fitting 1.
Fit the arm on the mounting.
2.
Fit the mounting to the motor.
3.
Fit the recirculation motor.
