Cabin Temperature Sensor / Switch: Service and Repair

Cabin Temperature Sensor

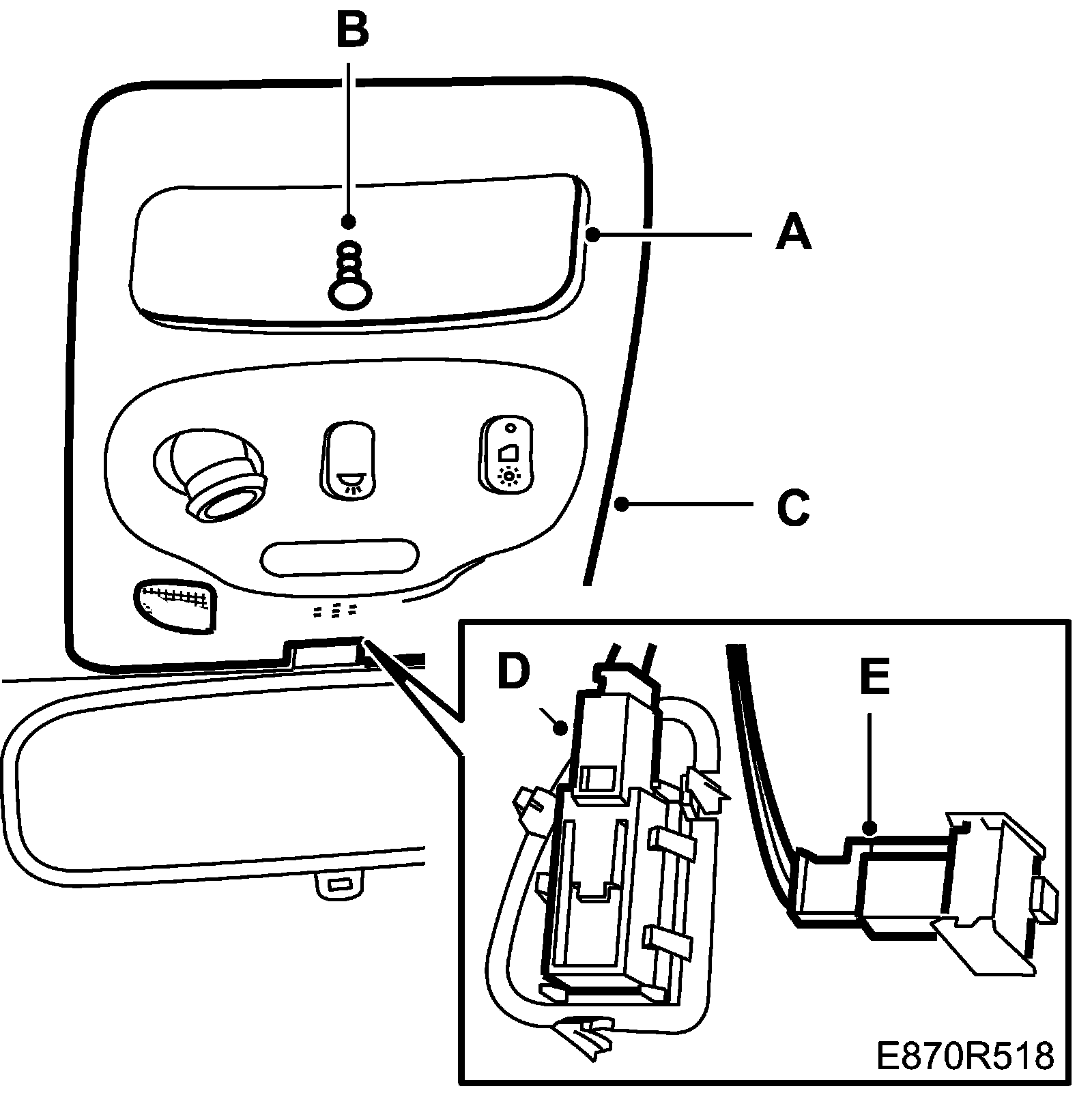

To remove







1. Remove the lighting lens (A).
2. Remove the screw (B).
3. Undo the sensor (C) from the roof console clips.
4. Release the sensor (D) from the roof console.
5. Unplug the connector (E) from the sensor.

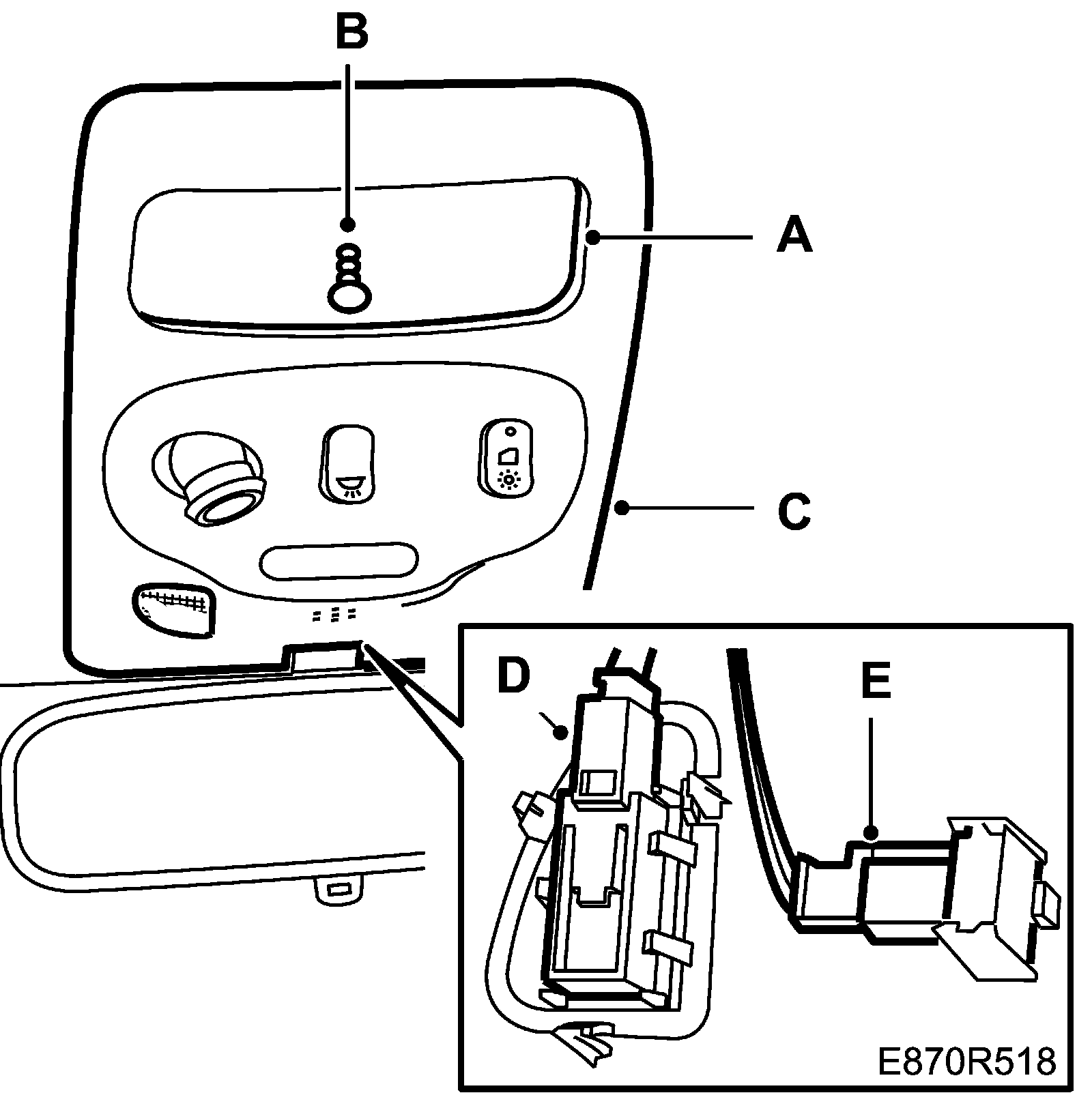

To fit







1. Plug in the connector (E) for the sensor.
2. Snap in the sensor (D) to the roof console.
3. Fit the sensor (C) to the roof console.
4. Fit the screw (B).
5. Refit the lighting lens (A).

NOTE: Make sure that the sensor is firmly snapped in.
