ACC Unit

ACC Unit

IMPORTANT:
- ESD-SENSITIVE COMPONENT
- Earth yourself by touching the car body before plugging in / unplugging components. Do not touch the component pins. Read Before changing a control module before changing a control module.

NOTE: If the ACC unit is replaced, spare parts programming must be carried out. Follow the instructions in the "Programming" menu of the diagnostics tool.

To remove
1. Ignition switch in the OFF position.

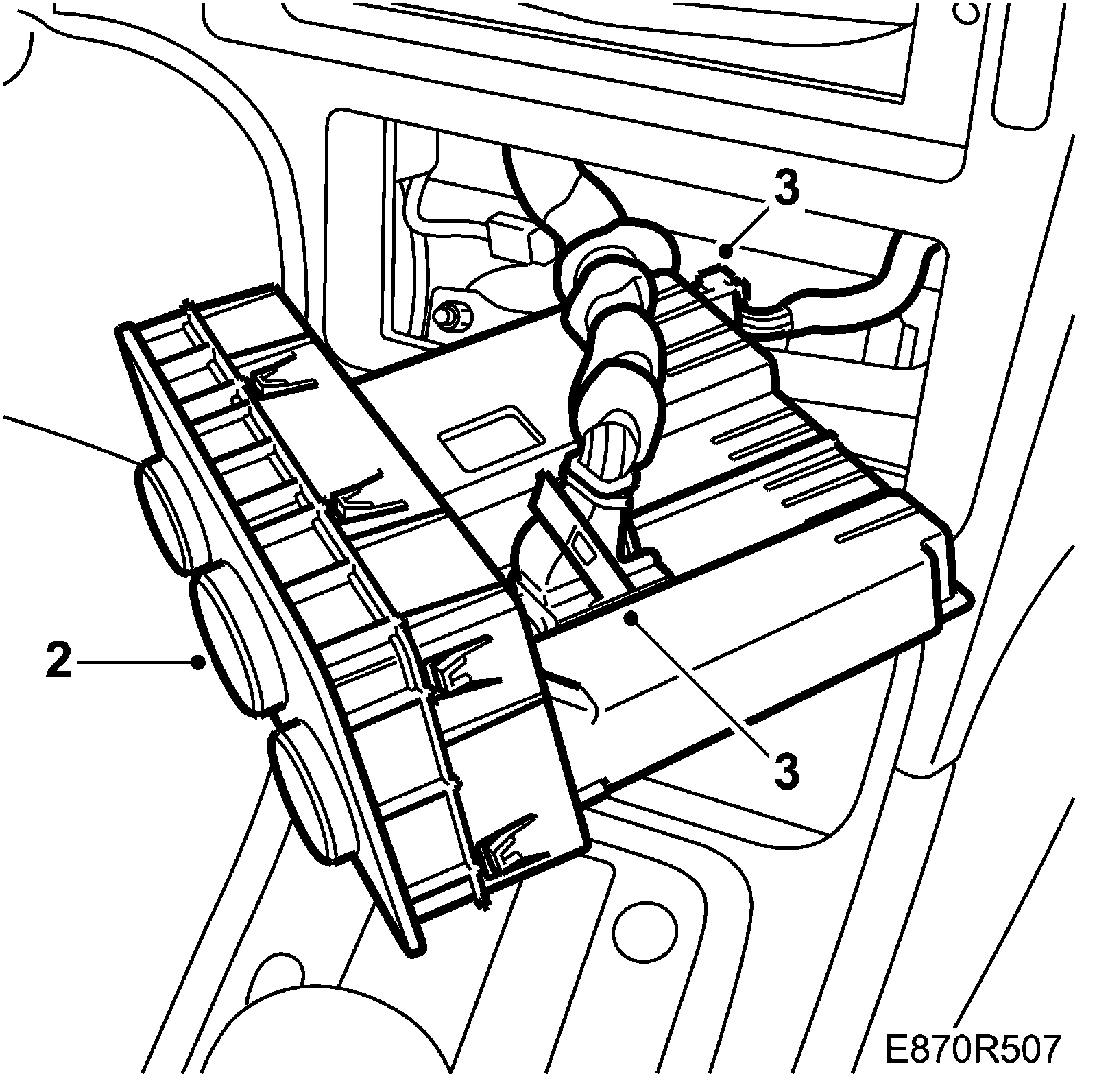

2. Remove the ACC panel using 82 93 474 Removal tool.







3. Unplug the connectors.

To fit

1. Plug in the connectors to the ACC panel.







2. Fit the ACC panel.
