Refrigerant Pressure Sensor / Switch: Service and Repair

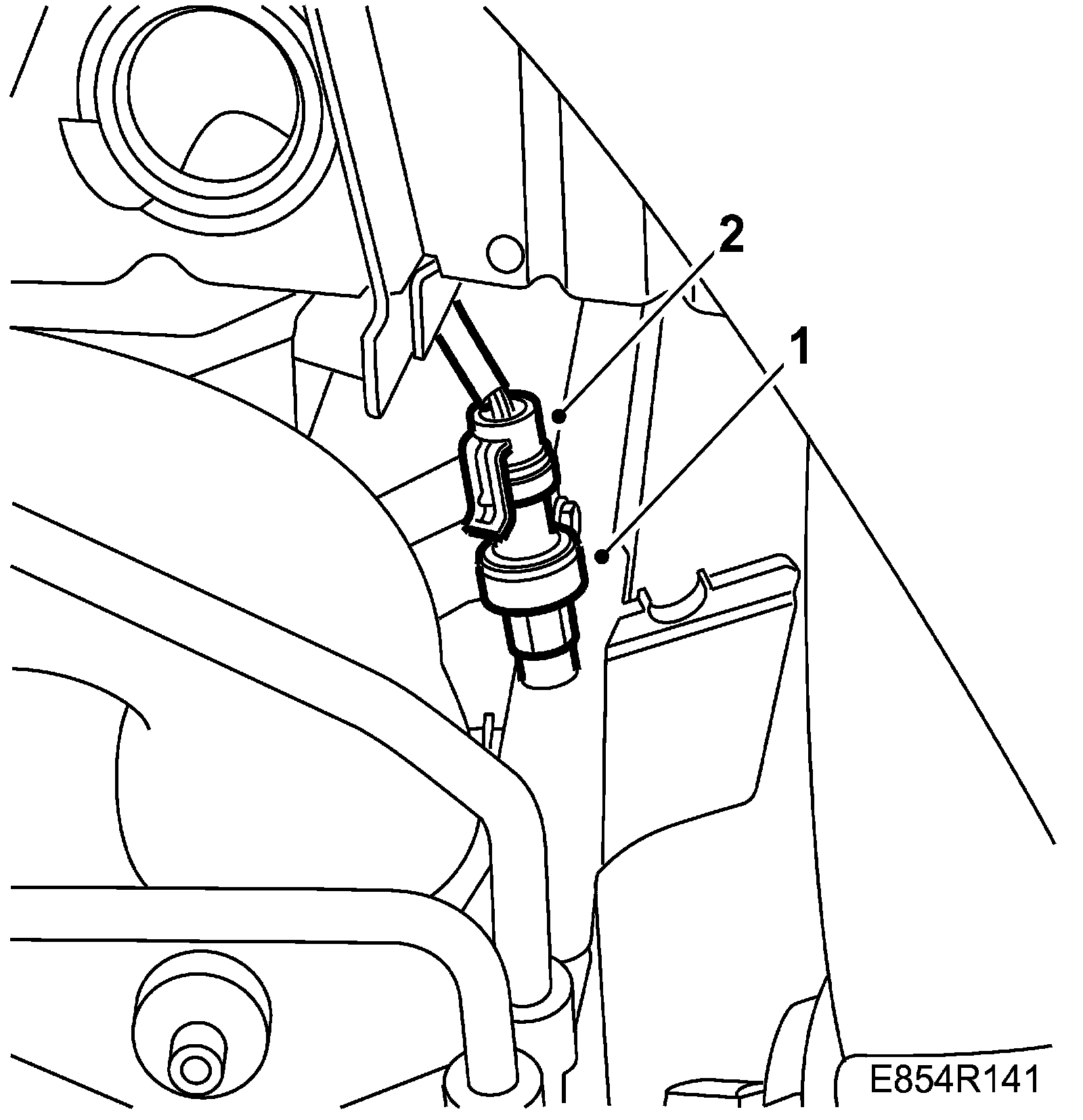

Pressure SensorTo remove 1.
Raise the car.
2.
Unplug the connector from the pressure sensor.
3.
Remove the pressure sensor.
To fit 1.
Fit the pressure sensor to the condenser.
Tightening torque: 7-9 Nm (5-7 lbf ft)
2.
Plug in the connector to the pressure sensor.
3.
Lower the car to the floor.
