Control Module Inputs



Control Module Inputs

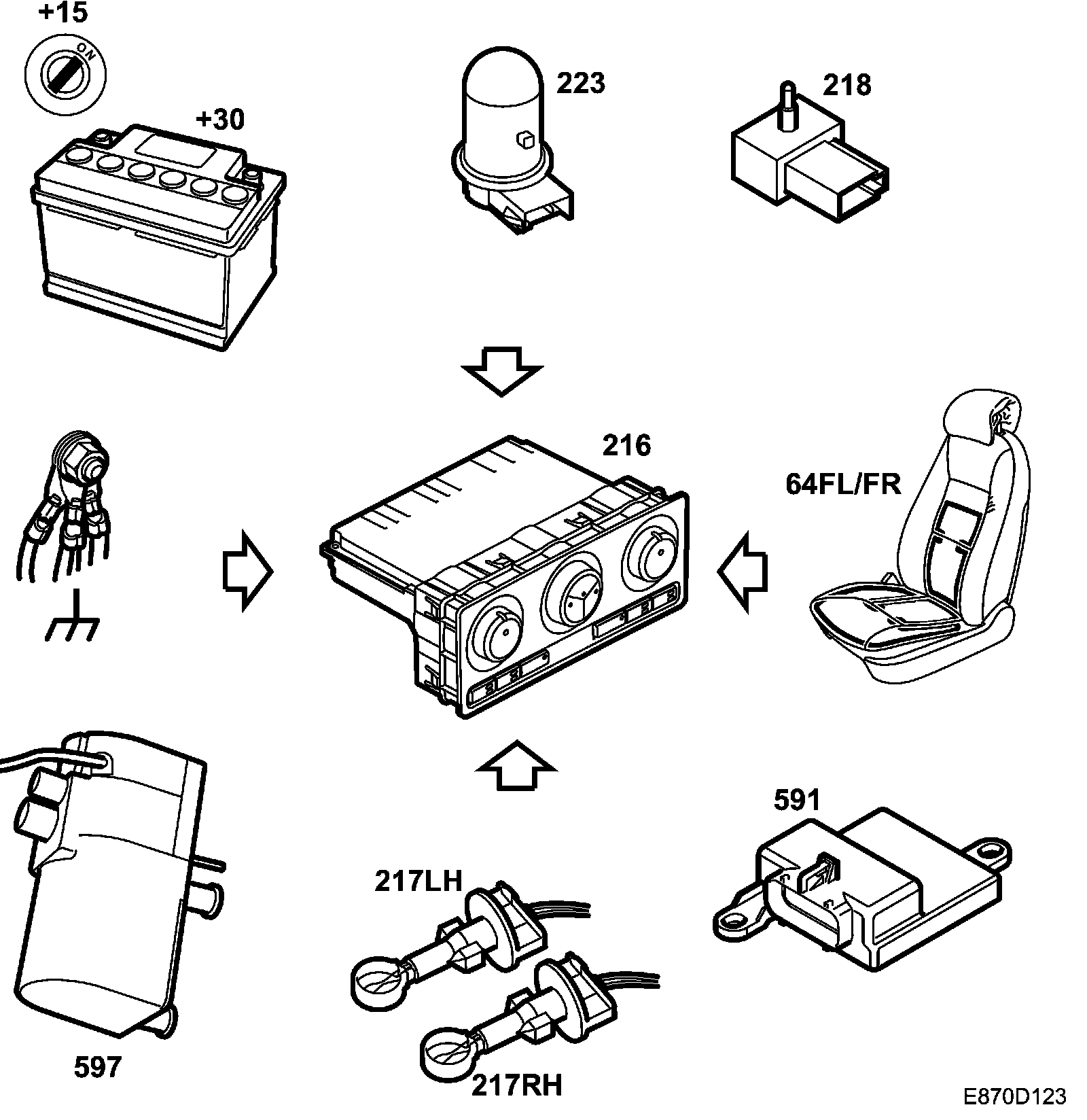

Control Module Inputs:






- Power supply +30.
- Power supply +15.
- Ground.
- Cabin temperature sensor (218).
- Mixed air temperature sensor, left (217LH).
- Mixed air temperature sensor, right (217RH).
- Solar sensor (223).
- Parking heater.
- Indicator lamps, PPS (612 a/612b)
- Temperature sensor, heating pad (254)
