Solar Sensor: Service and Repair



Solar Sensor

To remove

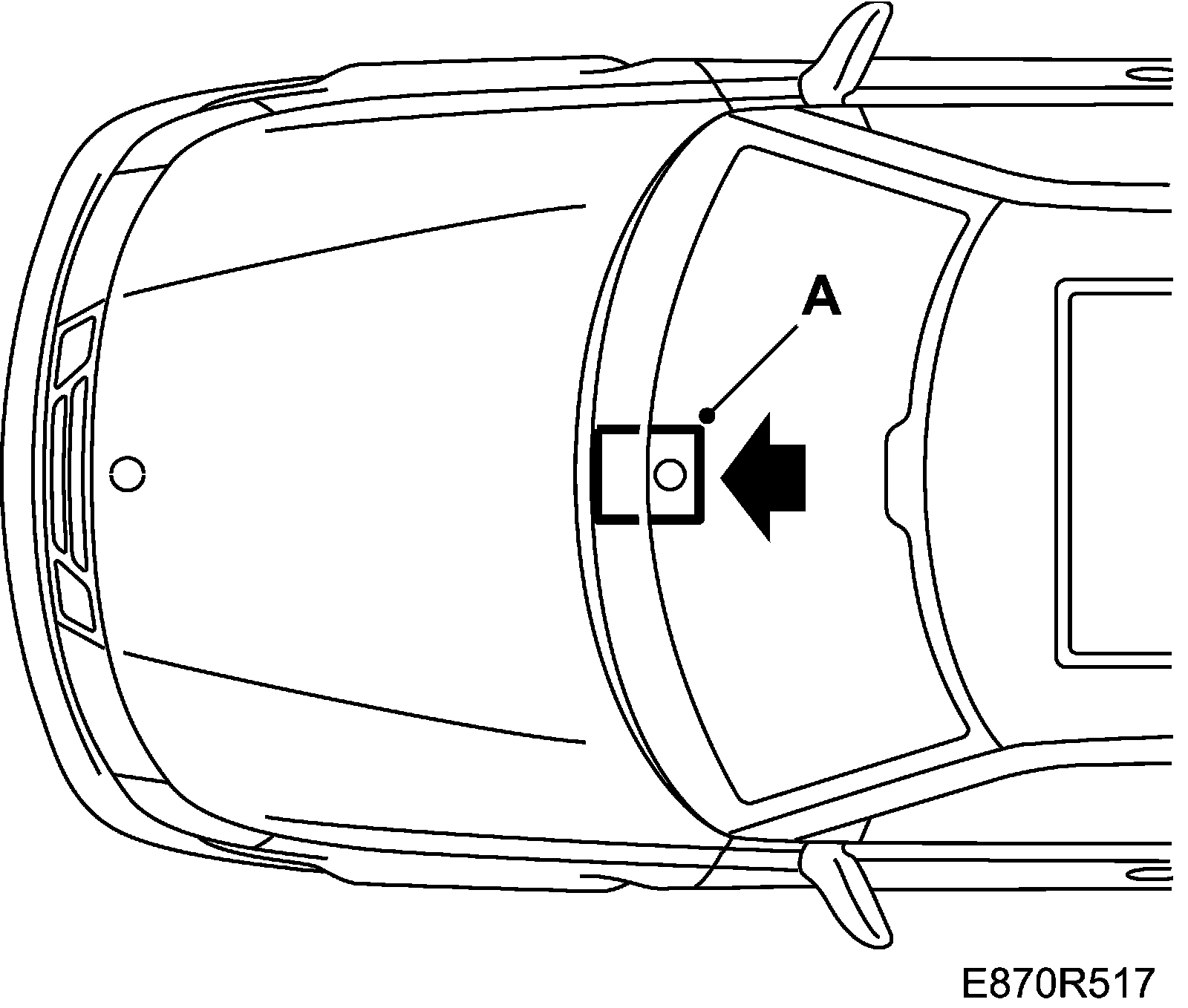

1. Remove the cover with solar sensor (A) by pushing it forward.

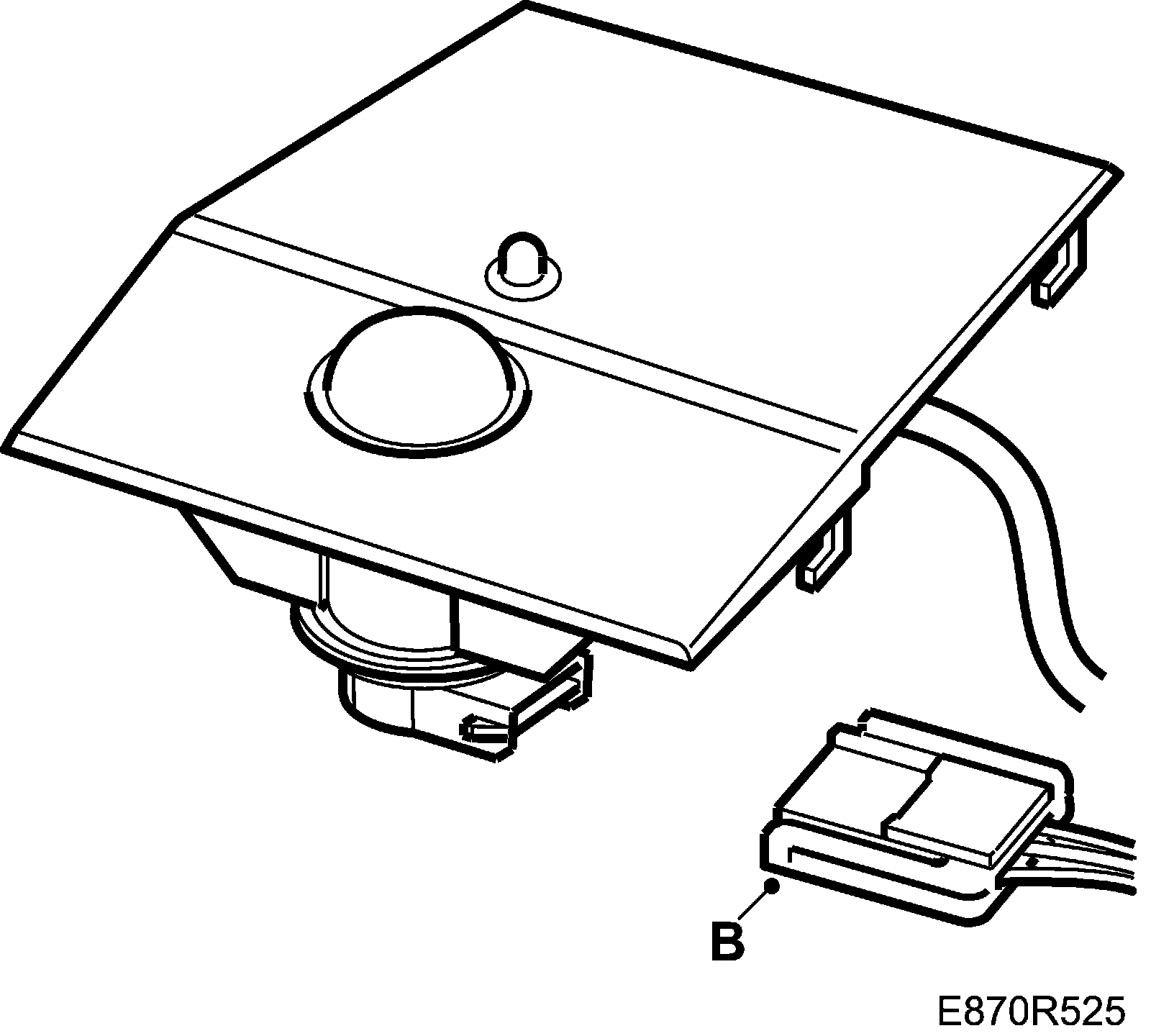

2. Unplug the connector for the sensor (B).







3. Undo the sensor from the cover by pressing in and turning.

To fit

1. Refit the sensor to the cover (B) by pressing and turning.







NOTE: The connector must always be to the right (also for RHD).

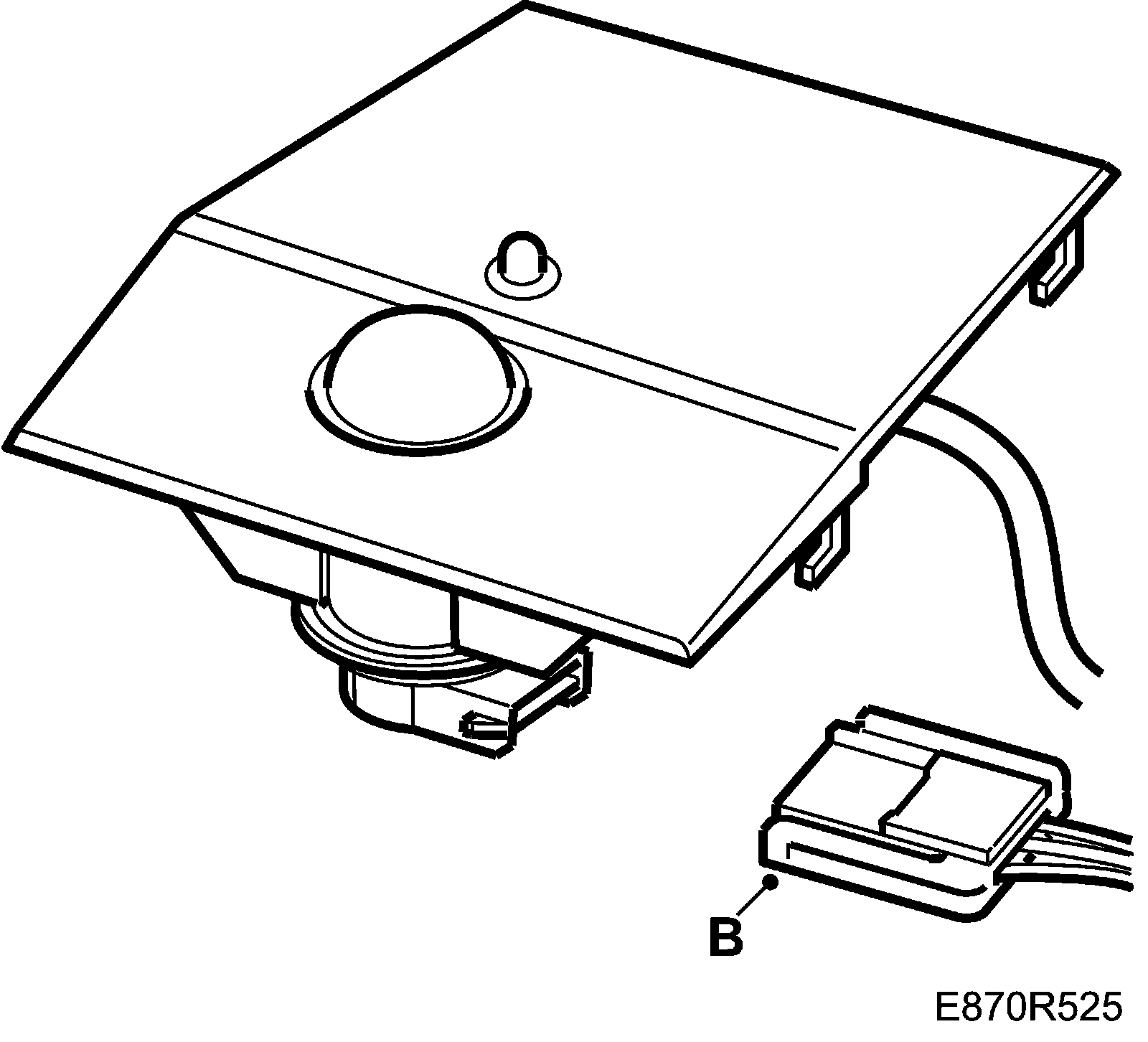

2. Plug in the connector for the sensor.

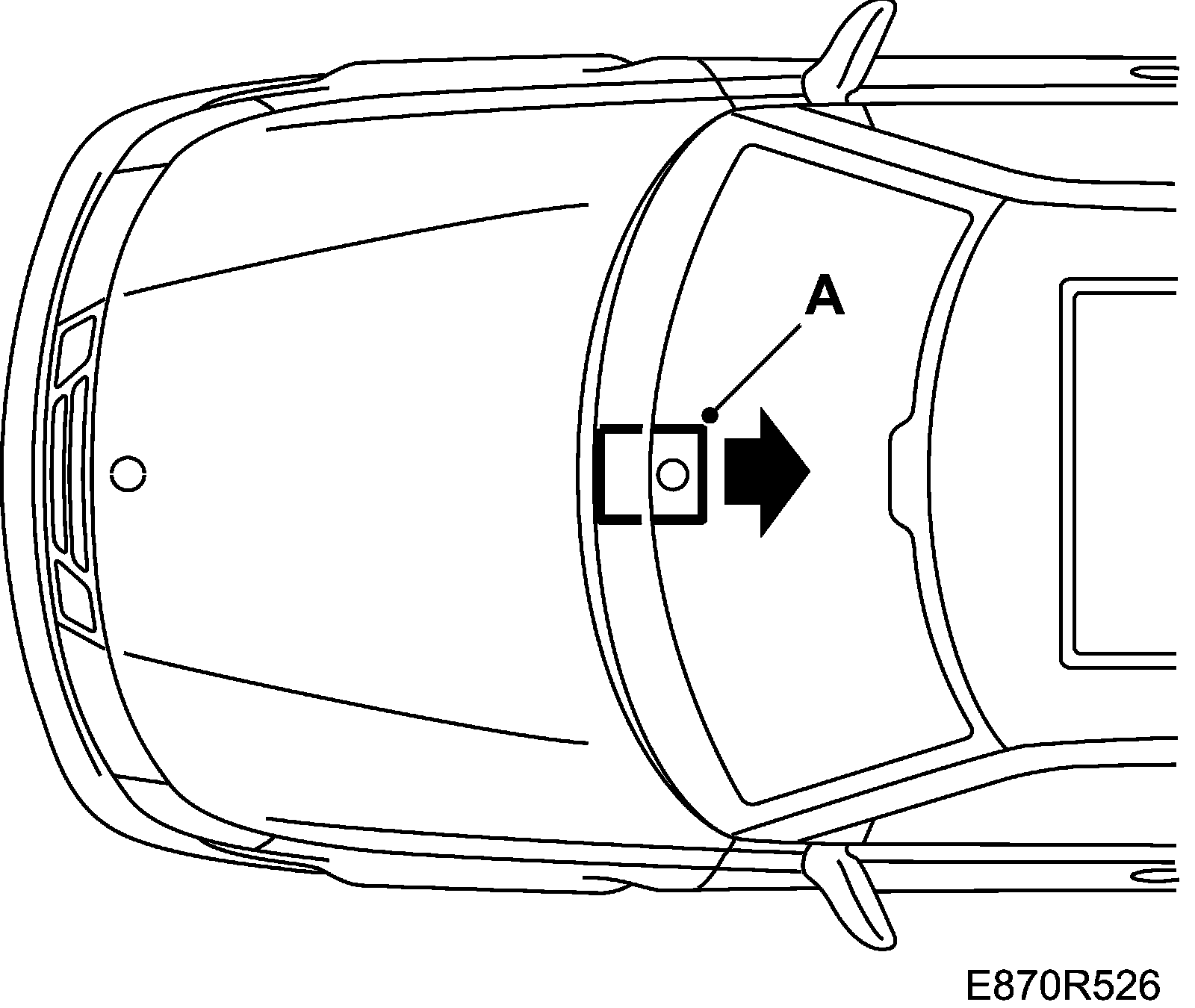

3. Fit the cover with solar sensor (A) by pushing it backward.







NOTE: The connector must always be to the right (also for RHD).
