Courtesy Lamp: Service and Repair

Luggage Compartment Illumination (5D)

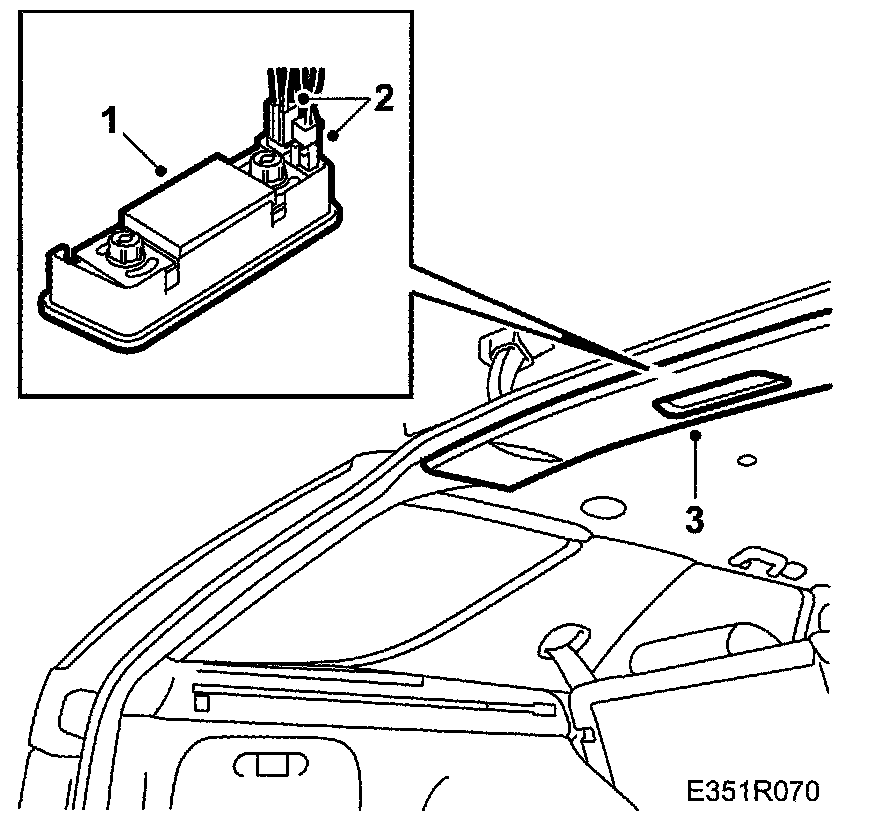

To remove
1. Pull loose the rear roof cover plate, which is fastened with clips.







2. Unplug the connector and remove the cover plate.
3. Remove the lighting by prising with a screwdriver in the recesses.

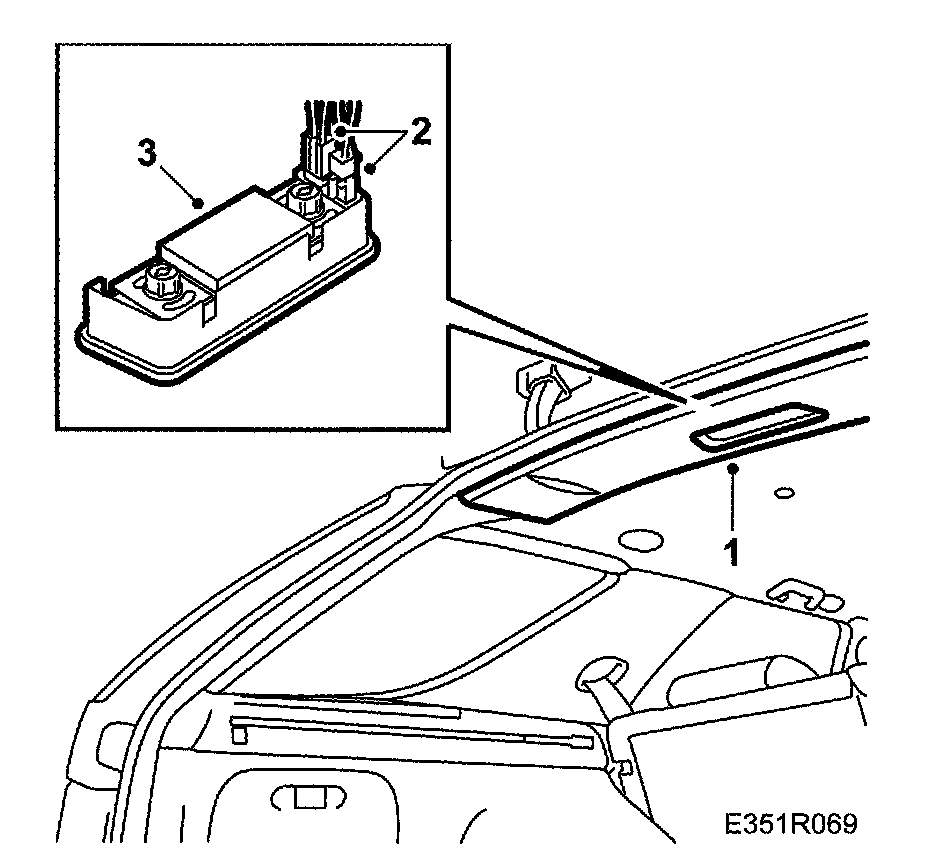

To fit







1. Fit the lighting.
2. Plug in the luggage compartment illumination connector and position the roof cover plate.
3. Press the roof cover plate into the clips.
Check the fit of the sealing strip over the cover plate.
