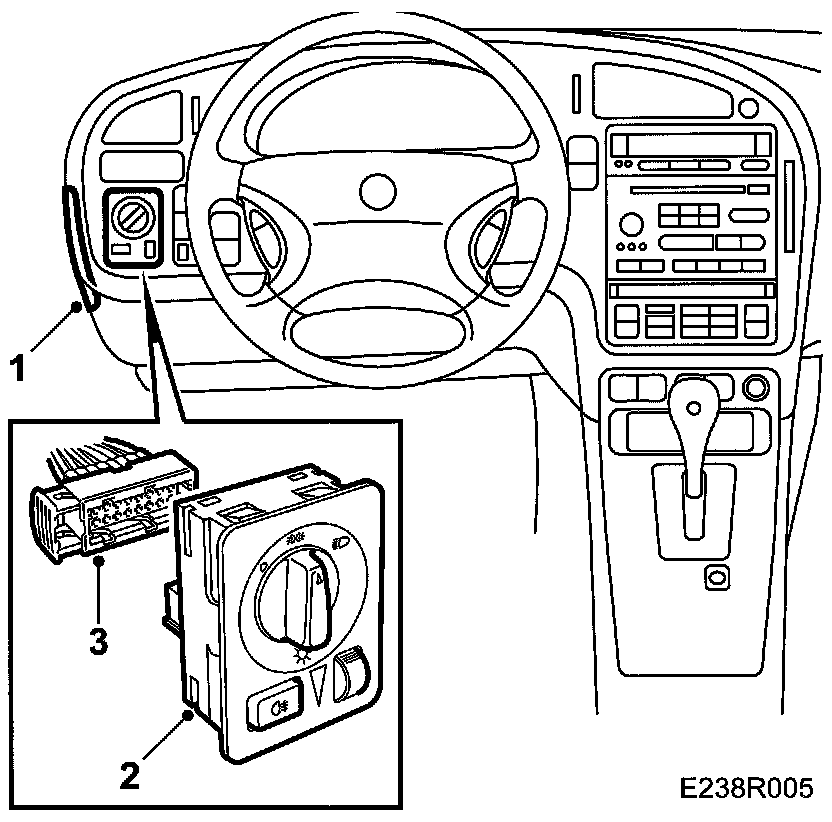

Light Switch
RheostatTo remove 1.
Open the fuse cover.
2.
Press out the lights switch.
3.
Unplug the connector from the lights switch.
To fit 1.
Plug in the lights switch connector.
2.
Fit the lights switch
3.
Refit the fuse cover.
Light bulbs 1.
Remove the rheostat as described above.
2.
Undo the lamp holder.
3.
Change the bulb
