Rear Load Angle Sensor

Load Angle Sensor, Rear

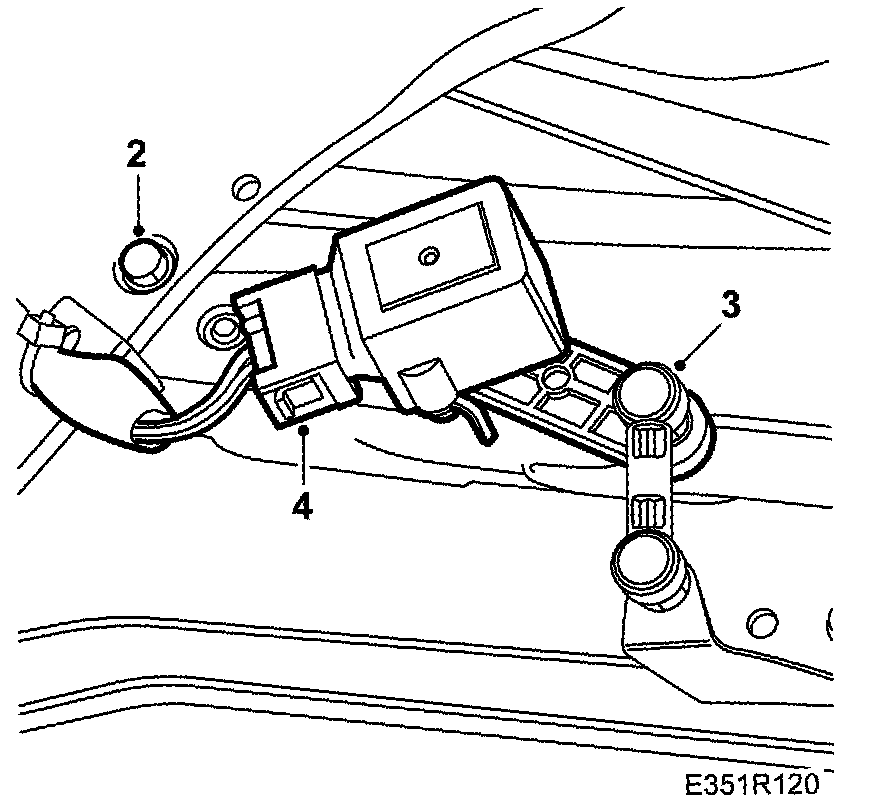

To remove
1. Raise the car.
2. Unplug the sensor.







3. Loosen the upper link arm ball joint.
4. Unscrew the level sensor and remove it with the bracket.
5. Remove the sensor from the bracket by undoing the screws.

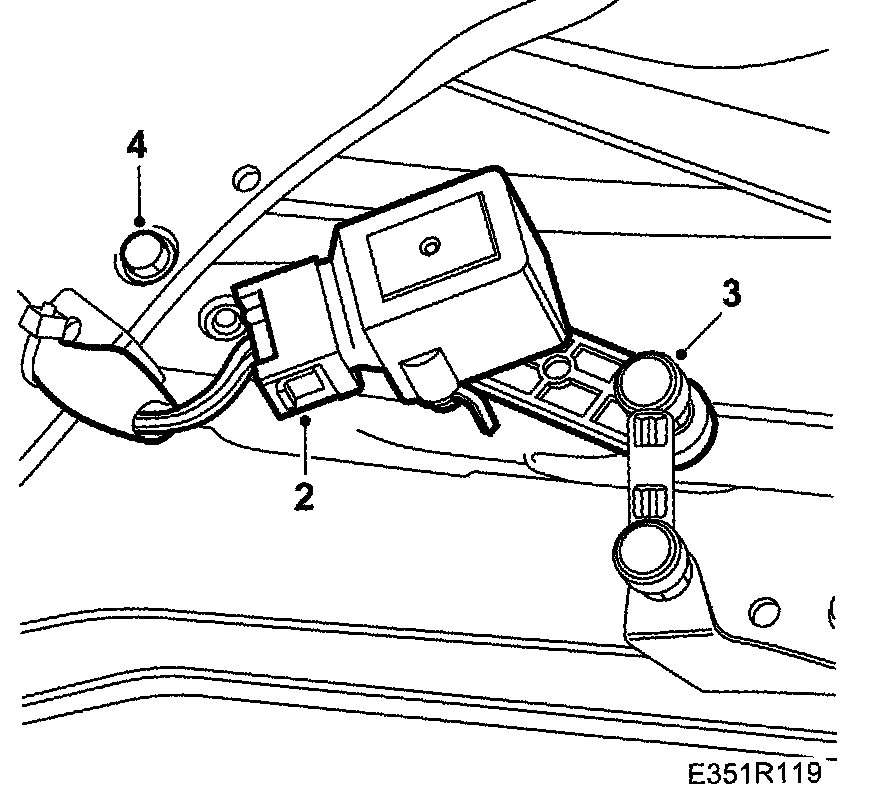

To fit
1. Fit the sensor to the bracket by screwing in the screws.







2. Bolt the bracket and level sensor into place.







3. Fit the link arm ball joint.
4. Plug in the connector.
5. Calibrate both AHL control modules, see Xenon lighting system, calibration.
