Map Light: Service and Repair

Spotlight Bulb

Changing

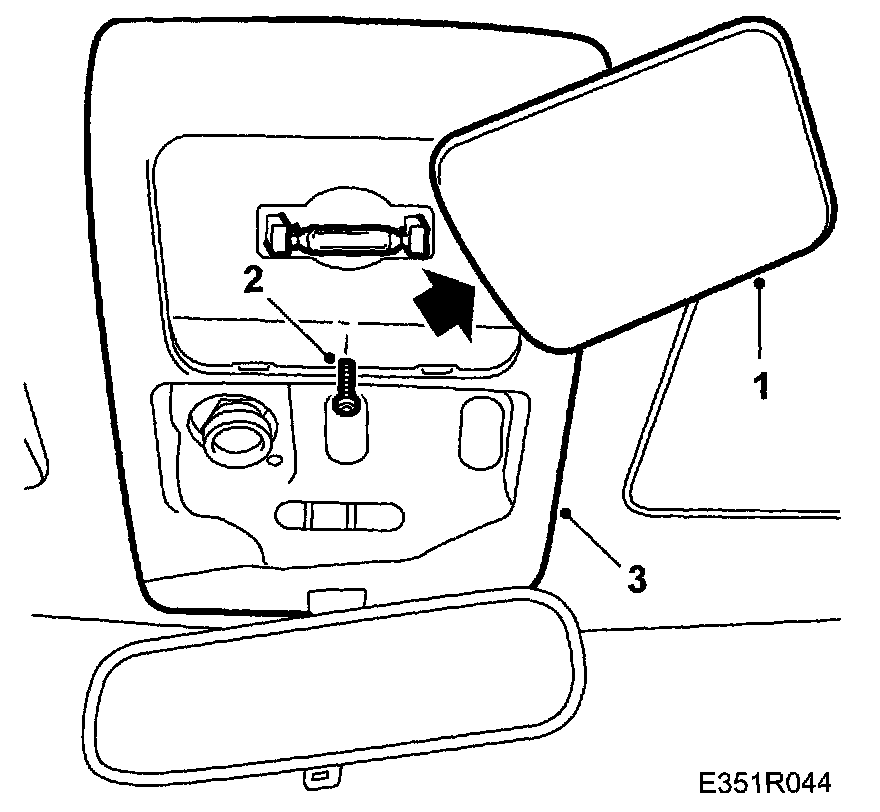

1. Remove the cover glass.

2. Remove the cover retaining screw.
3. Remove the temperature sensor and microphone from the cover (certain markets).
4. Remove the spotlight reflector by turning it anti-clockwise.

5. Change the bulb.
6. Fit the spotlight reflector by turning it clockwise.
7. Fit the temperature sensor and microphone to the cover (certain markets).
8. Fit the cover and retaining screw.
9. Fit the cover glass.
