SID Module-Lighting

Readings, Control Module Connections, Xenon Headlamps







Scope
This section contains the readings and instructions for measuring voltage levels on the SID unit.

Remember
^ Note the test conditions and use common sense when assessing the test result.
^ First check that the control module has a power supply and is grounded.
^ Then check all sensor inputs and signals from other systems.
^ Lastly, check the control module outputs. Remember, the test values do not say anything about whether or not the actuator is in working order.
^ If a reading is incorrect, consult the wiring diagram to trace the leads, connectors or components which should be checked more thoroughly.

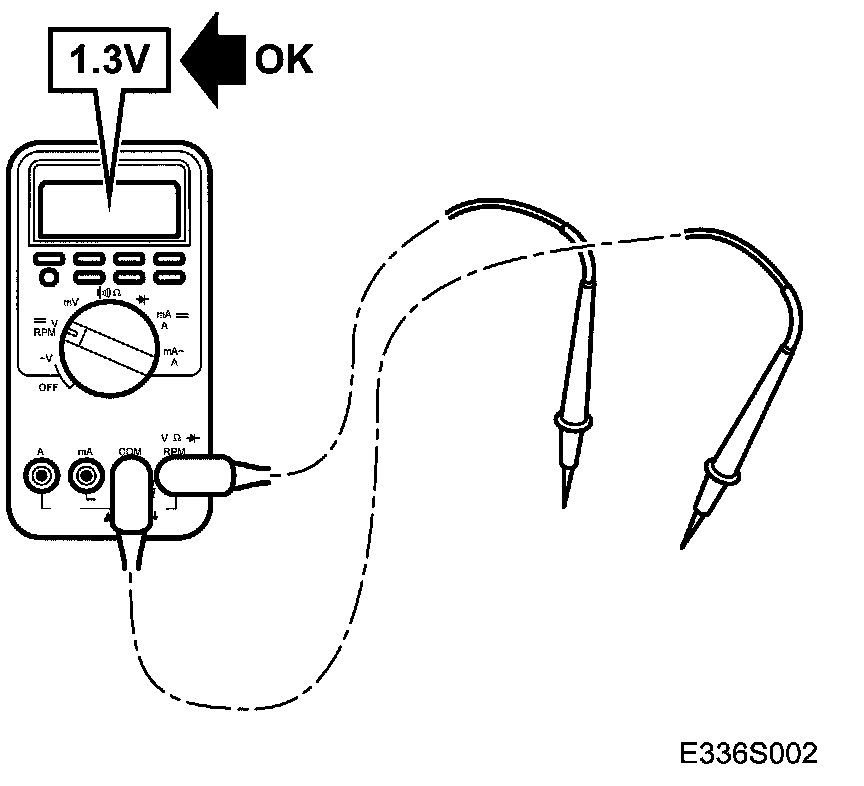

^ The specified test readings refer to those obtained with a calibrated Fluke 88/97.
^ The test readings show the signal's pulse ratio and pulse width. A test instrument with pulse ratio and pulse width measurement must be used. The sign indicates a positive trigger pulse, TRIG+.







Control module connection

Headlamp, LH (663FL)

Headlamp, RH (663FR)

Pin No.1-2:

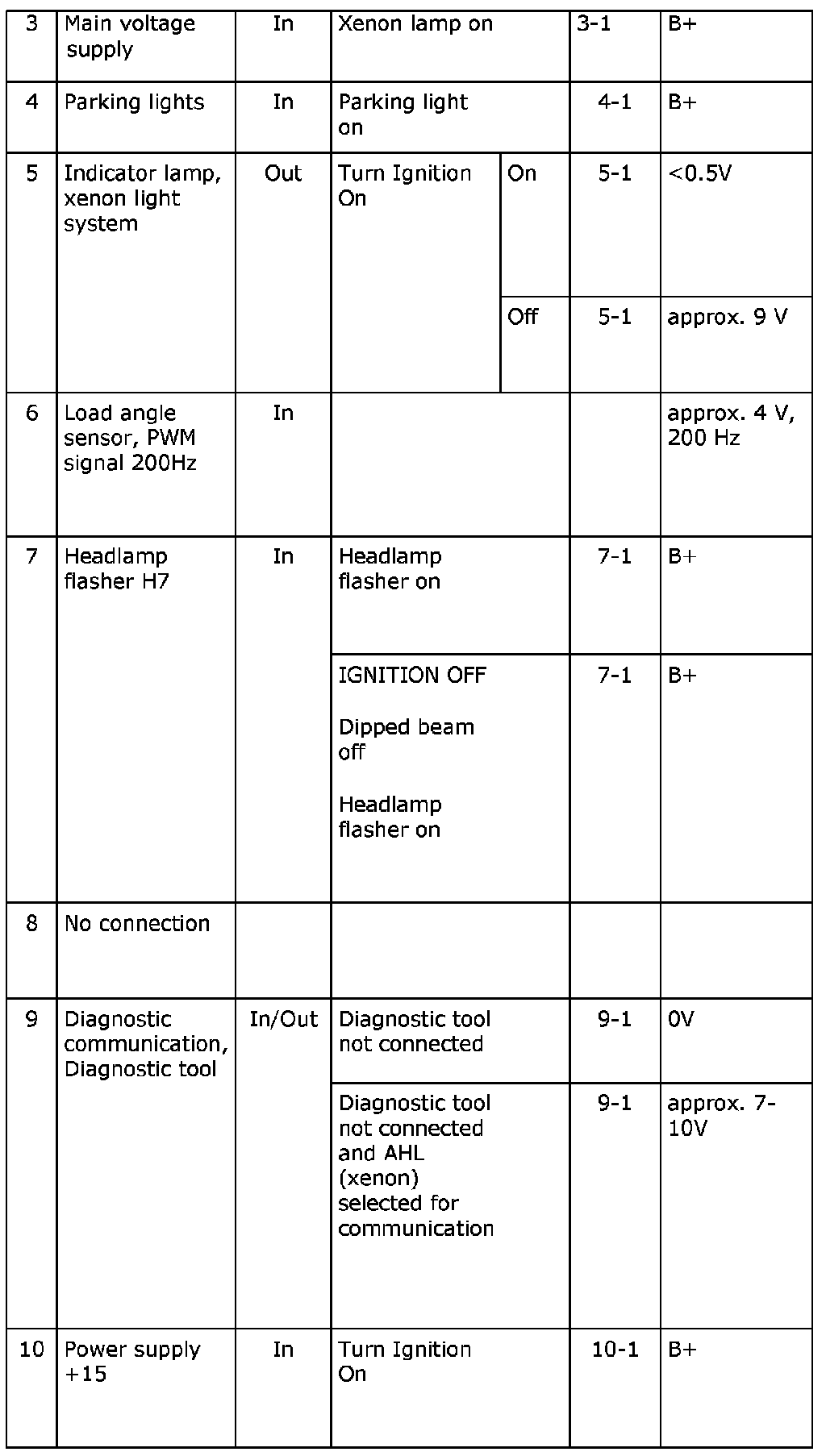

Pin No. 3-10:
