Check Fluid Level

Check fluid level

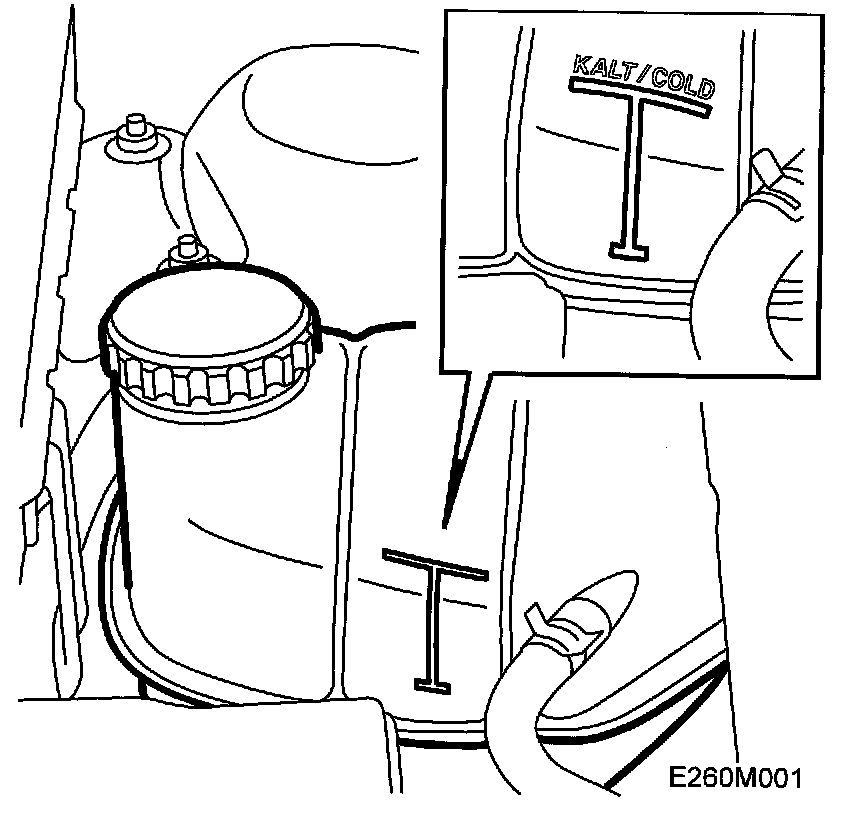

Coolant
Check the level and top up as necessary with equal amounts of SAAB Original Coolant and water (half and half).

This mixture also provides effective corrosion protection.

Avoid mixing different types of coolant.

Do not fill up above the MAX mark.

In the event of coolant loss, investigate the cause.

Important: Screw the filler cap down hard or the system will not be pressurized, resulting in a lower boiling point and loss of coolant.

Brakes, clutch





Check the level and top up as necessary.

Brake fluid:
Grade to DOT 4 specification.
