Vehicle Lifting: Service and Repair
Lifting And Attachment Points

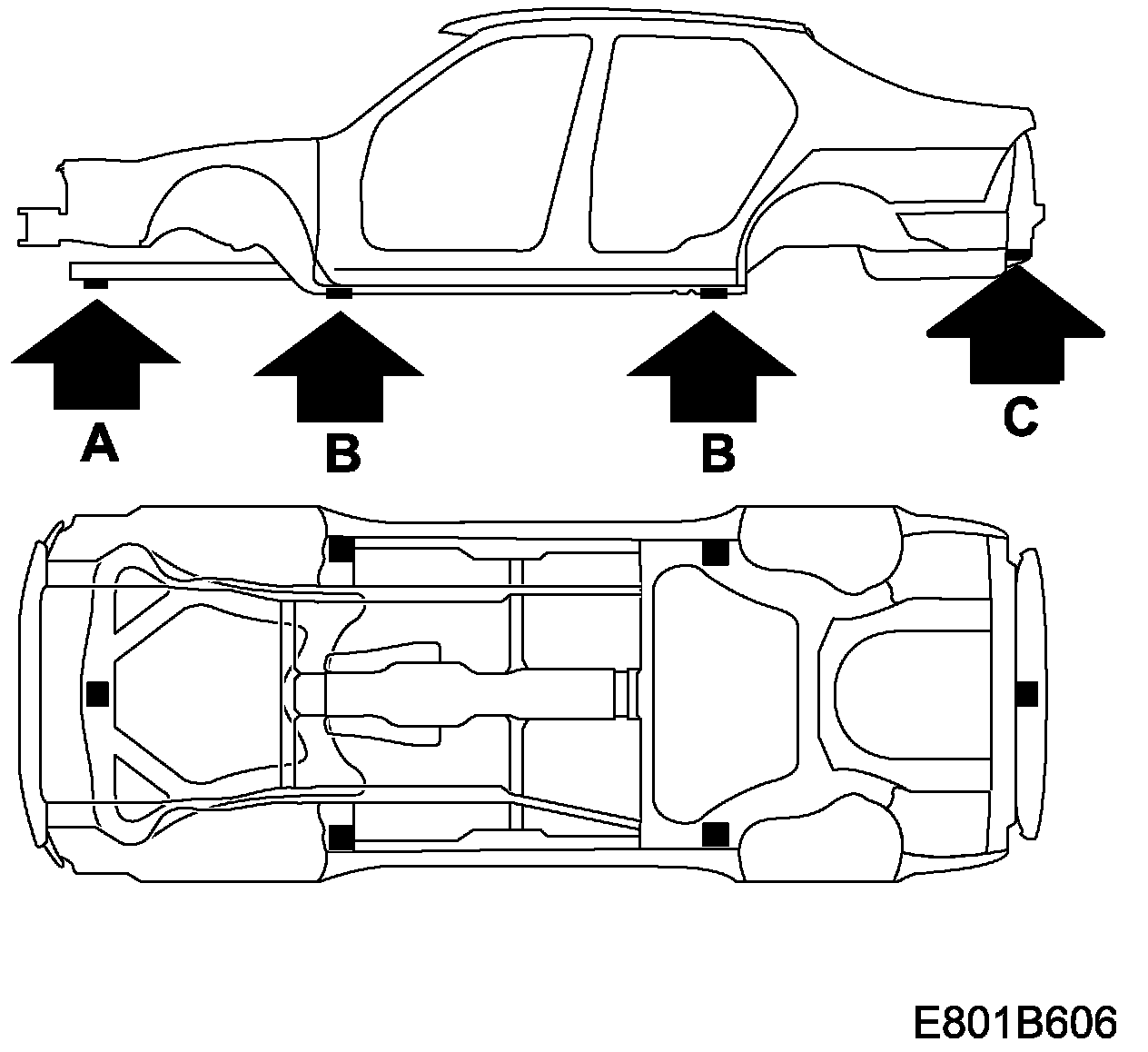

Exercise care when positioning a car on a lift or when using a jack. The following illustration shows the lifting and attachment points to be used:
A. Centered under the front subframe at the front towing eye mounting.
B. At the jack brackets under the scuff members.
C. Under the rear towing eye or under the towbar, if fitted.
WARNING: If incorrect lifting or attachment points are used, the car may be displaced or fall from its raised position, which may result in serious damage to the car or serious personal injury.
IMPORTANT: Do not lift the rear end of the car under the spare wheel well or rear axle as this can cause serious damage to the car.
