Fuse Board 501 For Maxi Fuses In Engine Bay

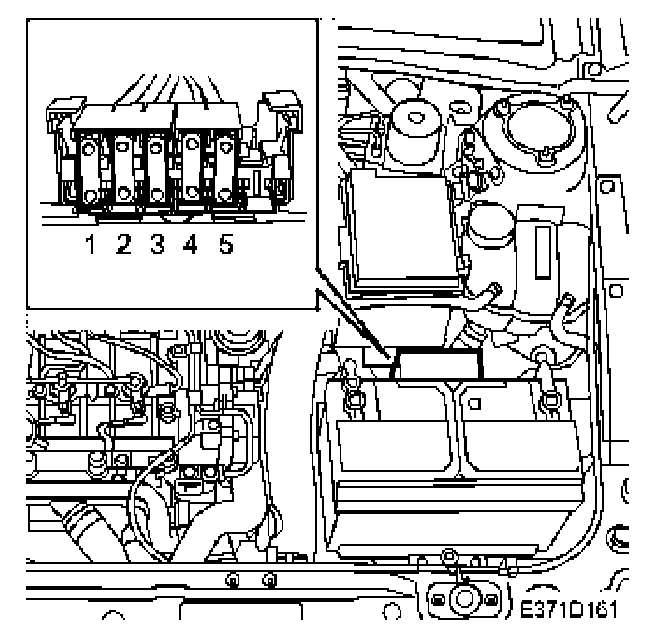

Fuse box 501 for maxi-fuses in the engine bay Cars with battery fitted transversely
Location: Behind the battery.
Battery Fitted Transversely:
Cars with battery fitted longitudinally
Location: under battery cover
Battery Fitted Longitudinally:

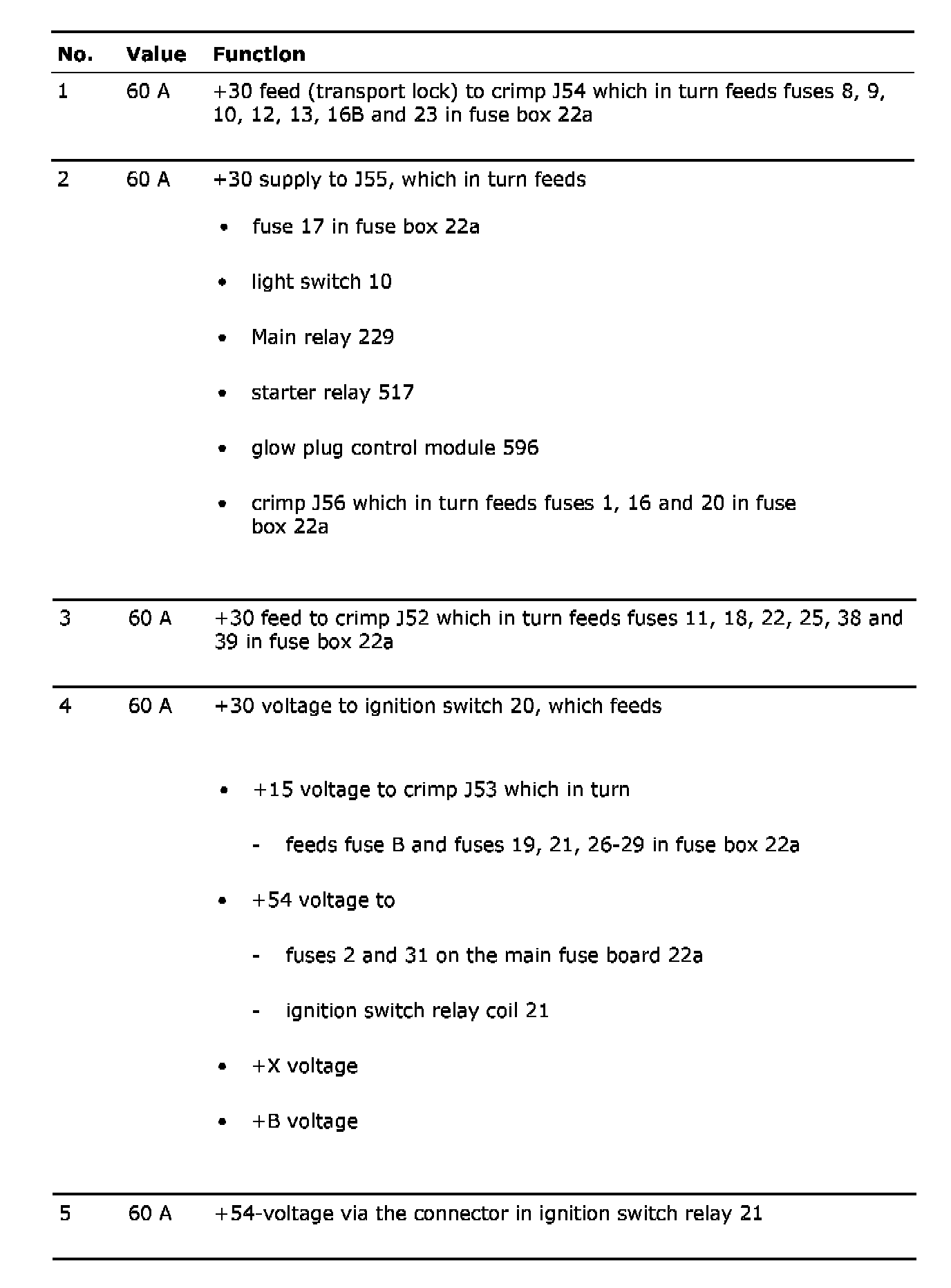

List Of Components:
